Ce Stationary Loading Dock Leveler Hydraulic Car Ramps for Container Electric Powered
Shandong Lift Machinery Co., Ltd.- Load Capacity：8ton
- Lifting Height：0.55m
- Foldable：Foldable
- Material：Steel
- Certification：ISO, CE
- Usage：Fixed Loading and Unloading Hydraulic Dock Leveler
Base Info
- Model NO.：YZXQ10-0.55
- Protection：2 Bumper Block
- Power：Electric
- Warranty：24 Months
- Work Platform：Anti-Skid Checkered Steel Plate
- Feature：Easy Operation, Safety, Convenience
- Table Size：2000X2000mm or 2500X2000mm
- Safety Device：Explosion Proof Lock Valve
- Transport Package：Iron Case or Nude
- Trademark：SDLIFT
- Origin：Shandong China
- HS Code：84289090
- Production Capacity：5000 Set Per Year
Description
Pit size (m)
UP
DOWM
L
W
H
YZXQ6-0.55
6000
2m*2m
0.4
0.3
0.25
1.1
2.08
2.04
0.6
YZXQ8-0.55
8000
2m*2m
0.4
0.3
0.25
1.1
2.08
2.04
0.6
YZXQ10-0.55
10000
2m*2m
0.4
0.3
0.25
1.1
2.08
2.04
0.6
YZXQ6-0.7
6000
2.5m*2m
0.4
0.4
0.3
1.1
2.58
2.04
0.6
YZXQ8-0.7
8000
2.5m*2m
0.4
0.4
0.3
1.1
2.58
2.04
0.6
YZXQ10-0.7
10000
2.5m*2m
0.4
0.4
0.3
1.1
2.58
2.04
0.6
Description:
1. High quality hydraulic cylinders.
2. Anti-blowout high-pressure tubing
3. Protector steel plates on both sides
4. Two pieces rubber protective pad
5. 10# "I"-beam reinforcement ribs design under the deck
6. 10# U steel for Chassis
7. Lip thickness: 14mm and above cover 3mm thickness checkered steel plate.
8. Deck thickness: 6mm thickness checkered steel plate
9. The lip and deck connected by long shaft hinge, make it high strength and long life.

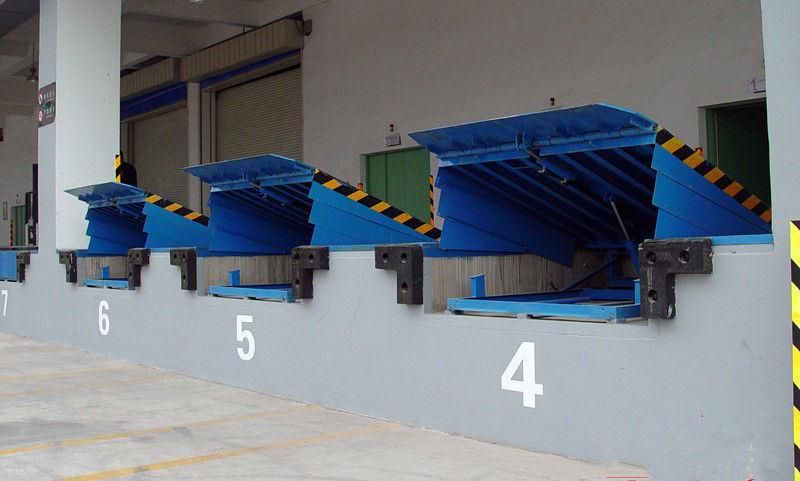

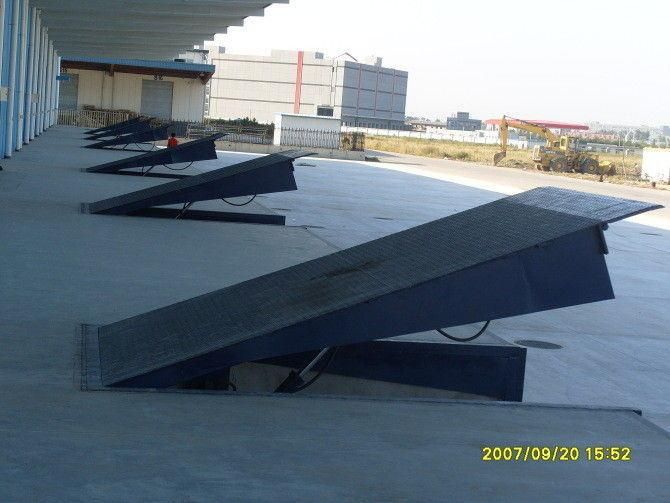

Dock levelers and Sketch Map:
Our services:
1) We can design Fixed Loading and Unloading Hydraulic Dock Leveler as per your requirement.
2) The most suitable Fixed Loading and Unloading Hydraulic Dock Leveler will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
