Forklift Loading Platform Loading Ramp

GUANGZHOU PANYU QIANGYE MACHINERY CO., LTD.
  • After-sales Service:Video Support
  • Warranty:1 Year
  • Load Capacity:5t
  • Lifting Height:2m
  • Foldable:Not Foldable
  • Material:Steel

Base Info

  • Model NO.:11000
  • Certification:ISO, CE
  • Weight:3500kg
  • Transport Package:Nude Cargo
  • Specification:11500× 2280× 1300-1750mm
  • Trademark:Qiangye
  • Origin:Guangzhou, China
  • HS Code:7326909000
  • Production Capacity:100PCS,Years

Description

Basic Info.

Model NO. 11000 Certification ISO, CE Weight 3500kg Transport Package Nude Cargo Specification 11500× 2280× 1300-1750mm Trademark Qiangye Origin Guangzhou, China HS Code 7326909000 Production Capacity 100PCS/Years

Product Description

Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: QIANGYE
Model Number: FR10400
Lift Mechanism: Lift Chain
Lift Drive / Actuation: Electric Motor
Power: Optional
Rated Loading Capacity: 10000kg
Min. Lifting Height: 0.9m
Max. Lifting Height: 1.8m
Table Size: 2.08m*11m
Overall Dimensions: 11500*2280*(1300-1750)mm
Weight: 3600kg
Certification: CE ISO
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas
Product Name: Forklift Container Loading Ramp
Material: IRON
Usage: NEW
Width: 2.08m
Length: 11m
Adjusting height range: 0.9m to 1.8m
Design: According to customers' requirements
Packaging & Delivery
Packaging Details1. Outside package: Standard export wooden cases
2. Inner package: Stretch film
Delivery TimeShipped in 30 days after payment

Product Description
Best Price Height adjustable mobile loading ramp for container

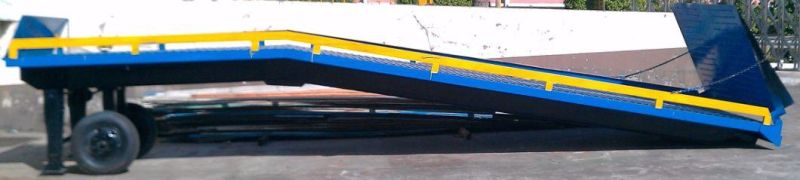

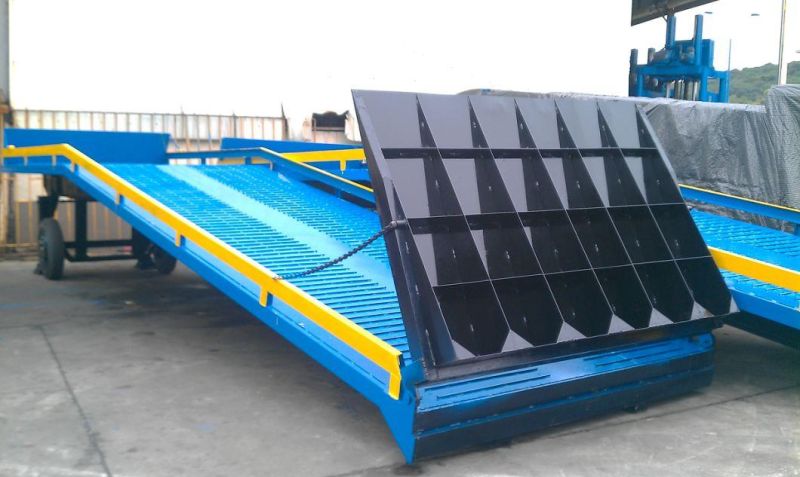

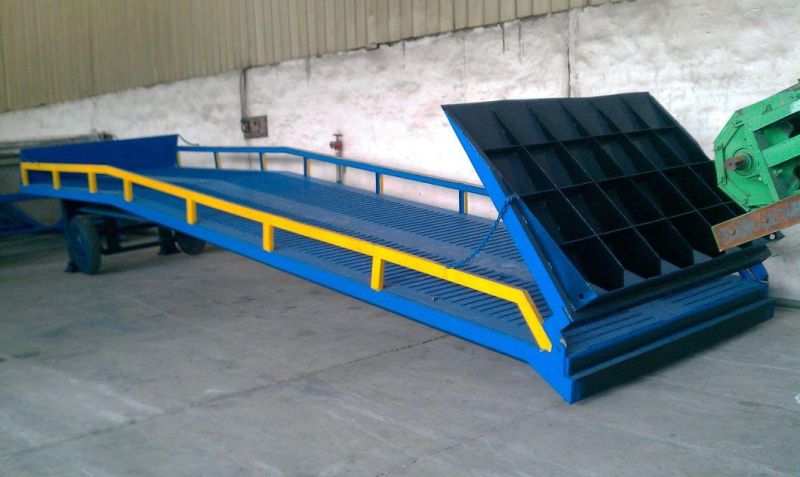

Height adjustable mobile loading ramp for container
Product Introduction:

This series loading ramp is used loading dock ramp are container loading ramp, they are mainly used in cargo table ithout handling facilities and moving handling place, and a it is an auxiliary equipment of cargo handling used together with forklifts, and also its lifting height is adjustable according to the height of car compartment. With the assistance of the loading ramp, forklift can directly drive into the car compartment to carry out batch handling and greatly improving the efficiency and safety of loading &unloading cargo.


Main Feature:

A. Triangle structure of guardrail is more stable, uniform stress.
B. The chain can maintain stable.
C. Both forklift suspensive board and floor have antiskid plate.
D. Manual power or electricity power is for your choice.

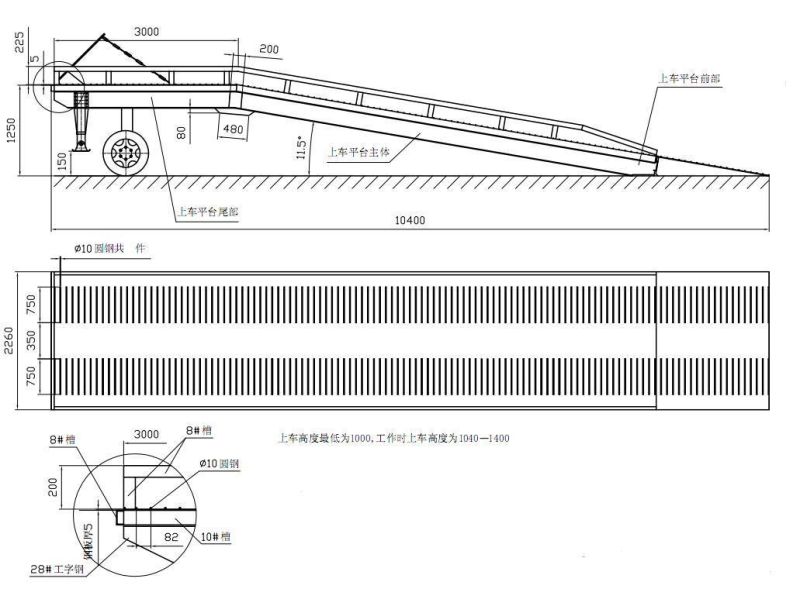

E. The regular model of this loading ramp is: Width-2.08m, length-11m, adjusting height range-0.9m to 1.8m. And it also can be designed and produced according to customers' requirements.
