• Model NO.：YZCQ10-0.9
• Warranty：24 Months
• Power：Hand Pump
• Rated Loading Capacity：6000 - 15000kgs
• Min. Lifting Height：0.9m
• Max Working Grade：13°
• Max. Lifting Height：1.8m
• Feature：Easy Operation, Safety, Convenience
• Transport Package：Iron Case or Nude
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：1000 Units , Year

Model No.

Capacity

(kg)

Length

(mm)

Width

(mm)

Min. Height

(mm)

Max. height

(mm)

Lift system

YZCQ6-0.9

6000

10500

2080

900

1800

hand pump or electrical

YZCQ8-0.9

8000

10500

2080

900

1800

hand pump or electrical

YZCQ10-0.9

10000

10500

2080

900

1800

hand pump or electrical

YZCQ12-0.9

12000

10500

2080

900

1800

hand pump or electrical

YZCQ15-0.9

15000

10500

2080

900

1800

hand pump or electrical

Advantage:

1) Competitive price

2) Reliable quality

3) Good service, keep innovations

4) Easy operation with hand pump

5) Adjustable safety chain

6) High strength meshwork steel

7) Heavy-duty formed steel side girders

8) Collocate ding brake cushion

9) With strong landing leg for supporting load and unload

Operation:

1. Fasten the return valve (screw the return valve clockwise) and press the hand pump to lift the ramp over container soleplate, then unfold the landing legs to working height.

2. Release the return valve (screw the return valve counterclockwise), and the ramp will fall down onto the container soleplate, then fasten the ramp and container with chains.

Please keep the hydraulic system and ramp tyres no bearing loading weight.

3. Loading or unloading work starts.

4. After work, untie the fixing chains. Lifting the ramp by the hand pump, then drive out the container.

5. Uplifting the after body of the ramp by a forklift, then to move it around the yard, or towed it away by a truck for long-distance moving.

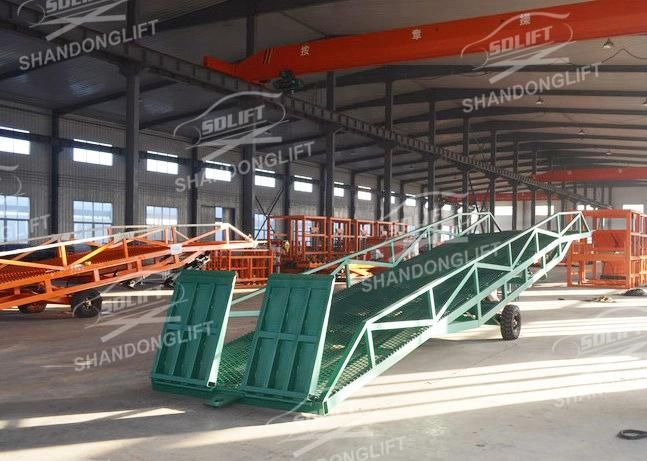

Factory Products:

Our services:

1) We can design Mobile Dock Ramp Hydraulic Lift Ramp Adjustable Loading Dock Ramp as per your requirement.
2) The most suitable container loading ramp will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
