• Model NO.：WL-D-880-1150,1250
• Certificate：Ce
• Own Weight：135kg
• Loading Capacity：350kg
• Rated Voltage：DC 12,24V
• Maxing Lifting：880mm
• Transport Package：Wooden Case
• Specification：720*1150,820*1250mm
• Trademark：xinder
• Origin：China
• HS Code：8708999990
• Production Capacity：10000sets,Year

Basic Info.

Model NO. WL-D-880-1150/1250 Certificate Ce Own Weight 135kg Loading Capacity 350kg Rated Voltage DC 12/24V Maxing Lifting 880mm Transport Package Wooden Case Specification 720*1150/820*1250mm Trademark xinder Origin China HS Code 8708999990 Production Capacity 10000sets/Year

Product Description

INTRODUCTION

The WL-D series wheelchair lifts are designed for installation in the side or rear
doors of domestic full-size vans, three standard models ensure that there is a lift to
fit your needs. With dual hydraulic lifting arms, you'll come to rely on the lift's
strength and dependability day after day, year after year.
1.The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control.
2.The wheelchair lift is designed to make your travels more enjoyable, each lift features XINDER's new design to ensure the quietest possible riding environment.
3.There are three types of the lifts:
WL-D-880 The lift with a whole piece of platform
WL-D-880U The lift with a unique "fold-in-half" platform
WL-D-880S The lift with a split platform
4.CE certificated
5.Compact design
6.Powerful hydraulic system ensures quiet, smooth, stable and easy operation.
7.Automatic inboard and outboard roll stops
8.Welded high strength all-steel frame
9.Double coatings with electrophoretic coating and powder coating for best corrosion prevention
10.Non-slip platform
11.Built-In manual backup system
12.Sound alarms during operation
13.Interlock function with door operation
14.Permanent no-lube bearings at all major pivot points
15.Lifting capacity: 350Kg

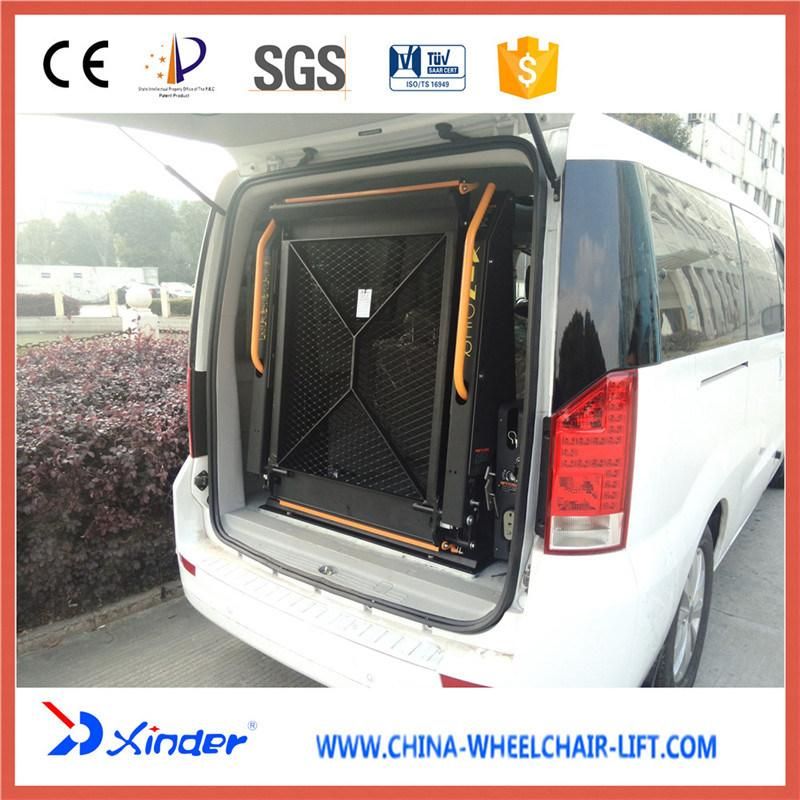

 WL-D-880 Wheelchair Lift

This automatic wheelchair lift offers you dependable accessibility while its trim,
compact design maximizes valuable interior space. The lift also features a strong
durable steel frame built to give you years of dependable service.
