Grey-on-Green PVB Film Interalyer for Auto Safety Glass

Qingdao Haocheng Industrial Co., Ltd.
  • Type：Windshield
  • Function：Frost Prevention
  • Glass Composition：Silicon Oxide
  • Certification：ECE, ISO
  • Glass：Laminated Glass
  • Mgnt Certification：ISO14001

Base Info

  • Model NO.：PVB interlayer
  • Main Market：South America
  • Raw Material：100% Polyvinyl Butyral Resin & 3go
  • Colour：Blue on Green
  • Thickness：0.76mm
  • Length：200m,Roll
  • Width：660-1900mm
  • Certificate：CE,SGS,ISO9001
  • Visible Light Transmittance：80% Min
  • Haze：0.4%
  • Moisture Content：0.35-0.55%
  • Tensile Strength：Min 20MPa
  • Transport Package：Plywood Box or Fiber Can
  • Specification：Customized
  • Trademark：JIAHUA
  • Origin：China
  • HS Code：3920910001
  • Production Capacity：60rolls,Day

Description

Thickness0.76mmAppearanceSurfaceSmooth surface without Nick,Crease,Bond; The color band should be evenly distributed and the width of transitional region is equalizedBand ColorClear, Blue,Green ,Gray & othersCrystallite and watermarksVisible defects (impurities, bubbles, oil, drop etc.)Roughness Rz15 -70Moisture content (%)0.35 - 0.55Heat shrinkage rate
( 60ºC/15min) (%)Pummel value7 MaxLight transmittance (%)85 MinHaze (%)0.2 - 0.4UV Screening, up to 380nm (%)99Tensile strengthTensile elongation (% )200 MinYellowness index (%)10 Max*Intensive defects area: Within the 300mm diameter circle, the defect numbers is over 10 and its interval less than 5 mm. Company ProfileGrey-on-Green PVB Film Interalyer for Auto Safety Glass

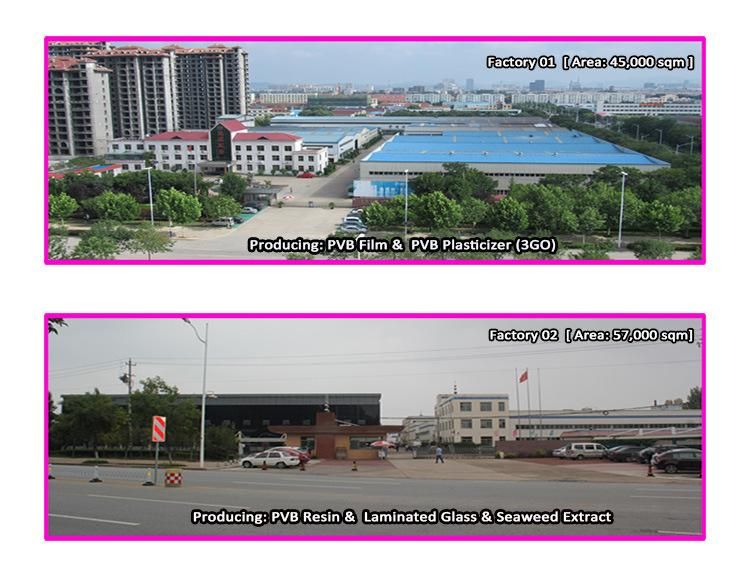

Qingdao Haocheng Industrial Co., ltd. is a professional manufacturer and engaged in the research & production, sale and service of  PVB resin, PVB film interlayer, PVB plasticizer (3GO) and Float laminated glass sheets. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Going with company development, we are looking for new team of partner with strong integrity to join us to enjoy our business together.
 Product PackageGrey-on-Green PVB Film Interalyer for Auto Safety Glass
Packing: The pvb film is rolled by insulated PE film and then wrapping film, cased into an aluminum foil bag by vacuum sealed, and then packing into plywood box or fiber can. (remark: The width is less than 1250mm, which can be packing into fiber can)

Transportation: There should no direct sunlight, drench, and violent shaking during the transportation.

Storage: Be stocked in cleanhere should be quality certificate, packing list in the package. The marks of moisture proof, shock proof and sunlight proof should be labeled.

Automobile grade
Thickness   length   clear width    shade width
0.76mm     200m   600-1600mm   0-230mm
1.52mm     100m   600-1600mm   0-230mm
 FAQ

1.  Q: Can I have a sample order?

     A: Yes, Sample is free if you  agree to share the international express charges.

          Contact Us and tell me your requirement of the product you want.

2.  Q: What is the lead time for sample?

     A: Existing sample is free and customized sample needs about 1 weeks;

3.  Q: What express do you often use to send the samples?

     A:  Any express is available,it depends on your requirement;

4.  Q: Do you have any MOQ limit?

     A:  It depends on the size and color;

5.  Q: What's your acceptable payment term?

     A:   T/T or L/C. It due with T/T, that we will request 30% T/T deposit and 70% T/T against the B/L copy.
