• Model NO.：DN-880U-1150
• Volt：12-24V
• Max Lifting Height：880mm
• Own Weight：134kg
• Packing Size：Wooden Case, 1.2*0.6*1.4m
• Operation：Fully Automatic
• Working Temperature：-20~+50
• Transport Package：Wooden Box
• Specification：CE Certificate
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：842890909
• Production Capacity：100 PCS

Basic Info.

Model NO. DN-880U-1150 Volt 12-24V Max Lifting Height 880mm Own Weight 134kg Packing Size Wooden Case, 1.2*0.6*1.4m Operation Fully Automatic Working Temperature -20~+50 Transport Package Wooden Box Specification CE Certificate Trademark xinder Origin Jiangsu. China HS Code 842890909 Production Capacity 100 PCS

Product Description

Introductions:

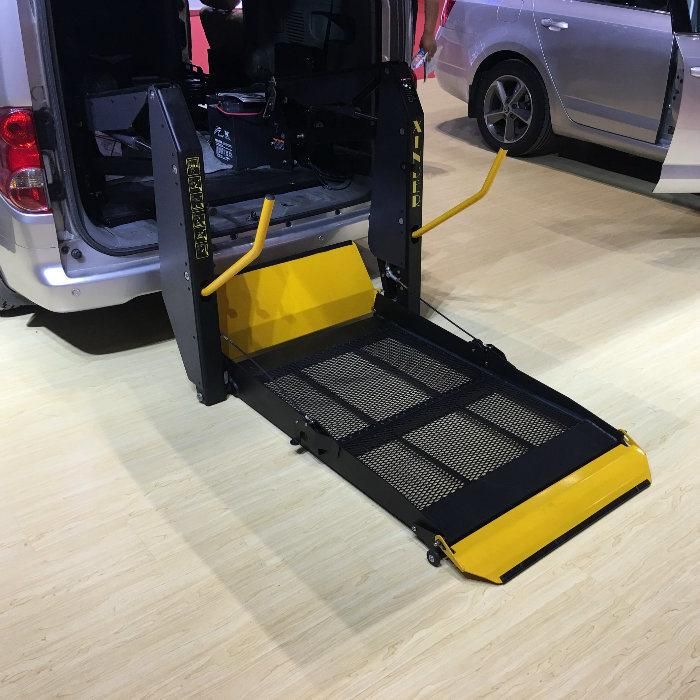

• This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

• It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

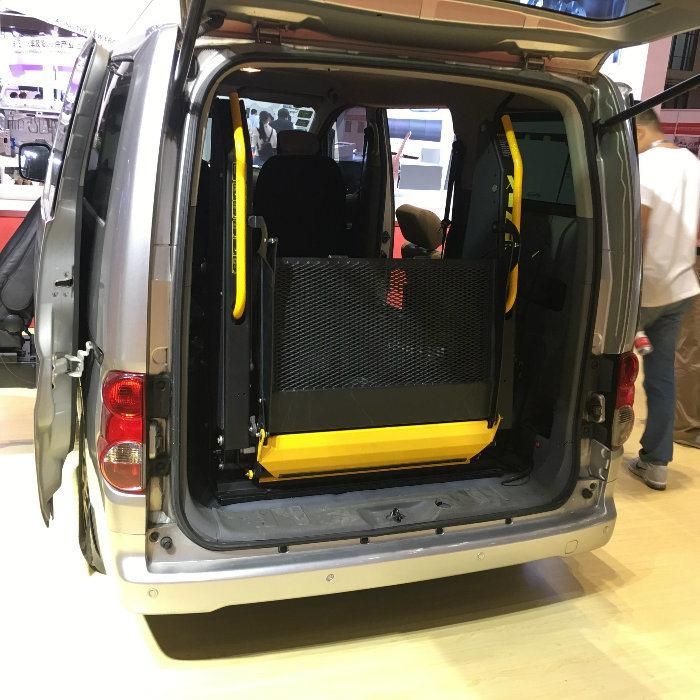

• This wheelchair lift can be installed at the rear door or side door.

• Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

• DN-880U wheelchair lift has foldable platform;

• Provides good visibility both for driver and passengers when stowed;

• Operated by the wired remote control or your mobilephone;

• It also can be operated manually for emergency;

• CE certified;

• Loading capacity:300kg;

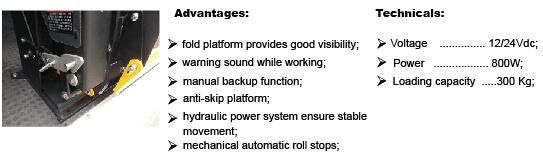

Advantages:

• Foldable platform provides good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• CE certificated;

• High-gloss polyester powder coat finish to prevent corrosion;

• Can be controlled by your mobilephone (option);

Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 300kg;

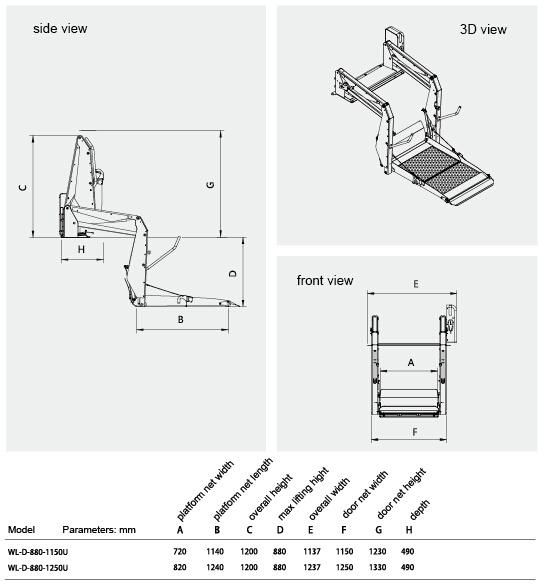

TECHNICALS:
