• Model NO.：MWR-V1
• Dimension：1420*1130*70mm
• Loading Capacity：350kg
• Time for Retraction or Extend：12-16s
• Working Temperature：-20~50
• Own Weight：45kg
• Transport Package：Carton or Wooden Case
• Specification：45kg
• Trademark：Xinder
• Origin：China
• HS Code：84289090
• Production Capacity：1000set,Year

Basic Info.

Model NO. MWR-V1 Dimension 1420*1130*70mm Loading Capacity 350kg Time for Retraction or Extend 12-16s Working Temperature -20~50 Own Weight 45kg Transport Package Carton or Wooden Case Specification 45kg Trademark Xinder Origin China HS Code 84289090 Production Capacity 1000set/Year

Product Description

Introdustions:

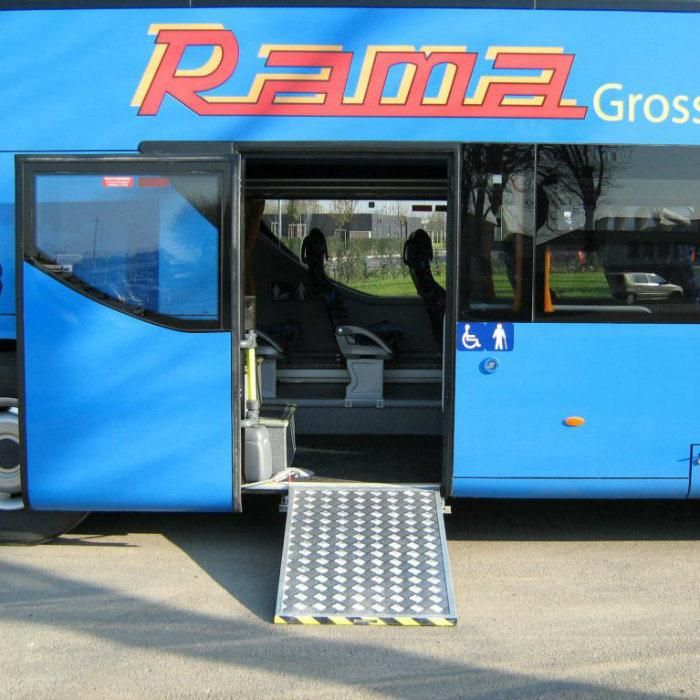

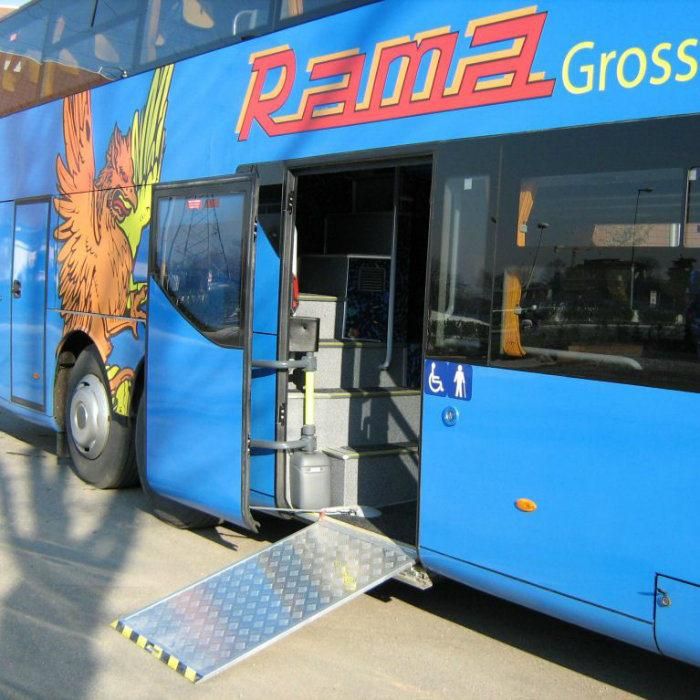

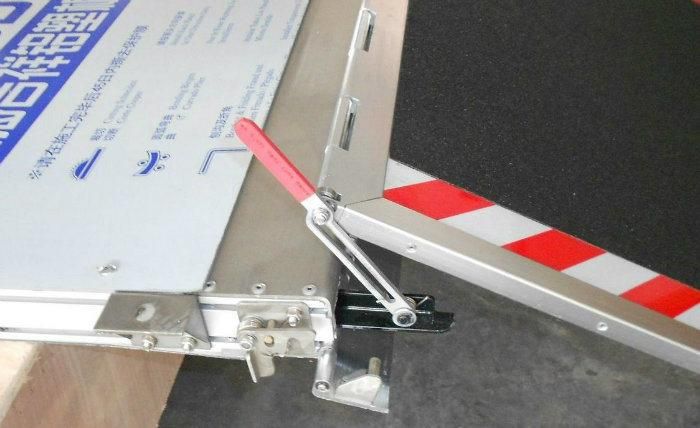

• MWR manual wheelchair ramp can be applied for low-floor city bus, and it is installed under the chassis of side door.

• It can help a person to get on bus easily and comfortably while seated in a wheelchair.

• It doesn't obstruct view, access and emergency exit.

• Main material is aluminum, which is light and with high corrosion resistance.

• This ramp has got patents.



Advantages:

• Doesn't obstruct view, access and emergency exit when not in use;

• anti-skip platform;

• Main material is aluminum, which is light and with high corrosion resistance;



Technical Specifications:

• Max Loading Capacity: 350 Kg

• Eliminate threshold drop: 60mm

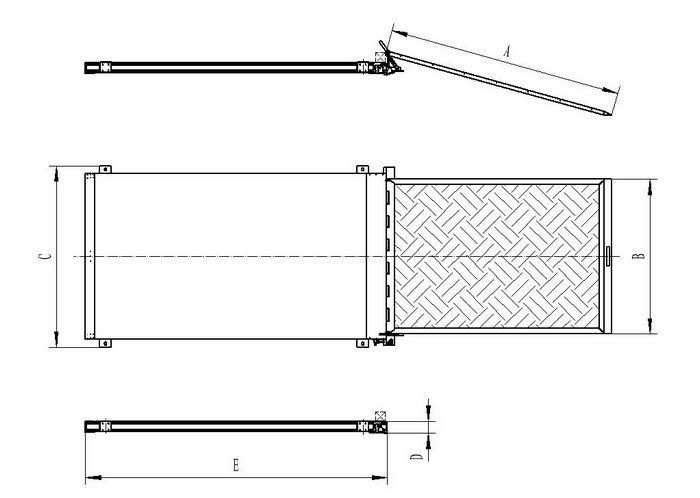

Model	Platform Net Size  (A×B)	Overall Width (C)	Overall Height (D)	Overall Length (E)	Loading Capacity	Own Weight
MWR-1	1054*988	1124	62	1416	350 Kg	40 Kg
