• Model NO.：S-LIFT-PRO
• Rotating Angle：0-113
• Safety Grade：IP67
• Color：Black,Beige
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Jiangsu Changzhou
• HS Code：87089999
• Production Capacity：100PCS,Month

Basic Info.

Model NO. S-LIFT-PRO Rotating Angle 0-113 Safety Grade IP67 Color Black/Beige Transport Package Wooden Case Specification CE Trademark Xinder Origin Jiangsu Changzhou HS Code 87089999 Production Capacity 100PCS/Month

Product Description

Introduction

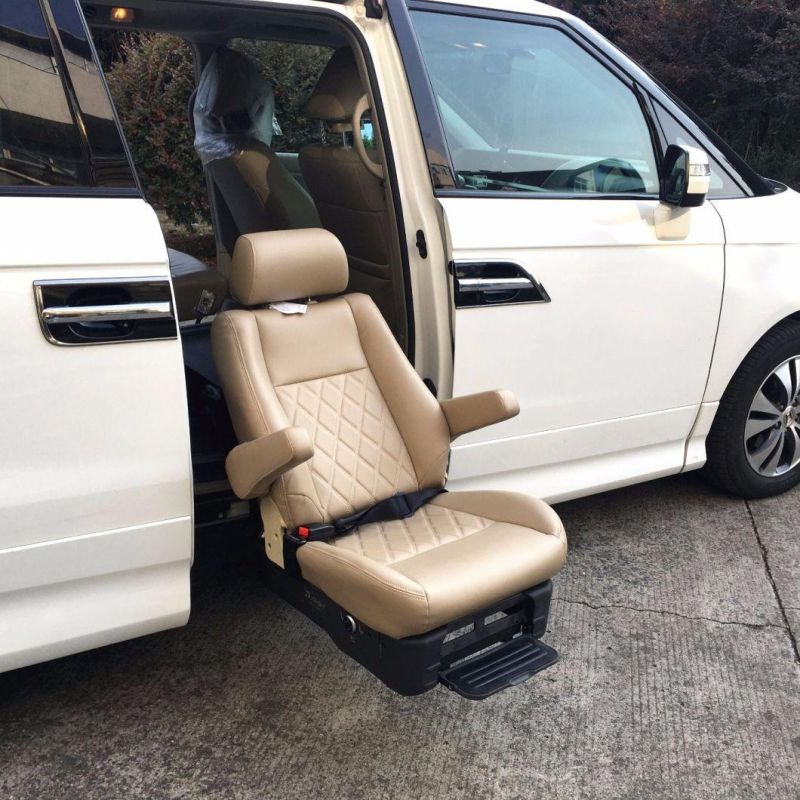

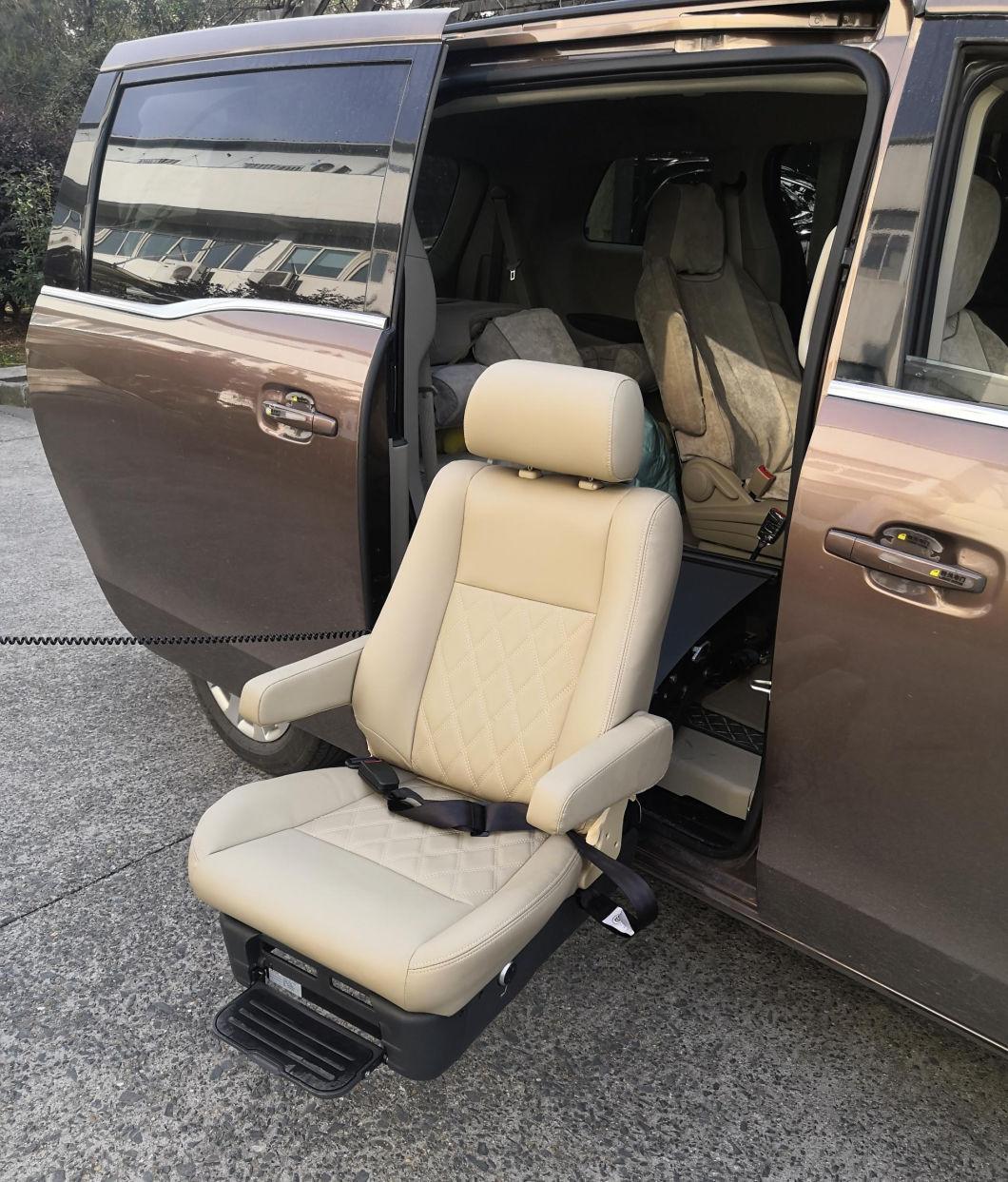

      S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MPV etc.
      It helps the old or the disabled to get seated safely, conveniently and comfortably.
      It can be operated by wired remote control, switches on seat or your mobile phone.
      This seat is programmable by the wired remote-control including programming the movement of lengthwise, rotation and seat backrest angle.
     Turning direction can be clockwise or anti-clockwise.

ADVANTAGES

• manual emergency function;
• door interlock function;
• auto sleep mode with very low quiescent current (<0.3mA);
• can be controlled by wired remote control, switches on seat or your mobile phone;
• pass R17 crash test;
• pass E-MARK EMC test

Technical parameters

• Voltage: 12V dc;
• Power: 120W;
• Loading Capacity: 150Kg;
• Lowering Height (h): 395mm;
• Rotating Angle: 0-113°;
• Quiescent current: ≤0.3mA
• Max current: 25A;

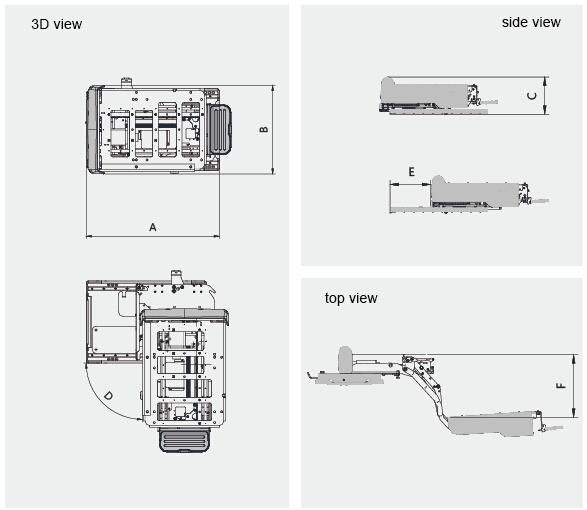

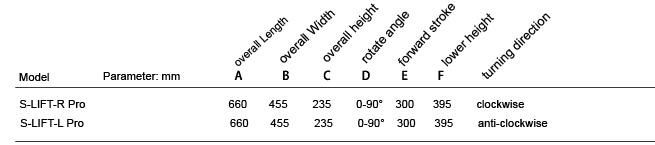

Dimension parameters
