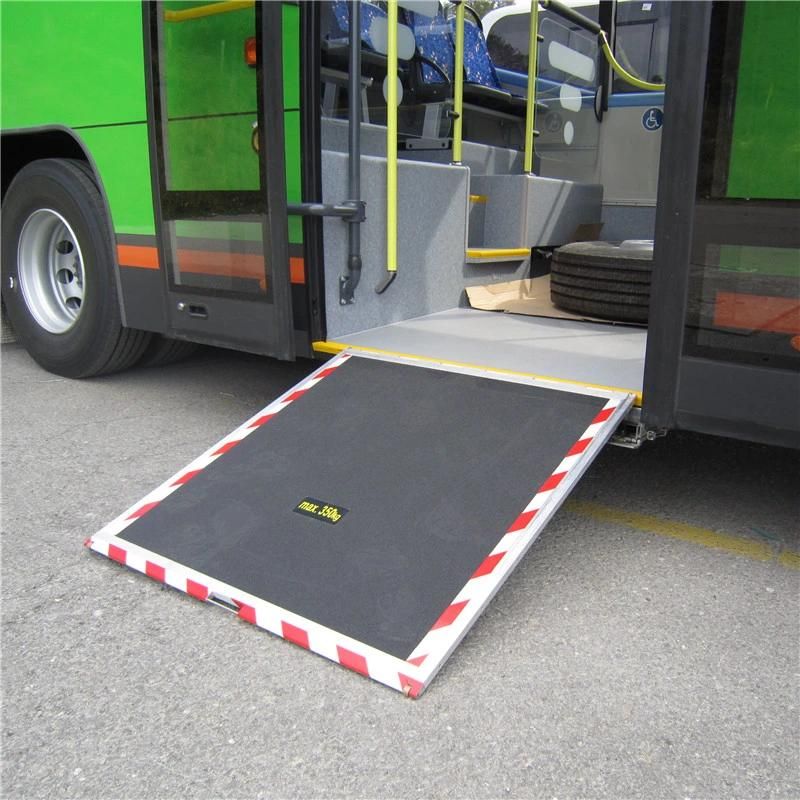

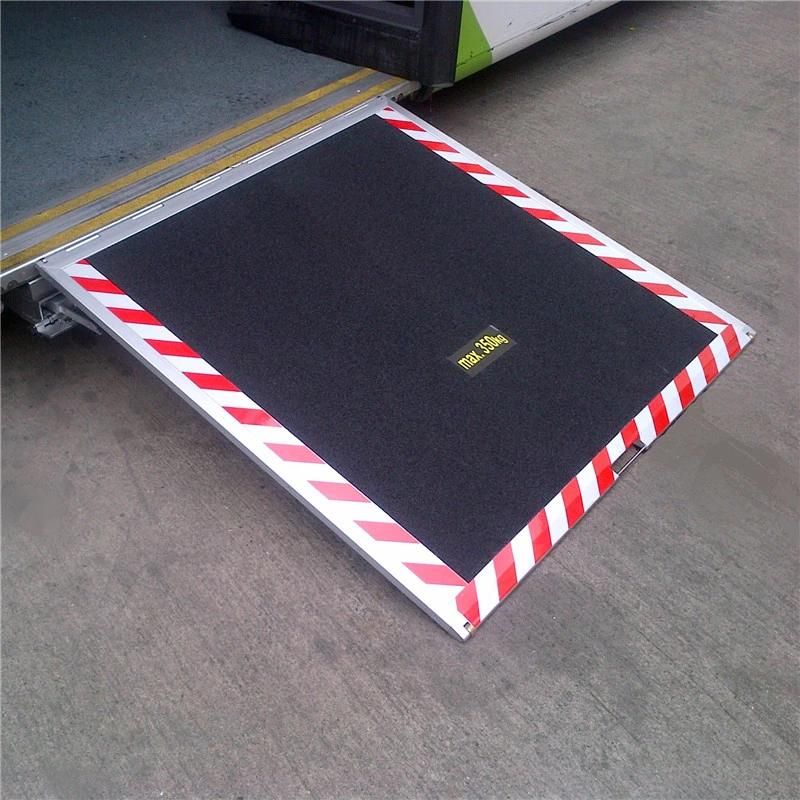

Electric Wheelchair Ramp for City Bus
Changzhou Xinder-Tech Electronics Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Load Capacity：350
- Lifting Height：350mm
- Foldable：Foldable
- Material：Aluminum
Base Info
- Model NO.：EWR-L
- Certification：CE
- Transport Package：Wooden Case
- Specification：1520*1200*140
- Trademark：xinder
- Origin：China
- HS Code：87089999
- Production Capacity：9999
Description
Overview

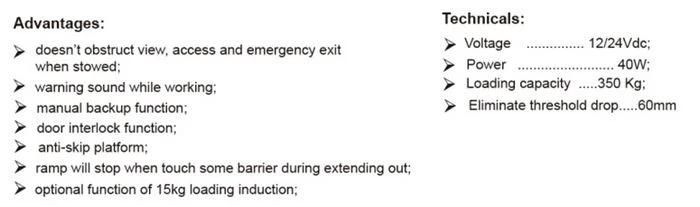

IntroductionAdvantagesDetailed
Main functions1. anti-skip:3M anti-skip covering on ramp serface; 2. Manual function: this ramp can be operated manually for emergency; 3. Interlock function: this ramp only works when bus parked and door opened; 4. anti-collision function: When there is resistance less than 150N, the platform stops moving. The peak value of resistance in a short time can be higher than 150N, but not over than 300N; 5. Strong push function:If the ramp is not used for a long time and it may be blocked by mud, when extend the platform, it will enter the strong push mode to clean itself. In this mode, the buzzer keeps warning and the light keeps on. Ramp will resume normal work when extend it again. Main Functions: 6. Filter function:The input line has filter function to effectively resist high frequency pulse, but the normal input signal shoule be at least 100ms pulse width; 7. Self-protection: this ramp can protect itself from damage in case of wrong wiring. 8. Warning with sound and light: there is warning sound and light during ramp working; 9. Water-proof: this ramp works normally after the motor immersed in water 250mm deep for 120 minutes. 10. Optional APP function:this ramp can be controlled by mobilephone.
