• Model NO.：ES-F-S-600
• Weight：10kg
• Certifcate：CE
• Packing Size：70*60*20cm
• Operation：Electric
• Transport Package：Carton
• Specification：CE
• Trademark：xinder
• Origin：Changzhou Jiangsu
• HS Code：8708999990
• Production Capacity：1000sets Per Month

Basic Info.

Model NO. ES-F-S-600 Weight 10kg Certifcate CE Packing Size 70*60*20cm Operation Electric Transport Package Carton Specification CE Trademark xinder Origin Changzhou Jiangsu HS Code 8708999990 Production Capacity 1000sets Per Month

Product Description

1. INTRODUCTION

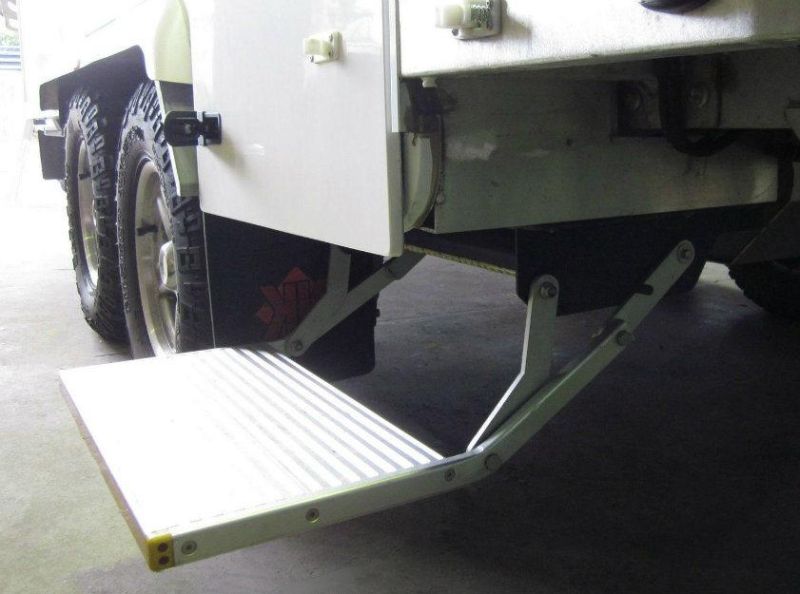

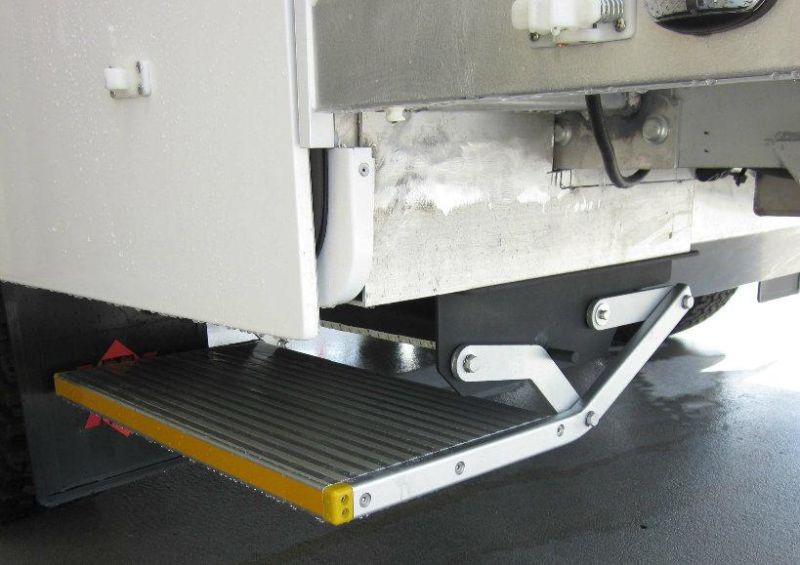

It is designed to fit on the range of vans, minibuses, taxi, motor homes and ambulances. The step folds out and in driven by motor. All folding electric steps have aluminum platform with non-slip surface which works properly under any weather condition. It is available with illumination, fully automatic safe operation controlled from our unique control box.
Manual folding step is also available.

Operation
The folding contraction electric step is pulled out and pushed in by motor.
The folding contraction electric step is operated by means of a design switch which combines perfectly with the modern motor home.
Construction
All folding contraction electric steps have galvanized or aluminum frames. The step is made of anodized aluminum with safe rounded edges. For most of the steps, the side plates are in anodized aluminum as well.
Both current and new developments regarding our products are continuously tested. Maximum static capacity is 200kg.
Safety
A switch for connection to a warning light in the vehicle is supplied as standard. For your safety, the folding contraction electric step edges are rounded and fluorescent in the dark.
All steps are now equipped with anti-slip foot boards as standard! Your current step (450 and 600/double 450 and 600) can be retro fitted with the new anti-slip foot boards.

2. ADVANTAGES
 •Tread widths: 450mm, 600mm •Tread depth:  300mm•CE certificated.•Voltage: 12V/24V•Safety loading capacity: 200 kg•Motor fitted with thermal cut-out protection.•Auto stand-by and sleep mode within 10s after step return back; quiescent current is less than 1mA;•Sensitive edge: if there is obstruction during step sliding out, step will stop; •Sensitive loading: If there is 15kg loading on step platform (when a child stands on platform), step will stop;   •Self-stufy: used to warning in case step installed improperly;•Manuual operation for emergency;•Have manul version for choice;
3 TECHNICALS

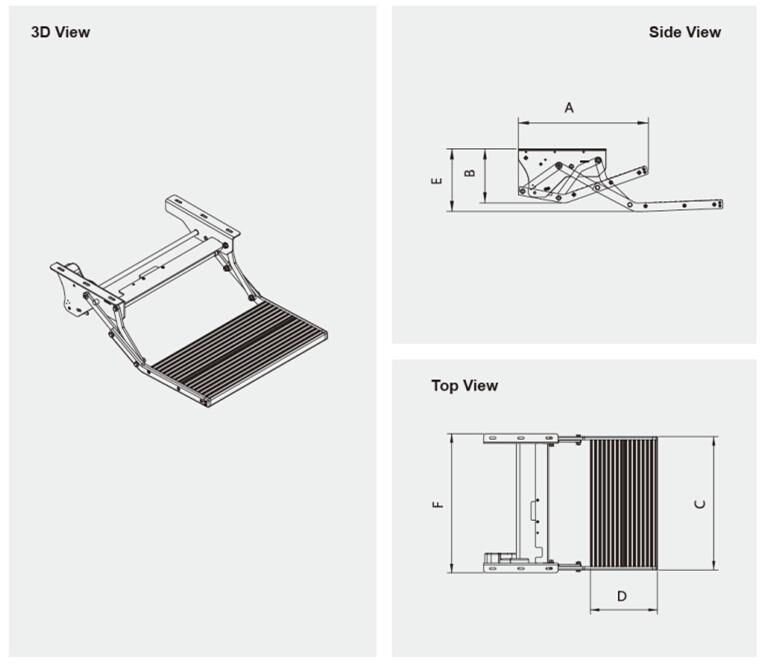

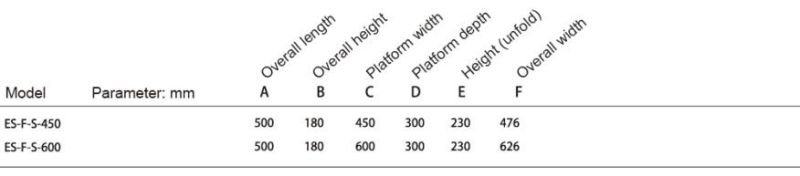

Model	platform size	bracket width	lowering height	volt	own weight
ES-F-S-450	450*300	476	223	12V or 24V	12KG
ES-F-S-600	600*300	626	223	12V or 24V	16KG
ES-F-S-750	750*300	776	223	12V or 24V	21KG
