• Model NO.：WL-UVL-700-S
• Max Lifting Height：1400 mm
• Overall Length：1867-2015mm
• Overall Width：1135mm
• Overall Height：133mm
• Door Width Required：1100mm
• Option：Handrail
• Safety：Anti-Skip Platform
• Transport Package：Wooden Box
• Specification：CE certificate, 180kg
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：84289090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. WL-UVL-700-S Max Lifting Height 1400 mm Overall Length 1867-2015mm Overall Width 1135mm Overall Height 133mm Door Width Required 1100mm Option Handrail Safety Anti-Skip Platform Transport Package Wooden Box Specification CE certificate, 180kg Trademark xinder Origin Jiangsu. China HS Code 84289090 Production Capacity 100 PCS/Month

Product Description

1. INFORMATION
WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.

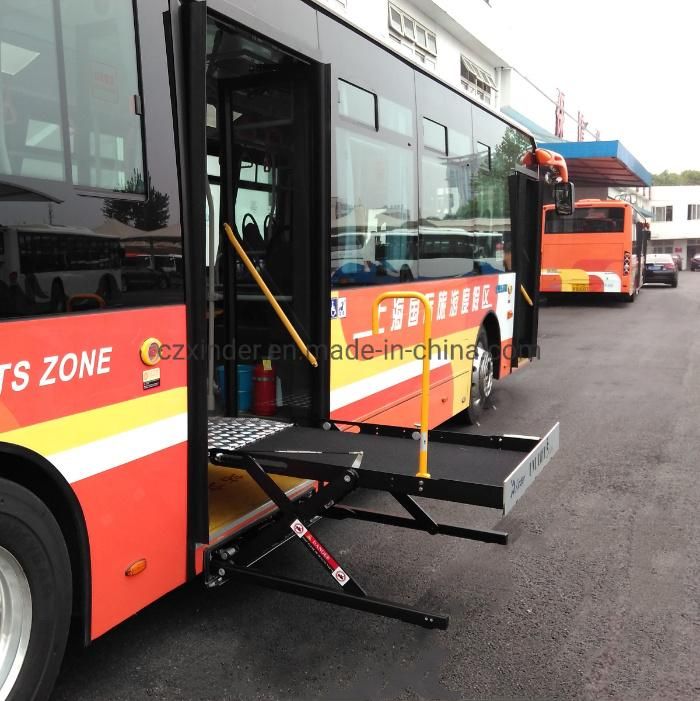

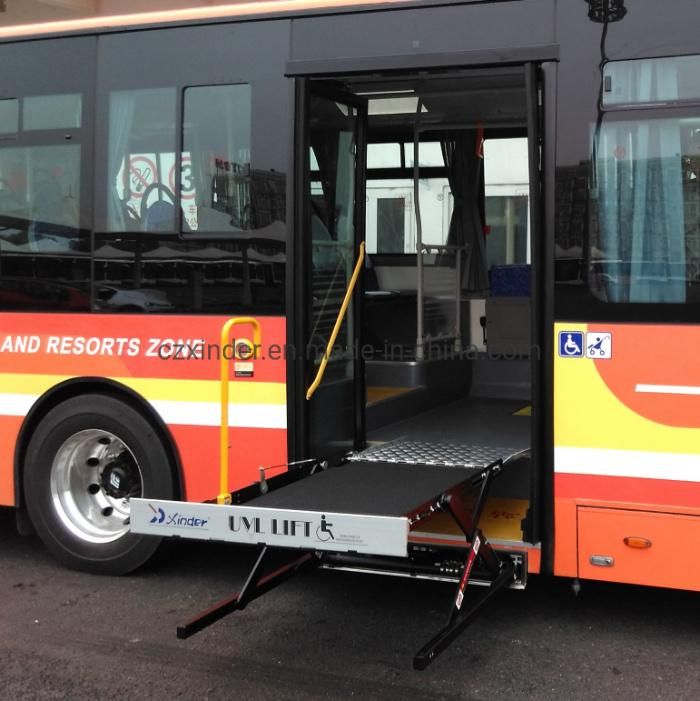

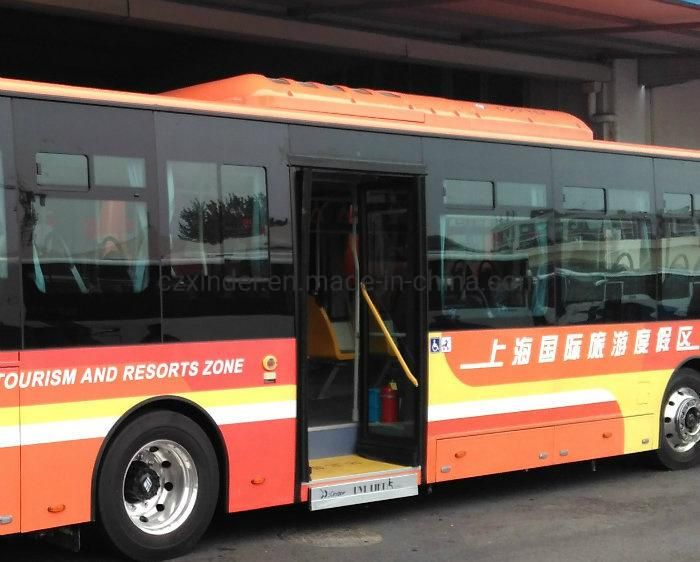

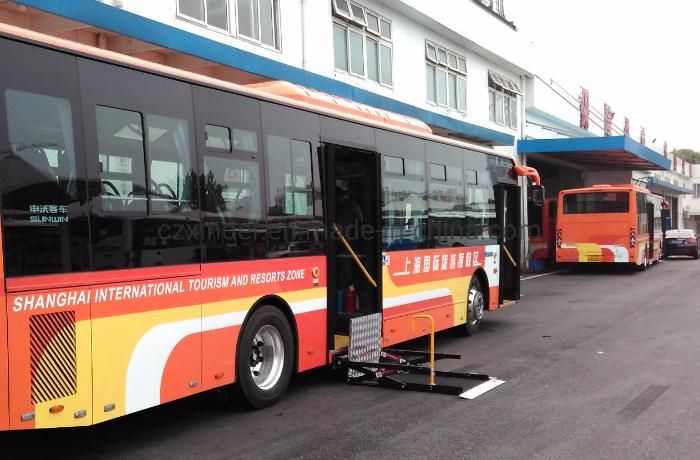

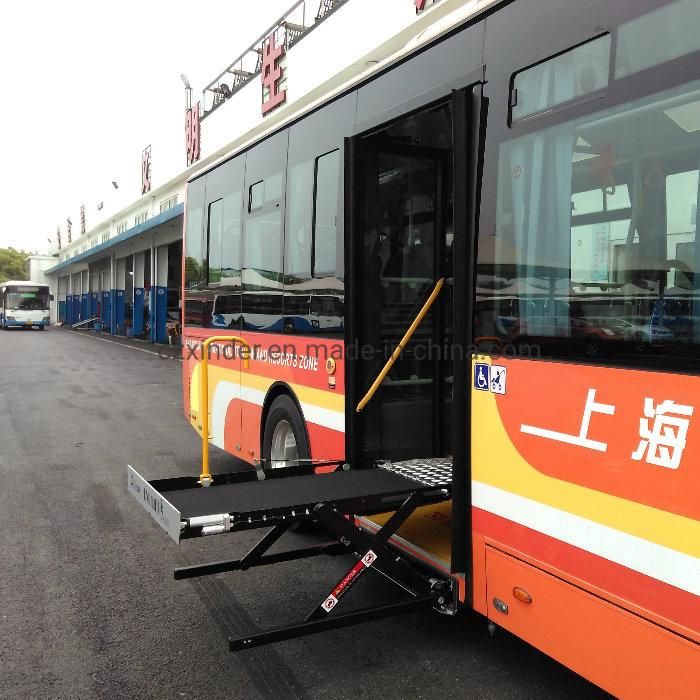

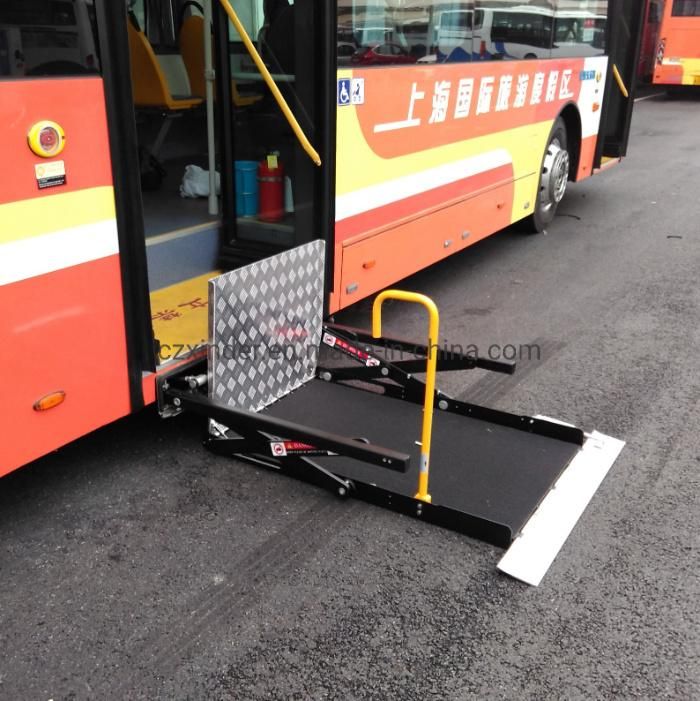

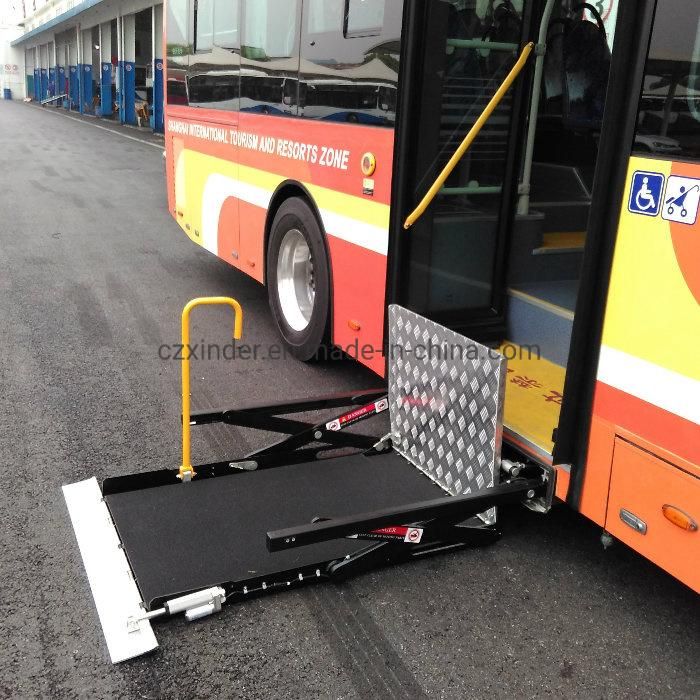

This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.

2. ADVANTAGES
Electric outboard rollstop and automatic inboard rollstop
Super thin compact design
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system


Model	WL-UVL-700 installed in step	WL-UVL-700-S installed under step	WL-UVL-700II installed in luggage
Platform size	751*1220	751*1220	751*1220
Max. up stroke	505	505	430
Max. down stroke	500	500	540
Length required to install lift	1940	1812	1867
Height of lift rear end	133	133	133
Height of lift front end	167	167	167
Distance between guide frame and up fitting surface	53	53	53
Distance between front fitting surface and spindle of main arm	347	75	145
Installation position	for the bus with three steps; installed in step	for the bus with two steps; installed under chassis	for coach or tourist bus; installed in the luggage
