FEWR Folding Electric Wheelchair Ramp Designed for Low-Floor City Bus
Changzhou Xinder-Tech Electronics Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Load Capacity：350kg
- Lifting Height：0.86m
- Foldable：Foldable
- Material：Aluminum
Base Info
- Model NO.：FEWR-2
- Certification：ISO
- Transport Package：Wooden Box

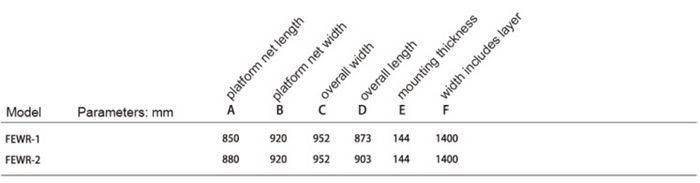

- Specification：880mm*920mm
- Trademark：xinder
- Origin：China
- HS Code：87089999
- Production Capacity：9999
Description
Overview
Introduction
2. Manual function: this ramp can be operated manually for emergency;
3. Interlock function: this ramp only works when bus parked and door opened;
4. Self-protection: this ramp can protect itself from damage in case of wrong wiring.
5. Warning with sound and light: there is warning sound and light during ramp working;
6. Water-proof: this ramp works normally after the motor immersed in water 250mm deep for 120 minutes.
7. Max loading capacity reaches 350kg;
8. Voltage can be 12Vdc or 24Vdc
FEWR folding electric wheelchair ramp is designed for low-floor city bus to help a person to enter bus comfortably and easily while seated in a wheelchair. It is installed on bus floor and flat with floor when not in use. It doesn't obstruct view, access and emergency exit. It is driven by motor, the voltage can be 12Vdc or 24Vdc. It is controlled by switch. Main material is aluminum, which is light and with high corrosion res

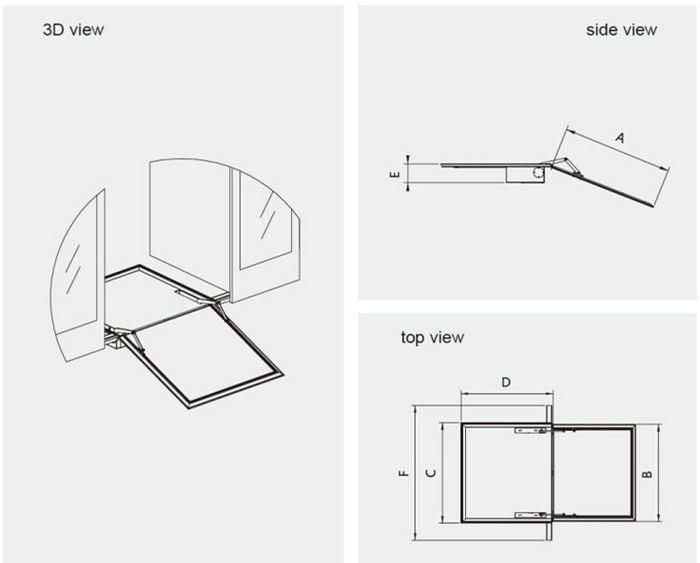

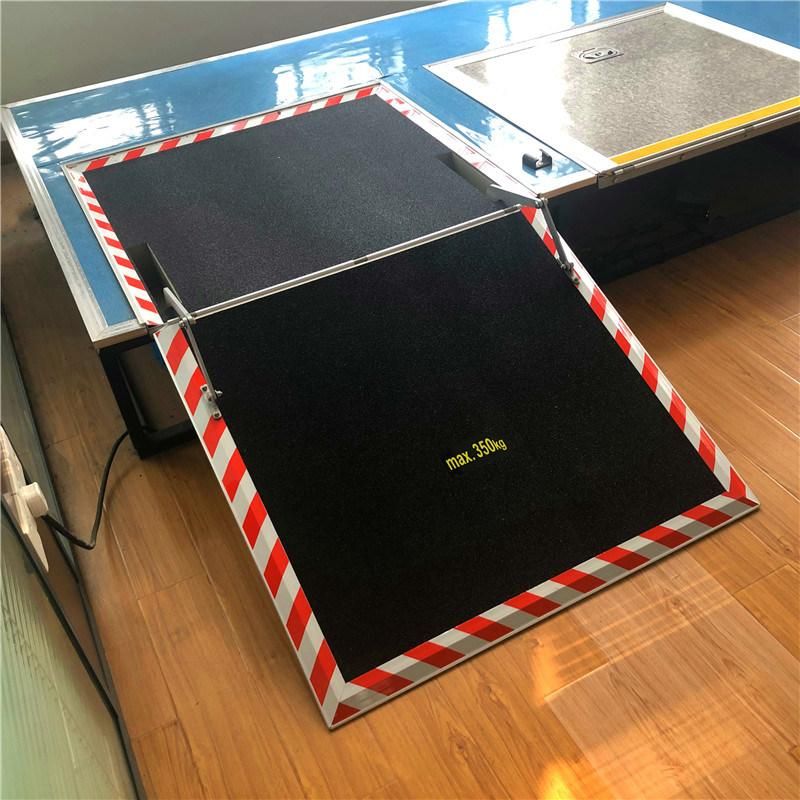

Detailed Photos

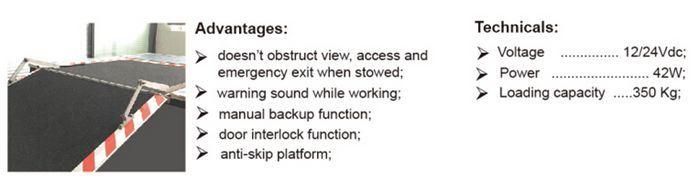

Functions:
2. Manual function: this ramp can be operated manually for emergency;
3. Interlock function: this ramp only works when bus parked and door opened;
4. Self-protection: this ramp can protect itself from damage in case of wrong wiring.
5. Warning with sound and light: there is warning sound and light during ramp working;
6. Water-proof: this ramp works normally after the motor immersed in water 250mm deep for 120 minutes.
7. Max loading capacity reaches 350kg;
8. Voltage can be 12Vdc or 24Vdc
