• Model NO.：S-LIFT
• Turning Angle：0-120
• Own Weight：68kg
• Volt：12V
• Operation：Remote Control
• Color：Black,Beige
• Transport Package：Wooden or Carton Box
• Specification：68kg
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：870899999
• Production Capacity：10000 Sets,Year

Basic Info.

Model NO. S-LIFT Turning Angle 0-120 Own Weight 68kg Volt 12V Operation Remote Control Color Black/Beige Transport Package Wooden or Carton Box Specification 68kg Trademark xinder Origin Jiangsu. China HS Code 870899999 Production Capacity 10000 Sets/Year

Product Description

Introduction

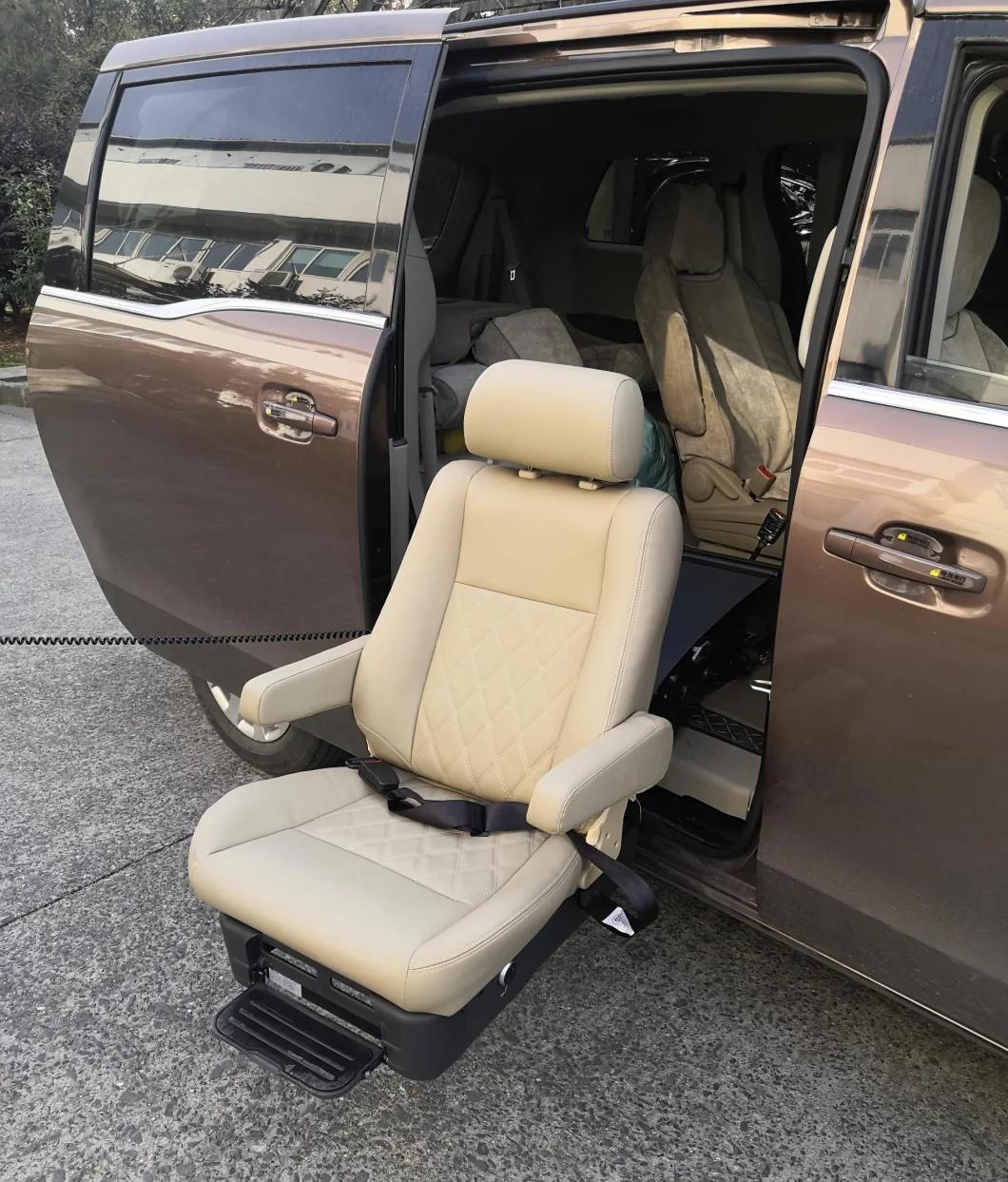

      S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MPV etc.
      It helps the old or the disabled to get seated safely, conveniently and comfortably.
      It can be operated by wired remote control, switches on seat or your mobile phone.
      This seat is programmable by the wired remote-control including programming the movement of lengthwise, rotation and seat backrest angle.
     Turning direction can be clockwise or anti-clockwise.

ADVANTAGES

• manual emergency function;
• door interlock function;
• auto sleep mode with very low quiescent current (<0.3mA);
• can be controlled by wired remote control, switches on seat or your mobile phone;
• pass R17 crash test;
• pass E-MARK EMC test

Technical parameters

• Voltage: 12V dc;
• Power: 120W;
• Loading Capacity: 150Kg;
• Lowering Height (h): 395mm;
• Rotating Angle: 0-113°;
• Quiescent current: ≤0.3mA
• Max current: 25A;

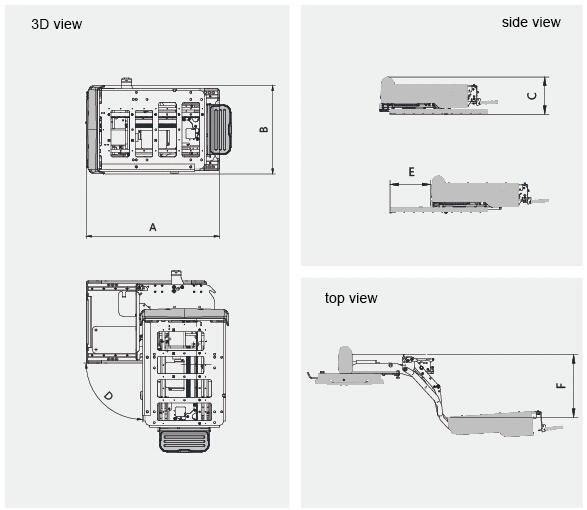

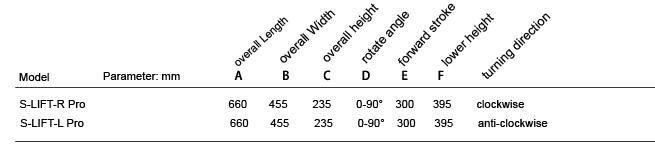

Dimension parameters
