• Model NO.：DN-880U-1150
• Max Lifting Height：880mm
• Loading：300kg
• Certificate：Ce,Emark
• Transport Package：Plywood Case 1200*600*1400
• Specification：140kg
• Trademark：Xinder
• Origin：China
• HS Code：8428909090
• Production Capacity：1000,Year

Basic Info.

Model NO. DN-880U-1150 Max Lifting Height 880mm Loading 300kg Certificate Ce,Emark Transport Package Plywood Case 1200*600*1400 Specification 140kg Trademark Xinder Origin China HS Code 8428909090 Production Capacity 1000/Year

Product Description

Introductions:

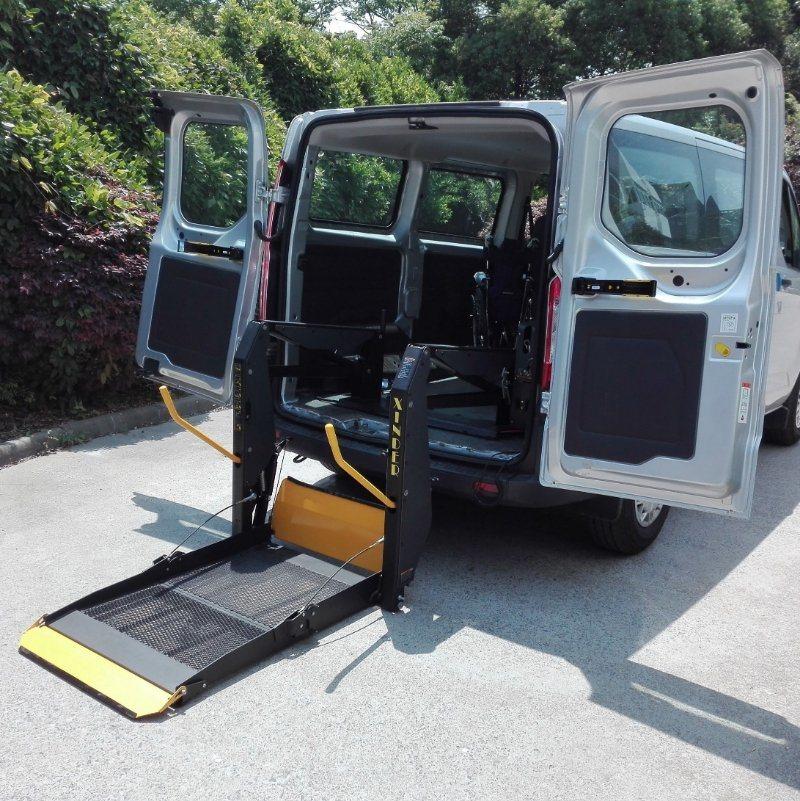

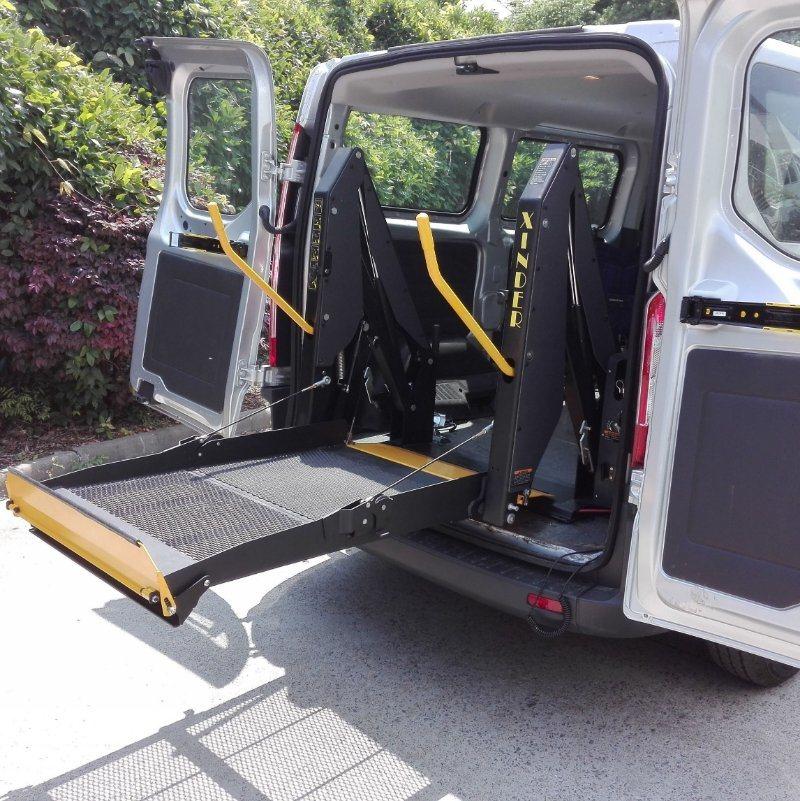

This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

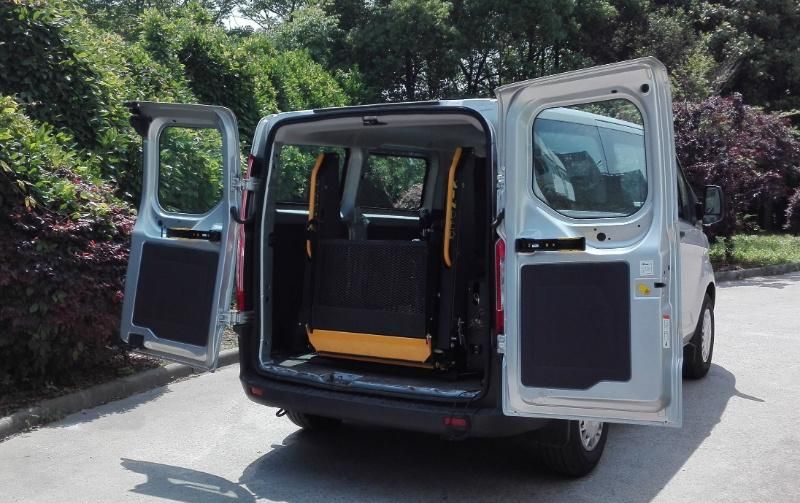

This wheelchair lift can be installed at the rear door or side door.

Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

This lift is operated by a wired remote control or by your mobilephone.

It also can be operated manually for emergency.

It is CE certified.

Loading capacity is 300kg.



Advantages:

• Solid platform provides additional safety;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• Can be controlled by your mobilephone (option);

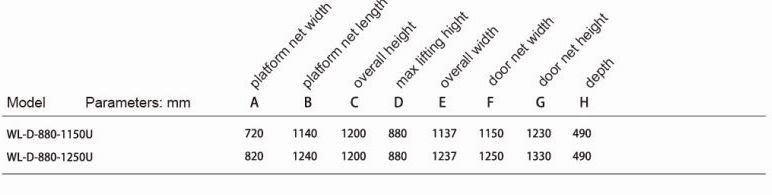

Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 300kg;
