• Model NO.：EWR-L7-S
• Dimension：1408*1130*70mm
• Loading Capacity：350mm
• Volt：12-24V
• Max. Driving Current：10A
• Time for Retraction or Extend：12-16s
• Working Temperature：-20~50
• Own Weight：50kg
• Transport Package：Carton or Wooden Case
• Specification：50kg
• Trademark：Xinder
• Origin：China
• HS Code：84289090
• Production Capacity：1000set,Year

Basic Info.

Model NO. EWR-L7-S Dimension 1408*1130*70mm Loading Capacity 350mm Volt 12-24V Max. Driving Current 10A Time for Retraction or Extend 12-16s Working Temperature -20~50 Own Weight 50kg Transport Package Carton or Wooden Case Specification 50kg Trademark Xinder Origin China HS Code 84289090 Production Capacity 1000set/Year

Product Description

1. Introduction

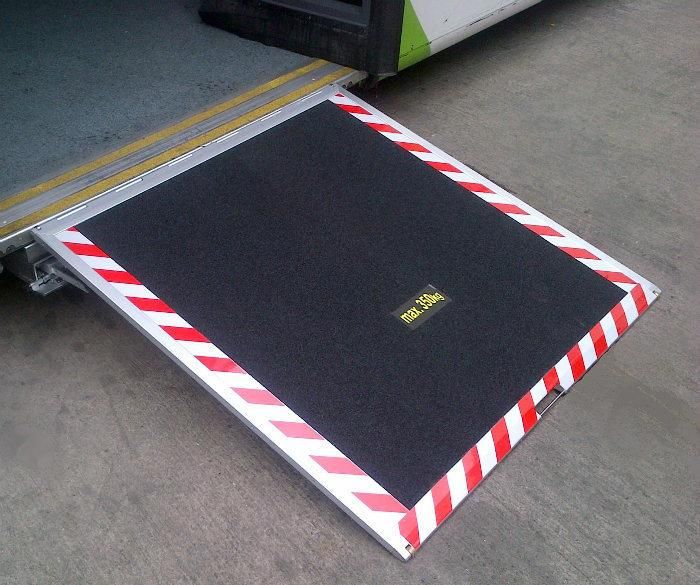

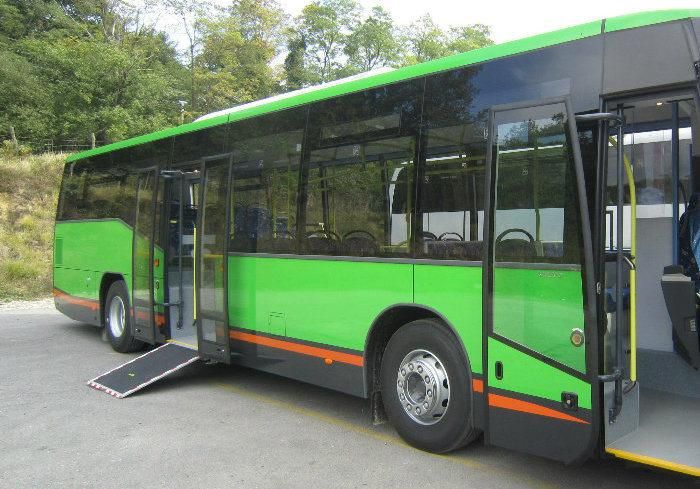

Electric wheelchair ramp can be applied on low-floor city bus and installed underside of passenger door step. When vehicle arrives at stop, the driver control the switch, and then platform can be extended and retracted smoothly. When the platform reach working position, the rear-end of ramp will raise automatically to eliminate height of threshold of passenger door so as to ensure rear-end of platform level up to vehicle floor, convenient for wheelchair to access vehicle.
This electric wheelchair ramp has got two patents (Patent NO. ZL 02 2 83133.9 and ZL 2006 20005099.5).

2. Technical Parameter

Model	Platform Net Size  (A×B)	Overall Width (C)	Overall Length (D)	Thickness (E)	Mounting thickness (F)	Loading Capacity	Own Weight
EWR-L7-S	1005*1007	1130	1408	95	70	350 Kg	40 Kg

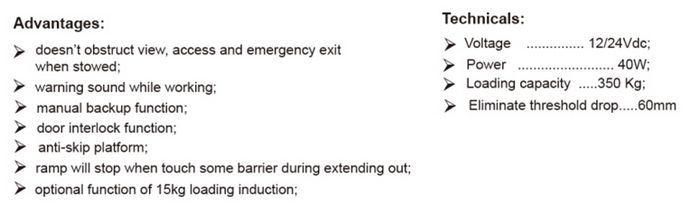

3. Technical Function
Rated Voltage of Motor: DC24V
Max. Working Voltage of Motor:DC≤31V
Max. Driving Current:10A
Time for Retraction or Extend:12~16S
Max Loading Capacity: 350 Kg
Ramp Raising Height of Rear-end (extend fully):55mm
Working Temperature:-20 ~ +50

4. Safety Function:
1  Adopt anti-skid aluminum plate on the surface of platform
2  With sound and flashlight alarm during operation of wheelchair ramp
3  With danger alarm on the outer-edge of ramp
 4 In the course of the ramp extends, if it touches any barrier, the ramp will retract automatically. For a moment, it will extend again. If this status repeats 3 times, then the ramp retracts to the rest position for safety.
 The ramp is interlocked with passenger door.

5. Manual Function:
 When the driving motor is invalid, the ramp can be retracted manually.
