• Model NO.：S-OUT
• Model：S-out-R
• Turning Direction：Right
• Voltage：12V,24V
• Size：485*480*110mm
• Turning Angle：0-97
• Loading Capacity：150kg
• Own Weight：26kg
• Brand：Xinder
• Packing Way：Wooden Case
• Gross Weight：62kg
• Transport Package：Wooden Case
• Specification：485*480*110 mm
• Trademark：XINDER
• Origin：Changzhou, Jiangsu, China
• HS Code：8708999990
• Production Capacity：100 Sets,Month

Overview Product Description

INTRODUCTION:

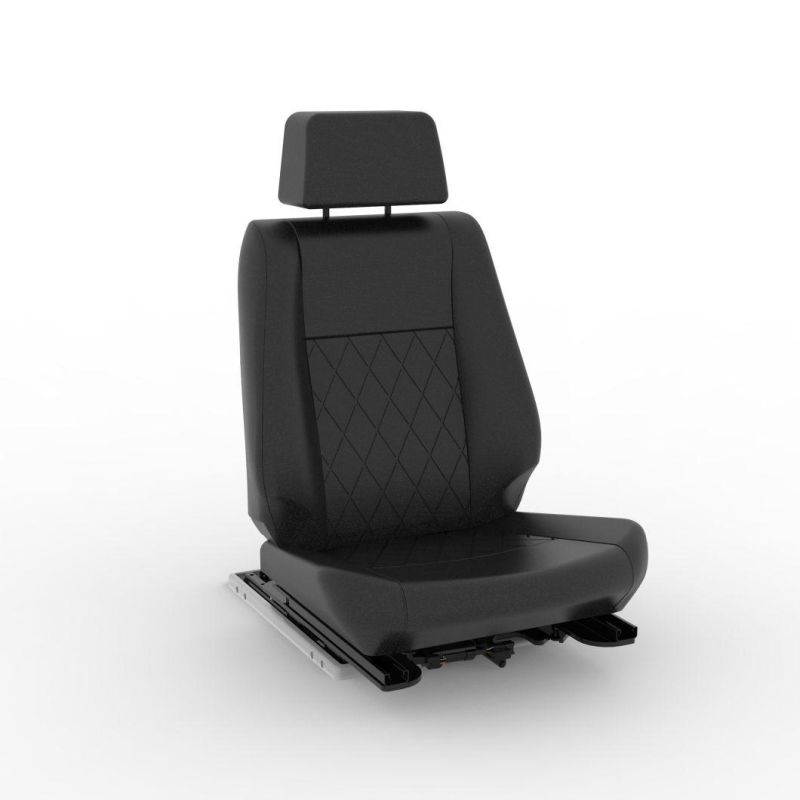

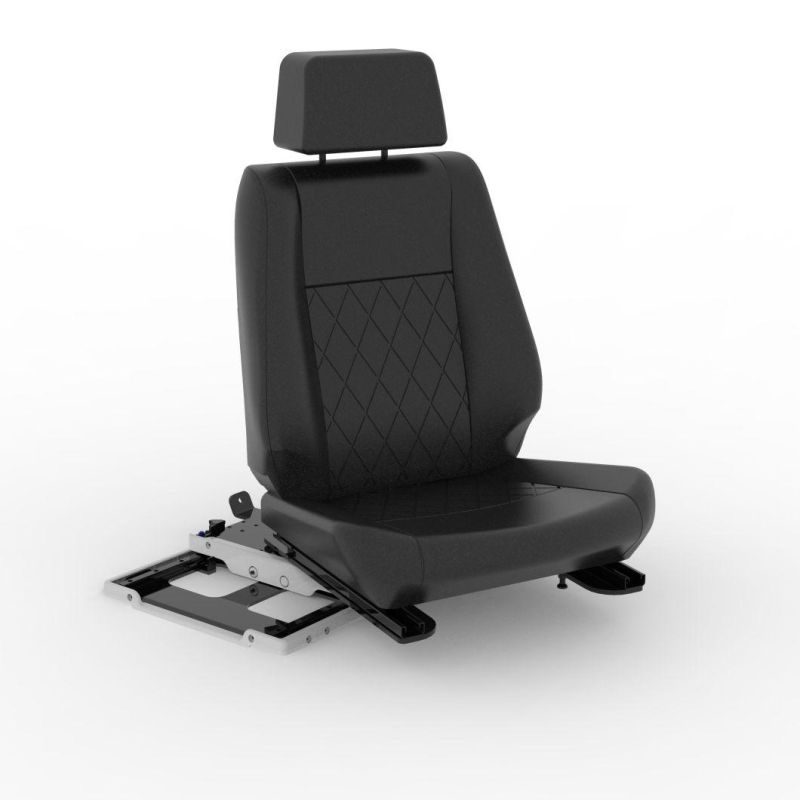

S-OUT turning seat is installed in car. Working principle is to turn seat 90°automatically to help the disabled get in/out of car easily.

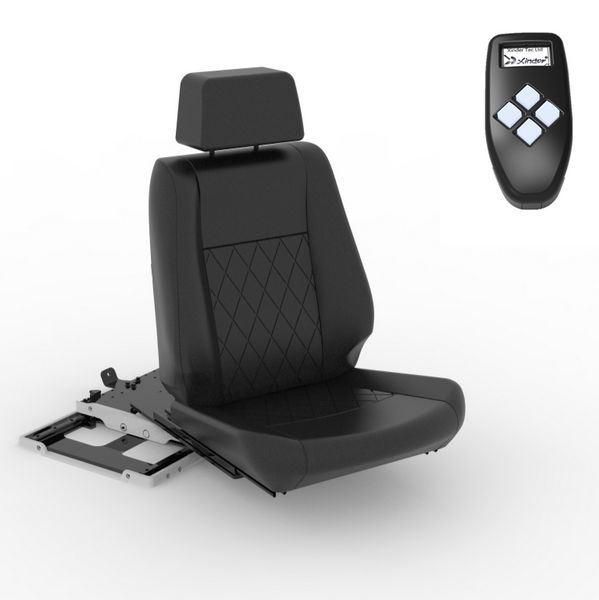

This equipment can be operated by user himself. By using remote control, this equipment can be turn out of /into car automatically.
There is a motor and chain to achieve the turning. There is cardan rod to make seat moving forward and backward.
User can consider using our chair topper together with this equipment.

FUNCTION: Turn seat out of / into car.
APPLICATION: Can be installed in car, SUV, minivan and etc. it is used for the disabled or the old.
INSTALLATION: Be sure there is enough space for seat turning. Distance from turning center should not less than 526mm.

2.After-sales Service
Xinder-Tech warrants the original buyers that Xinder-Tech will repair or replace any part failed due to defective material or workmanship during warranty period.Details are as follows:

1.Warranty Period:
Ø Warranty Period:12 Month from the delivery date from seller.
Ø Repair or replace parts failed due to defective material or workmanship during warranty period.
Ø Repair or replace parts of power units failed due to defective material or workmanship during warranty period.
Ø The parts can be got from Xinder-Tech Electronics.

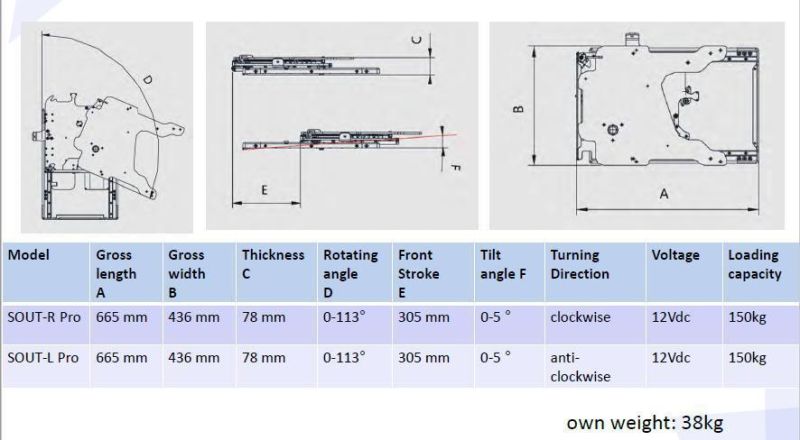

 Product Parameters

 Detailed Photos
