• Model NO.：EWR-L7-S

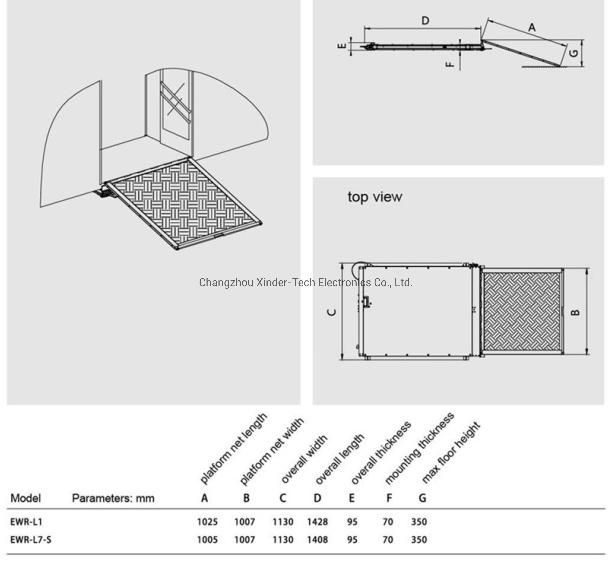

• Dimension：1415*1125*70mm
• Loading Capacity：350mm
• Volt：12-24V
• Max. Driving Current：10A
• Time for Retraction or Extend：12-16s
• Working Temperature：-20~50
• Own Weight：50kg
• Certificate：Ce, Emark
• Transport Package：Carton or Wooden Case
• Specification：50kg
• Trademark：Xinder
• Origin：China
• HS Code：87089999
• Production Capacity：1000set,Year

Basic Info.

Model NO. EWR-L7-S Dimension 1415*1125*70mm Loading Capacity 350mm Volt 12-24V Max. Driving Current 10A Time for Retraction or Extend 12-16s Working Temperature -20~50 Own Weight 50kg Certificate Ce, Emark Transport Package Carton or Wooden Case Specification 50kg Trademark Xinder Origin China HS Code 87089999 Production Capacity 1000set/Year

Product Description

Introductions:

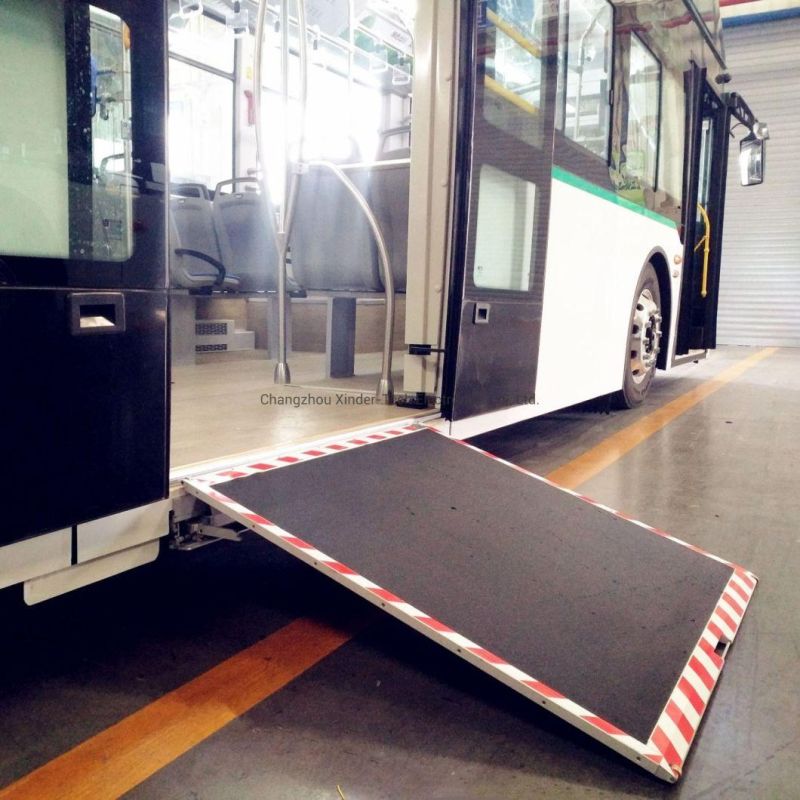

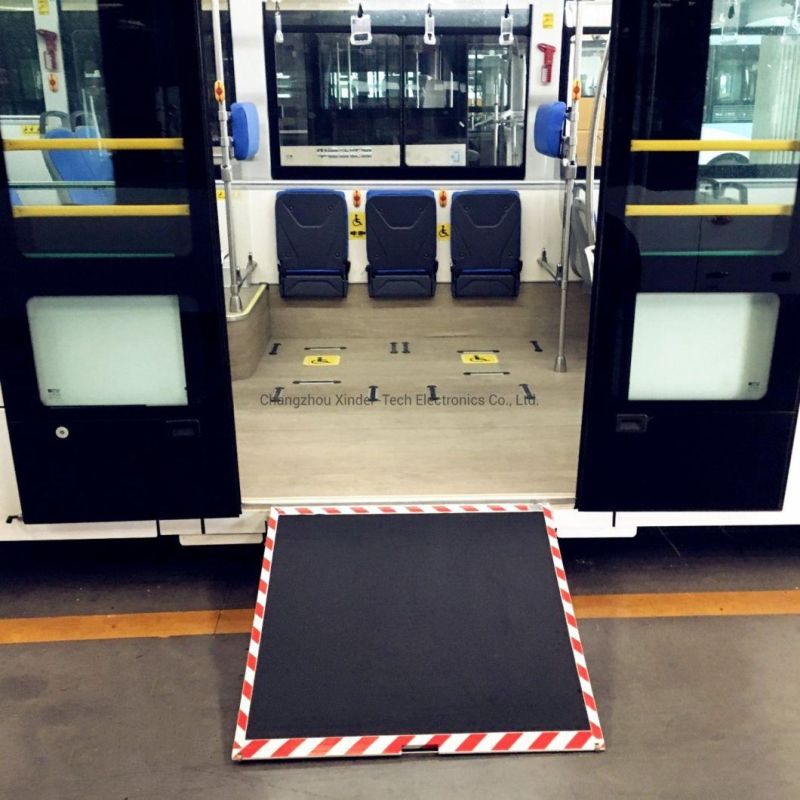

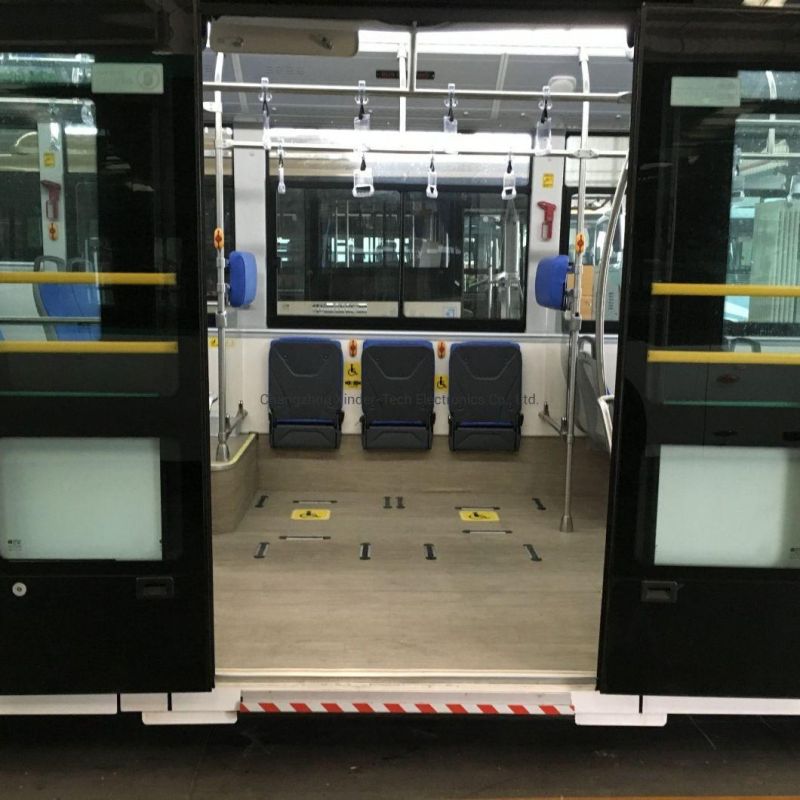

• EWR-L series electric wheelchair ramp is designed for city bus to help a person to enter bus comfortably and easily while seated in a wheelchair.

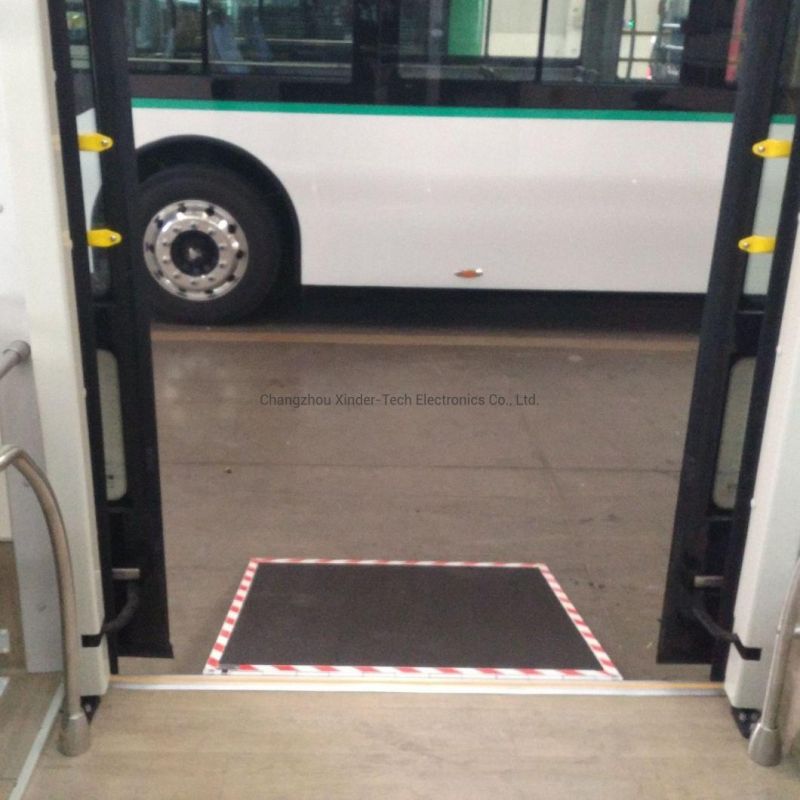

• It is installed under bus chassis, and it doesn't obstruct view, access and emergency exit.

• It is driven by motor.

• It is controlled by switch.

• Main material is aluminum, which is light and with high corrosion resistance.

• This ramp has got two patents.



Advantages:

• doesn't obstruct view, access and emergency exit when not in use;

• warning sound during working;

• manual backup function;

• door interlock function;

• anti-skip platform;

• ramp will stop when touch some barrier during extending out;

• optional function of 15kg loading induction;



Technical Specifications:

• Voltage:   24Vdc or 12Vdc;

• Max. Driving Current:   10A

• Power: 40W;

• Max Loading Capacity: 350 Kg

• Eliminate threshold drop: 60mm
