• Model NO.：EWR-L1
• Origin：Jiangsu Changzhou
• HS Code：84289090
• Production Capacity：1000PCS,Month

Model
Drive Mode
Platform Size(L×W)
Installation
EWR-L1
Electric
1035*1008(China)

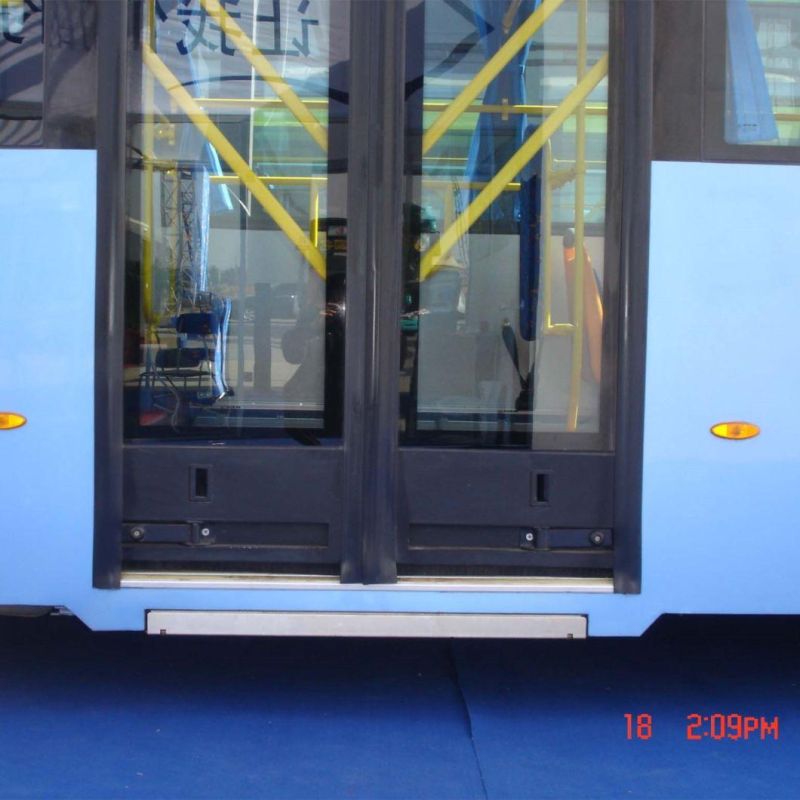

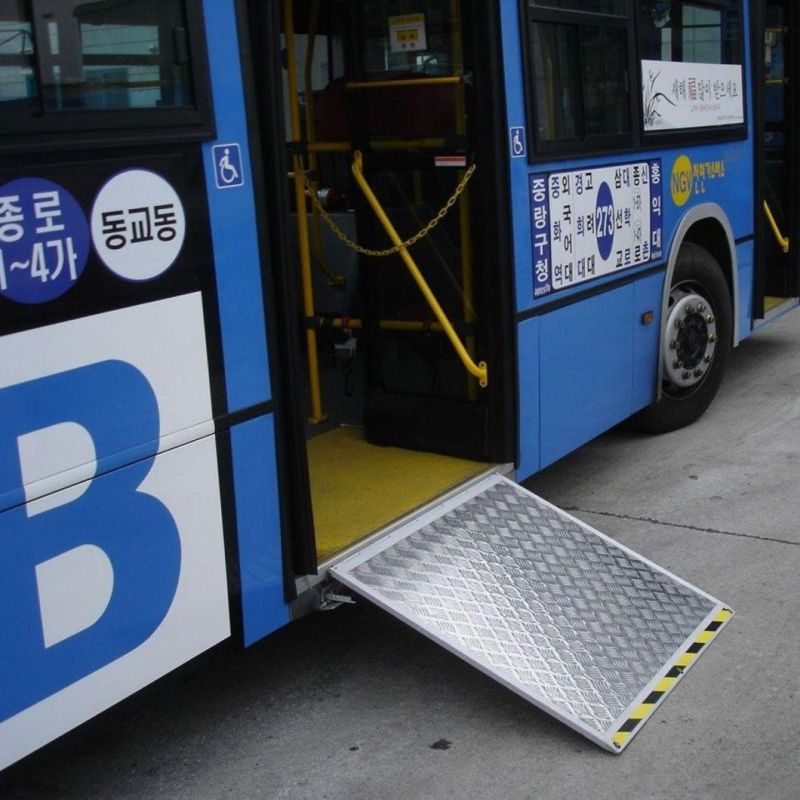

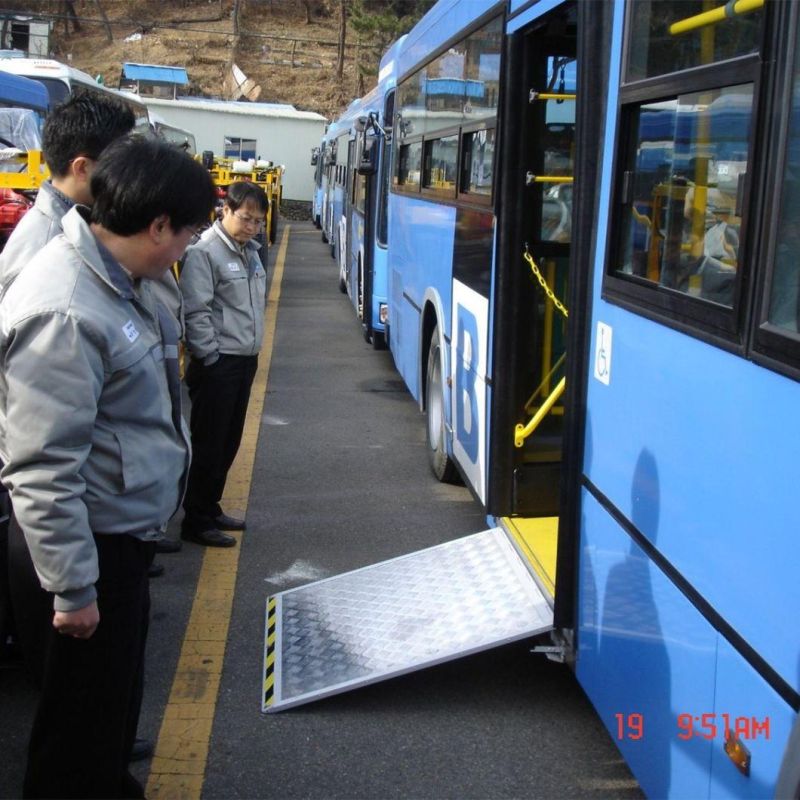

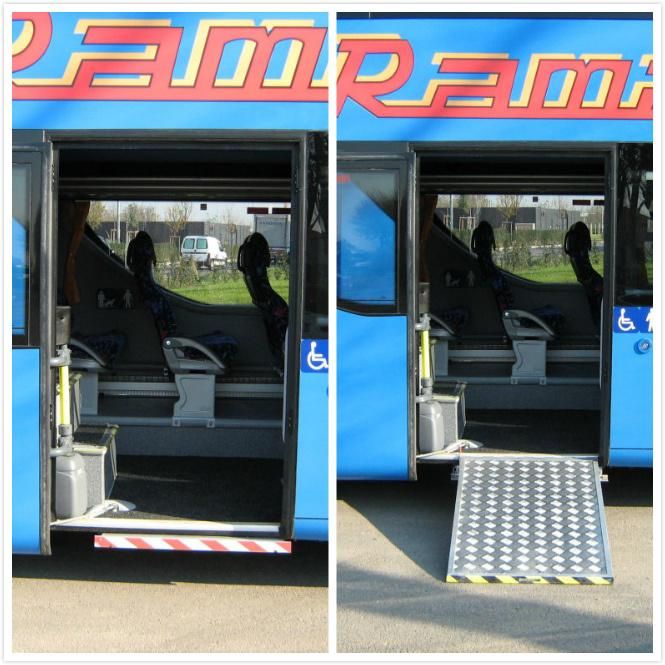

Installed under vehicle floor. When platform extends, it can eliminate height of door threshold to ensure rear-end of platform level up to vehicle floor.
2. Technical Parameter
                                                                                                                                                                                       Unit: mm
Model
Platform Net Size  (A×B)
Overall Width (C)
Overall Height (D)
Overall Length (E)
Loading Capacity
Own Weight
EWR-L1
1035*1008
1125 mm
70 mm
1428 mm
350 Kg
50 Kg

3. Technical Function
Rated Voltage of Motor:   DC24V
Max. Working Voltage of Motor:  DC≤31V
Max. Driving Current:   10A
Time for Retraction or Extend: 12~16S
Max Loading Capacity: 350 Kg
Max. Working Height: 300-380mm
Ramp Raising Height of Rear-end (extend fully): 55mm
Working Temperature:  -20 ~ +50 ºC
Safety Function:
Adopt anti-skid aluminum plate on the surface of platform
With sound and flashlight alarm during operation of wheelchair ramp
With danger alarm on the outer-edge of ramp
In the course of the ramp extends, if it touches any barrier, the ramp will retract automatically. For a moment, it will extend again. If this status repeats 3 times, then the ramp retracts to the rest position for safety.
The aluminum wheelchair ramps is interlocked with passenger door.
Manual Function:
When the driving motor is invalid, the ramp can be retracted manually.
4. Installation Requirements
Model
Net Width of Door
Accessible Width Under Vehicle
Accessible Height Under Vehicle
Accessible Depth Under Vehicle
Remark
EWR-L1
1010
1125
200
1500
Basic model
