• Model NO.：ES-F-T-600
• Transport Package：Carton
• Specification：CE
• Trademark：Xinder
• Origin：China
• HS Code：87089999
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. ES-F-T-600 Transport Package Carton Specification CE Trademark Xinder Origin China HS Code 87089999 Production Capacity 5000PCS/Year

Product Description

1.    INTRODUCTION
Ø  Operation
This folding electric step is controlled by motor.
This folding electric step is operated by means of a design switch which combines perfectly with the modern motor home.
Ø  Construction
All folding electric steps have aluminum frames. The step is made of anodized aluminum with safe rounded edges.
All steps are continuously tested. Maximum loading capacity is 200kg.
Ø  Safety
A switch for connection to a warning light in the vehicle is supplied as standard.
For safety, the folding contraction electric step edges are rounded and equipped with yellow sticker at front edge.
All steps have equipped with anti-slip foot boards as standard.

2.    APPLICATION
The folding contraction electric step slide-out can be mounted onto several types of vans by using our special mounting kits:
      Sliding side door and cab hinged doors
     Cars, minibuses, taxi
      Adapted vehicles for disabled vehicles
      Ambulances and accessible vehicles
      Motor caravans and campers

3.    ADVANTAGES
Ø  Extremely solid and very light weight
Ø  Attention to safety
Ø  Attractive design
Ø  Loading capacity can be 200 kg
Ø  Equipped with anti-skip platform
4.    FEATURES

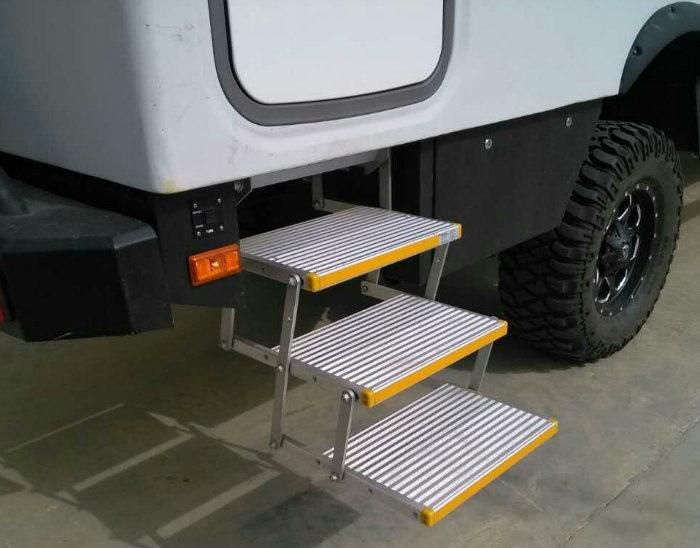

This folding electric step slide out is a unique extendable step to be fitted to the caravan. The step is opened and closed by motor and stays locked in the open or closed position by means of a click system.
Meanwhile, this step always remains securely closed during a drive.
The folding electric step slide out is easy to install and it does not take much time, working time is just about 1-2 seconds.
To make the step fit any type of chassis or to determine the height of the step, the installation brackets can be put in four different positions at the time of installation.
