• Model NO.：S-OUT-L
• Dimension：490*505*108mm
• Turning Angle：0-97°
• Own Weight：28.5kg
• Max Loading Capacity：150kg
• Time for One Cycle：6.5s
• Operation：Switch
• Volt：12 or 24V
• Transport Package：Wooden Case
• Trademark：Xinder
• Origin：Changzhou Jiangsu Province, China
• HS Code：8708999990
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. S-OUT-L Dimension 490*505*108mm Turning Angle 0-97° Own Weight 28.5kg Max Loading Capacity 150kg Time for One Cycle 6.5s Operation Switch Volt 12 or 24V Transport Package Wooden Case Trademark Xinder Origin Changzhou Jiangsu Province, China HS Code 8708999990 Production Capacity 500 Sets Per Month

Product Description

INTRODUCTION:

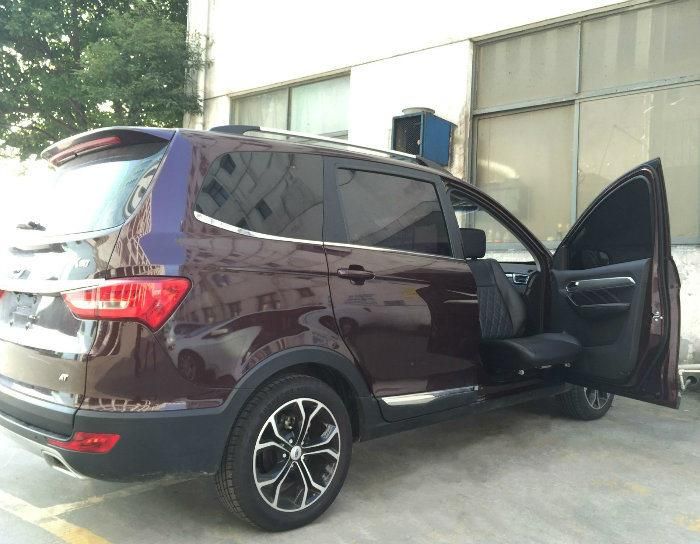

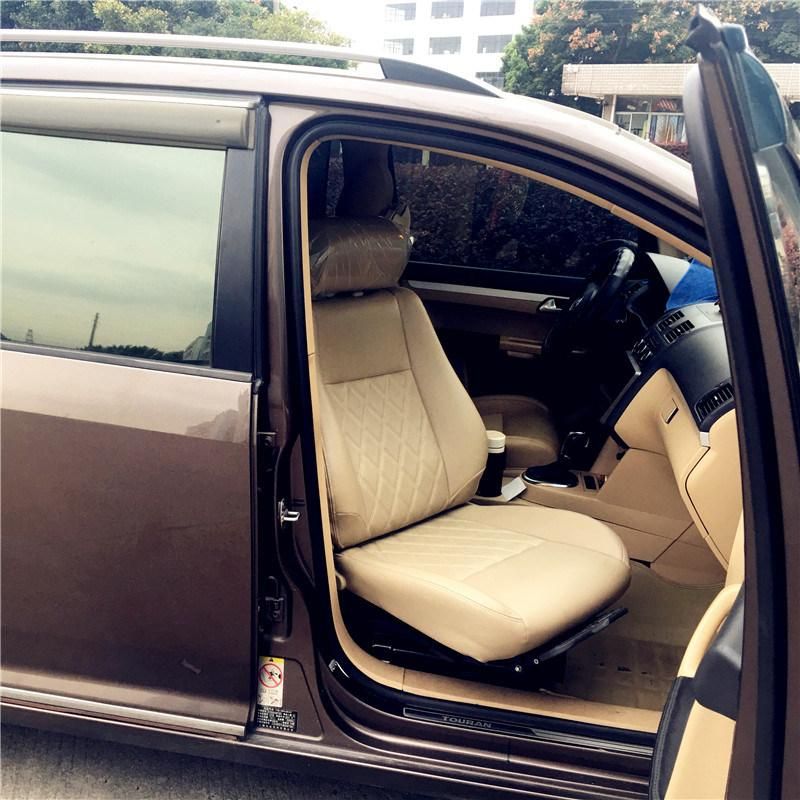

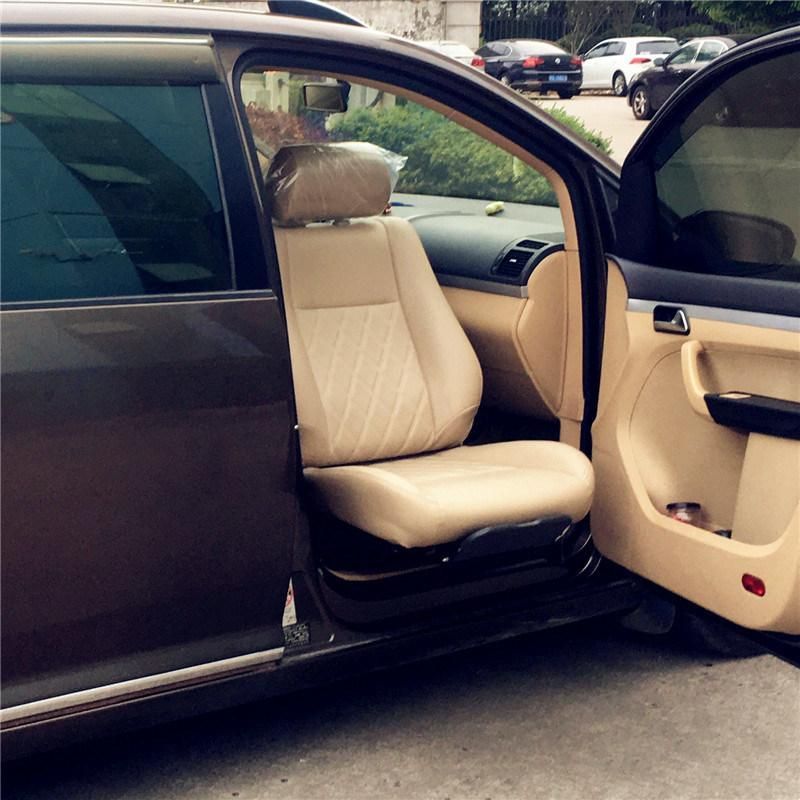

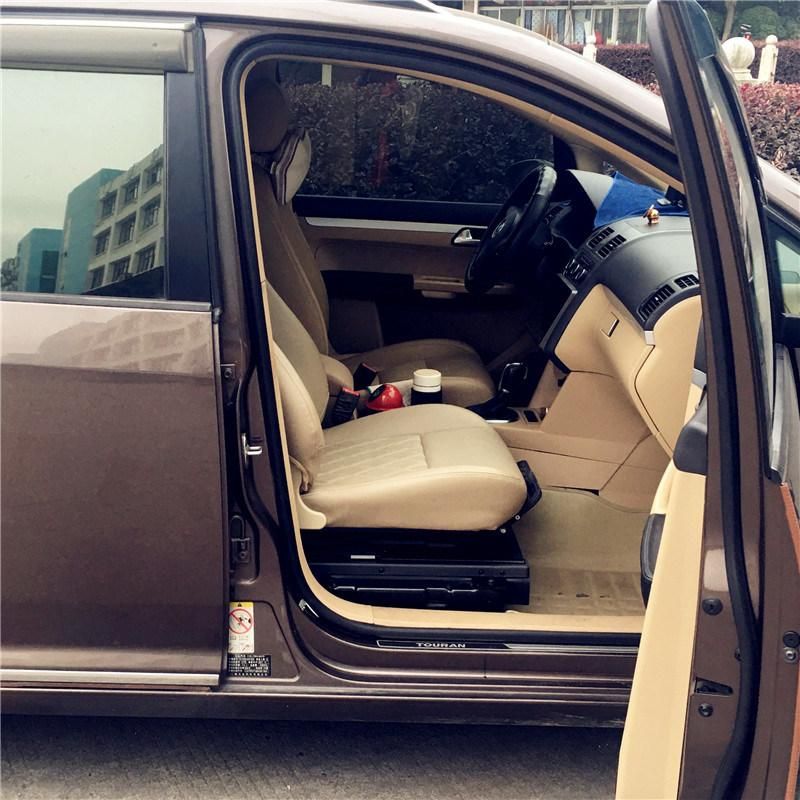

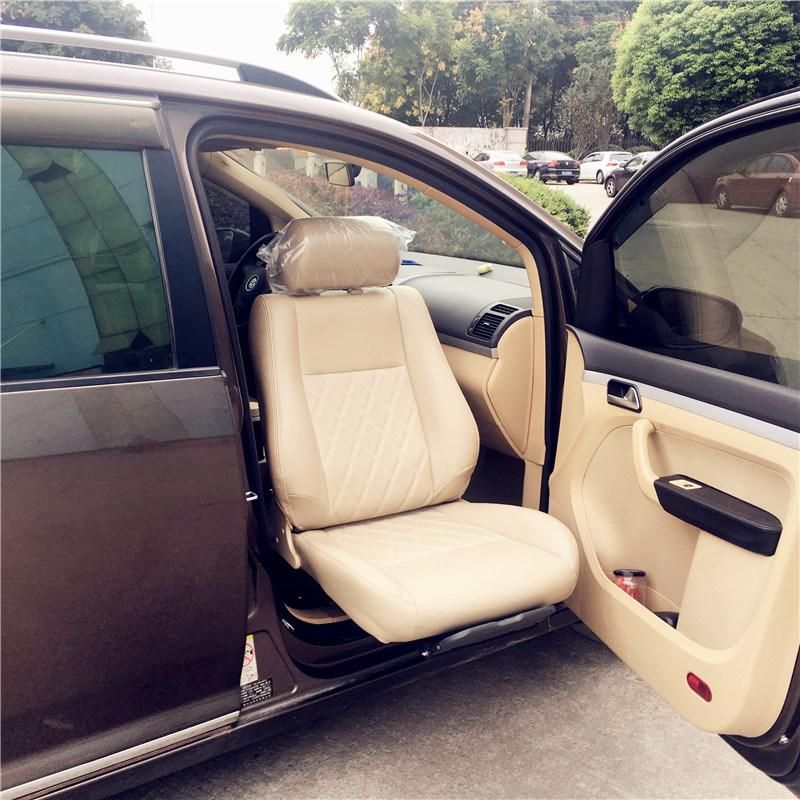

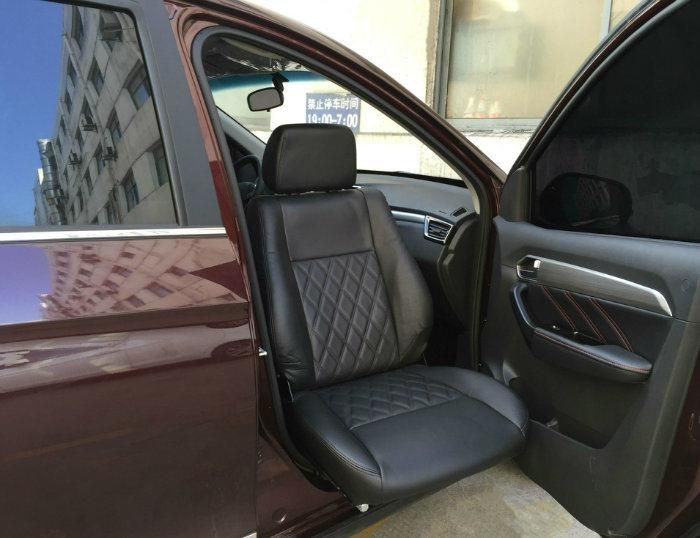

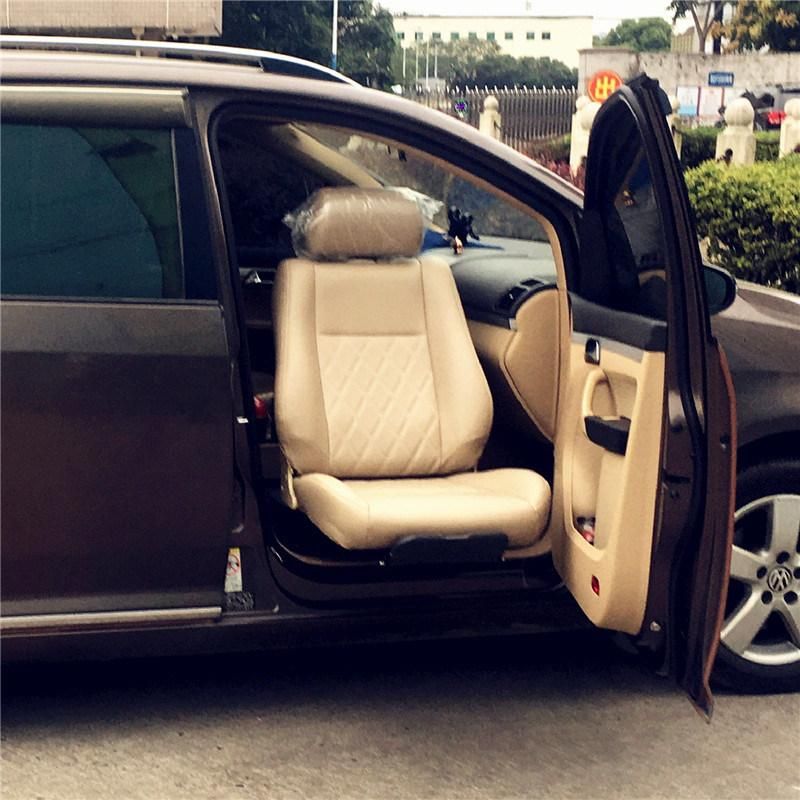

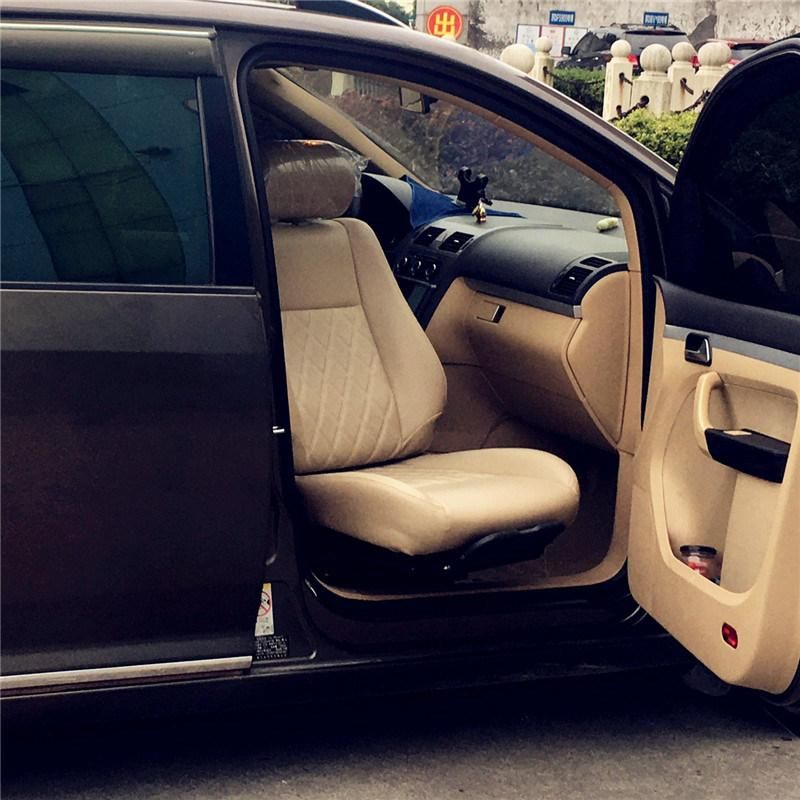

Ø The S-OUT turning seat can only be installed in the copilot position. It is to help the disabled and the old to easily get in/out of the car by automatically turning the seat 97° .
Ø The equipment can be operated by user himself with a switch to turn the seat out of /into the car automatically.
Ø The seat turning can be finished by a motor and chain. You can also let the seat move forward or backward by a cardan rod.
Ø Users may consider using our chair topper together with the equipment.

FUNCTION:
Ø Turn seat out of / into the car.
APPLICATION:
Ø Can be installed in car, SUV, minivan and etc. It is useful to the disabled and the old.
INSTALLATION:
Ø Be sure there is enough space for the seat to turn. Distance from the turning center shall not be less than 526mm.
Ø Distance from the mounting surface to doorsill shall not be less than 60mm;
Ø Distance between the seat and vehicle door shall not be less than 50mm;

OPERATION:
Ø Using a switch to turn the seat in/out of the car
