• Model NO.：ES-F-D-450
• Volt：12V or 24V
• Operation：Electric Control
• Own Weight：26kg
• Model：Es-F-D-450
• Stowing Height：410.3mm
• Transport Package：Carton or Wooden Case
• Specification：450*300
• Trademark：xinder
• Origin：Changzhou Jiansu
• HS Code：8708999990
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. ES-F-D-450 Volt 12V or 24V Operation Electric Control Own Weight 26kg Model Es-F-D-450 Stowing Height 410.3mm Transport Package Carton or Wooden Case Specification 450*300 Trademark xinder Origin Changzhou Jiansu HS Code 8708999990 Production Capacity 1000 Sets/Month

Product Description

Introductions:

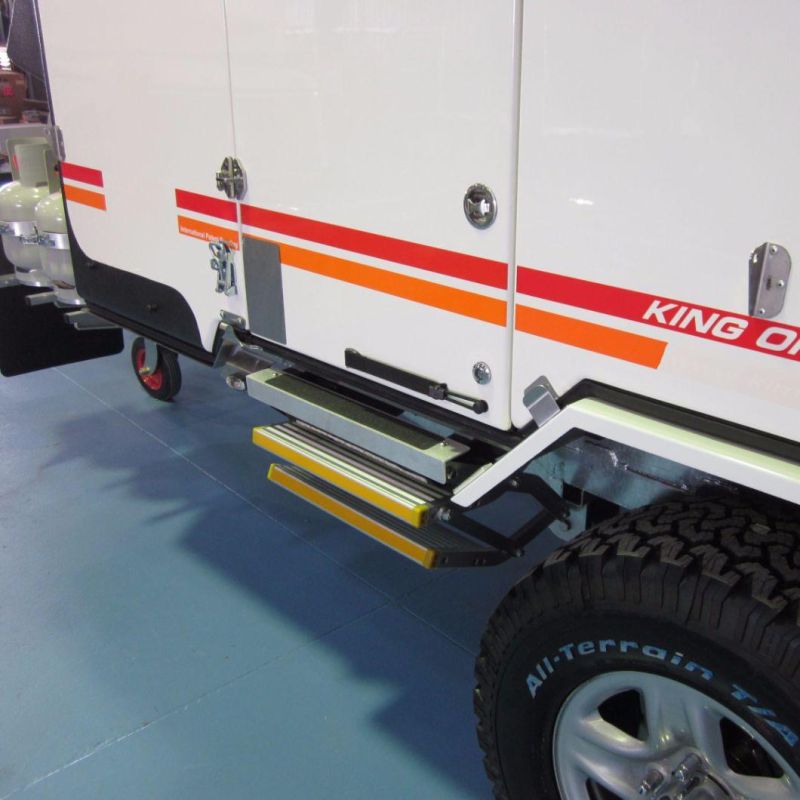

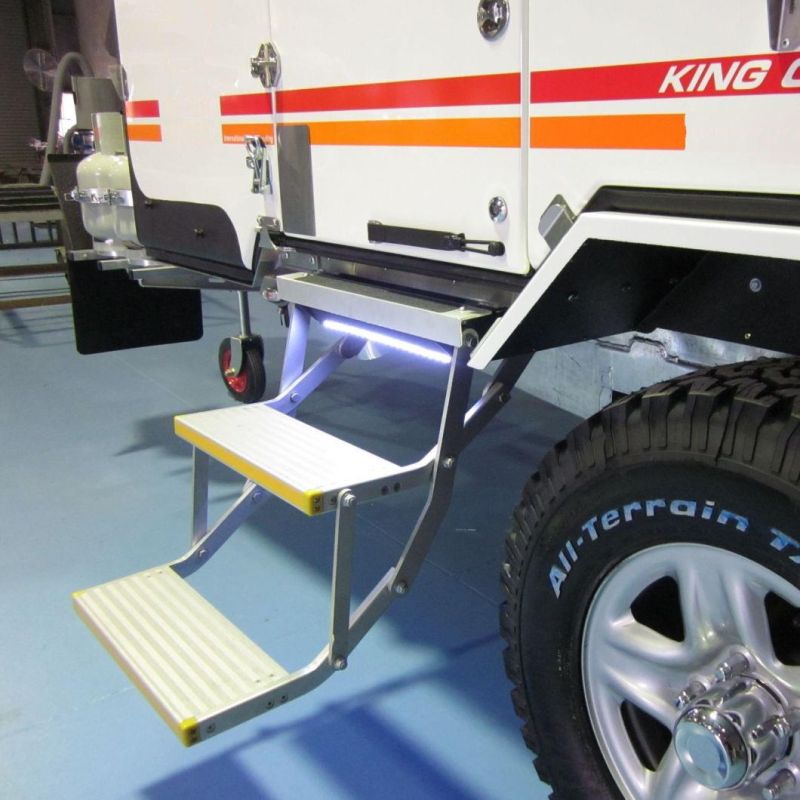

• ES-F series electric folding steps are designed to fit on range of vans, minibuses, motorhomes, ambulances and so on.

• It can help passengers to get on vehicles easily.

• It's driven by motor, voltage can be 12Vdc or 24Vdc.

• The main material is aluminum which is light and has good corrosion resistance.

• It can be operated by a switch or gang controlled by door.

• This step can work steadily, reliably and safely.

• We have single folding step, double folding step and triple folding step.

• We have different steps with several specifications, which can meet different requirements.



Advantages:

• Manual emergency function;

• Door interlock function;

• Sensitive edge;

• 15kg sensitive loading function;

• Warning sound during working

• Auto sleep mode;

• Warning in case of improper installation;

• Self-protection in case of wrong connection;

• LED and LED cover are equipped as standard;



Technical Specifications:

• Voltage: 12Vdc or 24Vdc;

• Power: 30W;

• Loading capacity: 200Kg;

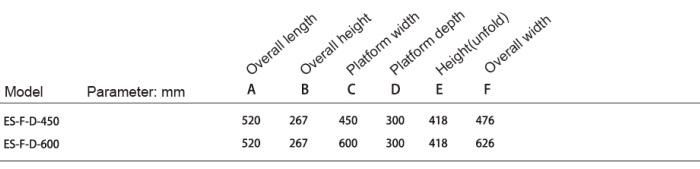

model	Platform	Overall vidth	Height (unfold)	Height (folded)	Loading capacity	Voltage	Own weight
ES-F-T-450	450*300	476	587.3	212.4	150kg	DC12V-24V	26 KG
ES-F-T-600	600*300	626	587.3	212.4	150kg	DC12V-24V	30 KG
