• Model NO.：WL-D-880S
• Max Working Pressure：14 MPa
• Max Floor Height：880mm
• Operation：Electric (Hand Pump Backup)
• Platform：Folds When Stowed
• Certificate：Ce
• Application：Van, Minivan, Minibus, Car
• Transport Package：Wooden Case
• Specification：140KG
• Trademark：Xinder
• Origin：Jiangsu, China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. WL-D-880S Max Working Pressure 14 MPa Max Floor Height 880mm Operation Electric (Hand Pump Backup) Platform Folds When Stowed Certificate Ce Application Van, Minivan, Minibus, Car Transport Package Wooden Case Specification 140KG Trademark Xinder Origin Jiangsu, China HS Code 8428909090 Production Capacity 10000

Product Description

Introductions:

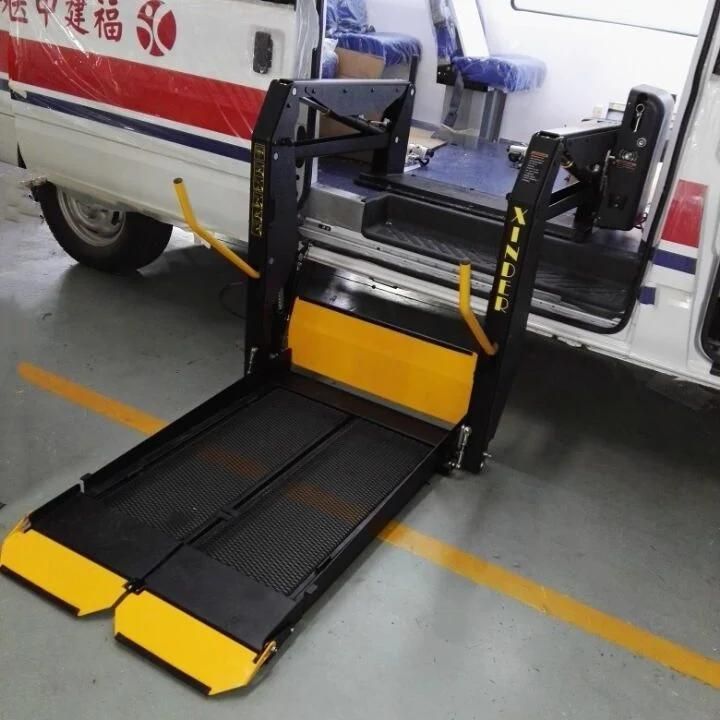

• This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

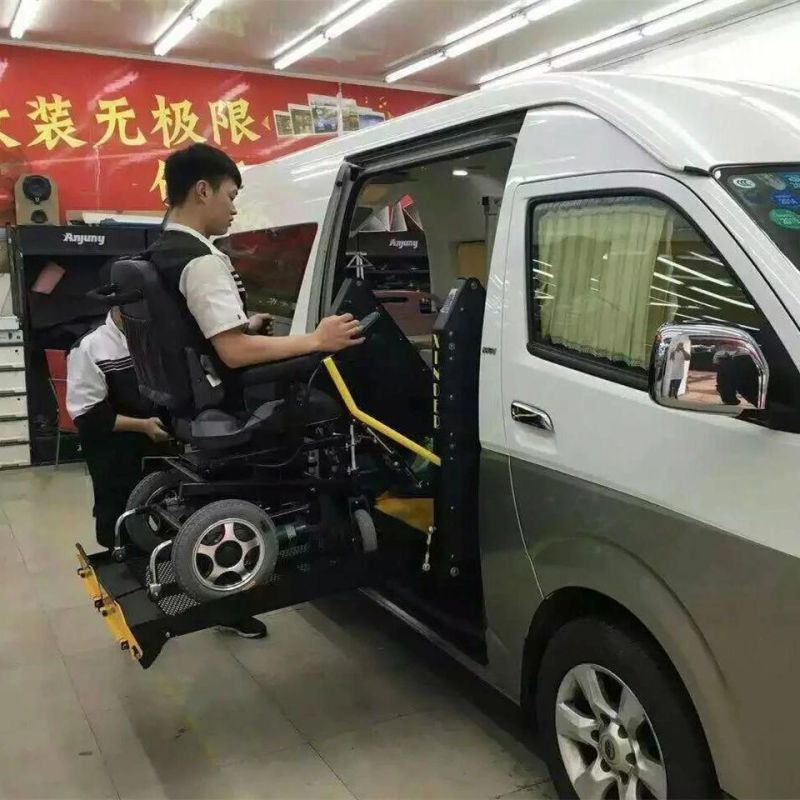

• It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

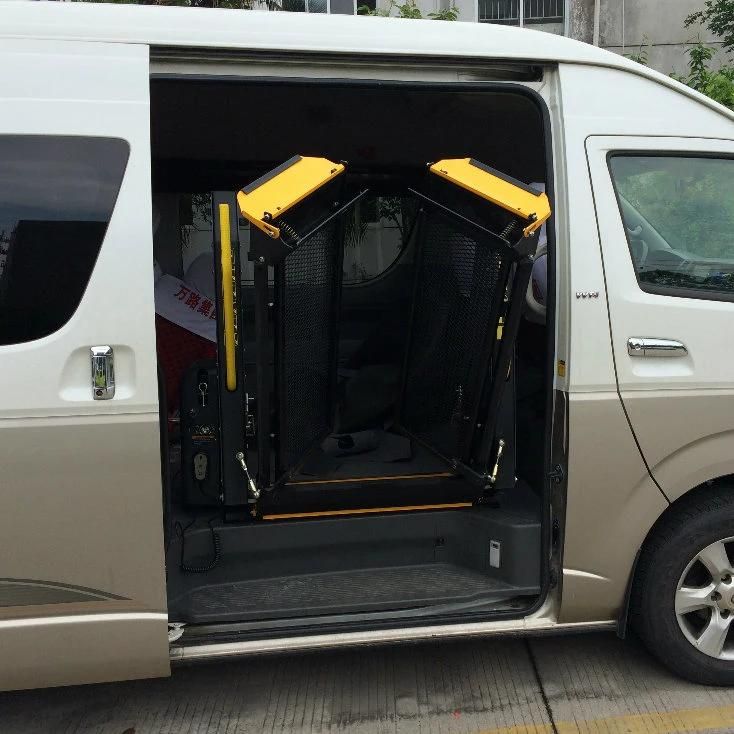

• This wheelchair lift can be installed at the rear door or side door.

• Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

• DN-880S wheelchair lift has split platform;

• Provides good visibility both for driver and passengers when stowed;

• Operated by the wired remote control or by your mobilephone;

• It also can be operated manually for emergency;

• CE certified;

• Loading capacity:300kg;

Advantages:

• Split platform provides clear path and good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• CE certificated;

• High-gloss polyester powder coat finish to prevent corrosion;

• Can be controlled by your mobilephone (option);

Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 300kg;
