3.2mm Tempered Solar Glass
Beijing Northglass Technologies Co., Ltd.- Type：Low Iron Solar Glass
- Certification：ISO, CE, GB, Igcc, Bs, etc
- Glass：Safety Glass
- Various Size：Can Manufacture as Required
- Free Samples：3-7 Days
- Edge Treatment：Polished or Grinded Edges
Base Info
- Model NO.：Tempered glass solar panel
- Certificate：CE, Bis, En, etc
- Solar Glass：Tempered Solar Glass or Solar Glass
- Transport Package：Strong Plywood Crate for Export
- Specification：CE, ASTM, CSI, etc
- Trademark：Northglass
- Origin：China
- HS Code：7005290090
- Production Capacity：5000m2,Week
Description
Basic Info.
Model NO. Tempered glass solar panel Certificate CE, Bis, En, etc Solar Glass Tempered Solar Glass or Solar Glass Transport Package Strong Plywood Crate for Export Specification CE, ASTM, CSI, etc Trademark Northglass Origin China HS Code 7005290090 Production Capacity 5000m2/WeekProduct Description
3.2 Tempered Solar GlassWe provide the following two types of the solar glass:
Tempered low iron patterned solar glass
Annealed low iron patterned solar glass
Melting capacity: 300 tons /day (22, 000SQM/day)
Specifications:
1. Thickness: 3.2mm_12mm Tolerance: ± 0.2mm (3.2mm & 4mm)
2. Dimension: Max. 2250mm *3500mm(annealed)
1219mm *1930mm(tempered)
3. Pattern: Prismatic/matt-finished; Matt-finished/matt-finished
4. Solar transmittance:
(3.2mm polished samples ISO9050/2003)≥ 91.7%
5. Iron content: ≤ 120ppmFe2O3
6. Poisson's Ratio: 0.2
7. Density: 2.5g/CC
8. Young's Modulus: 73 GPa
9. Tensile Strength: 42MPa
10. Hemispherical Emissivity: 0.84
11. Expansion Coefficient: 9.03x 10-6/º C
12. Softening Point: 720º C
13. Annealing Point; 550º C
14. Strain Point: 500º C
Standards and Certificates:
1. JIS B7502/B7512/R3106
2. ASTM-E-903-96/C1048.04
3. EN12150/DIN1249D
4. GB15763.2-2005
Tempered Solar Glass takes full advantages of the diffuse reflection of the pattern to decrease the light reflection, thus Low Iron Solar Glass has a very high solar transmittance at any angle incidence. Meanwhile, the low iron content of less than 120 ppm enables a very low solar absorbance by the glass itself, and on the contrary increases the transmittance. With the non-toxic chemical composition, low iron patterned solar glass completely conforms to the rigorous environmental requirement of Europe, USA and Japan. It is the ideal encapsulation material for solar panels (PV modules) and the flat solar thermal products.
Certificates:

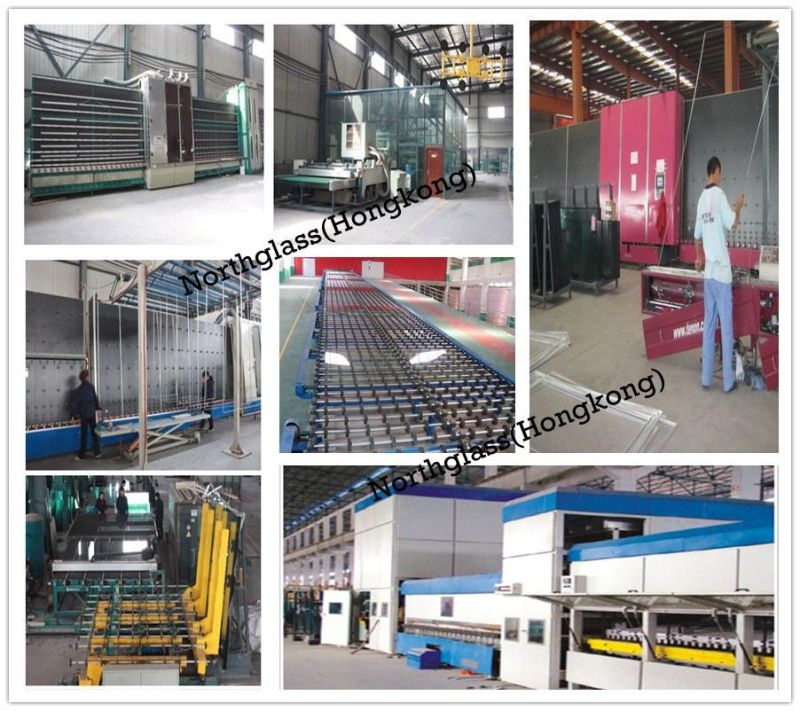

Factory situation:
