• Model NO.：X-803-1
• Pack Size：32*27*15cm
• Own Weight：5kg
• Color：Black
• Transport Package：Carton Case
• Specification：5kg
• Trademark：XINDER
• Origin：China
• HS Code：8708999990
• Production Capacity：1000

Basic Info.

Model NO. X-803-1 Pack Size 32*27*15cm Own Weight 5kg Color Black Transport Package Carton Case Specification 5kg Trademark XINDER Origin China HS Code 8708999990 Production Capacity 1000

Product Description

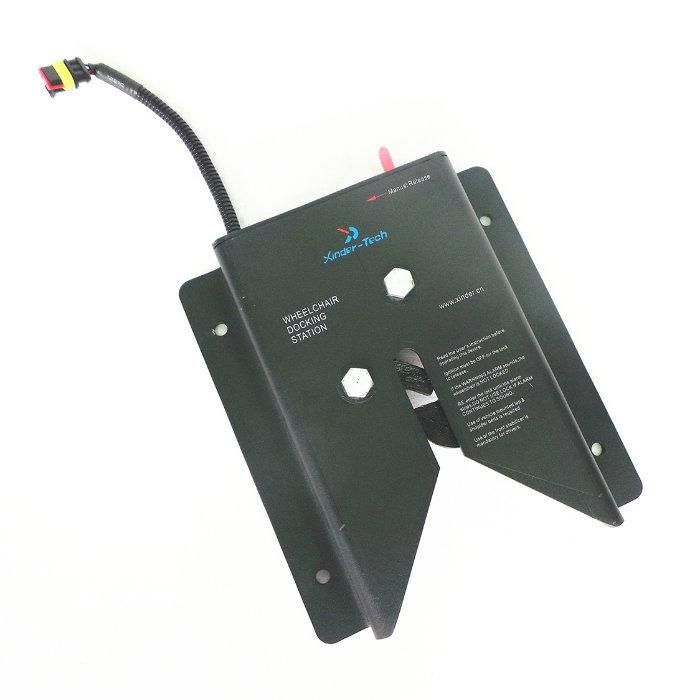

1. Wheelchair restraint system can ensure safety of wheelchair by a simple way during vehicle running, easy operation. When the wheelchair drive into docking system and the lock pin on wheelchair insert into lock fixed on floor, it will be locked automatically. If you want to leave docking system, you just need to push release switch to release lock. The advantage of wheelchair docking system is that it needn't safety belt and constrain wheelchair by retractor or safety belt.

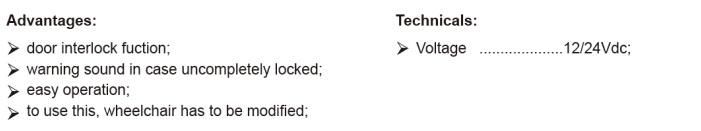

2. Characteristics
Ø Safety, the lock can only be released when ignition is OFF. In case wheelchair passenger be injured when driver push release switch wrongly during running.
Ø If the wheelchair is not locked, the warning alarm sounds. Only when wheelchair is locked, the warning alarm stops.

3. Operating Guide
Wheelchair docking system is easy and simple to use. When we push the wheelchair into the vehicle, the pin into the docking system, the front wheelchair bracket is locked, and then the wheelchair is fixed. Release the docking system, press the switch lightly, the docking system will be unlocked, and you can pull out the wheelchair with safety.
