• Model NO.：X-801-1
• Optional Accessory：Shoulder Belt
• Operation：Manual
• Certificate：Is0-10542-2
• Partking List：4 Retractors, 4 Surface Track
• Transport Package：Carton(320*270*150mm)
• Specification：ISO 10542-2
• Trademark：Xinder
• Origin：Changzhou Jiangsu Province, China
• HS Code：8708999990
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. X-801-1 Optional Accessory Shoulder Belt Operation Manual Certificate Is0-10542-2 Partking List 4 Retractors, 4 Surface Track Transport Package Carton(320*270*150mm) Specification ISO 10542-2 Trademark Xinder Origin Changzhou Jiangsu Province, China HS Code 8708999990 Production Capacity 1000 Sets Per Month

Product Description

Introductions:

• Wheelchair Restraint System is the wheelchair & occupant secure system which installed on vehicle.

• Each component is designed, engineered and tested to work as one cohesive system.

• In the event of collision or sudden stop, this system isolates the forward forces of the occupant from those of their chair by directing the chair's forces to the vehicle floor.

• There is self-adjusting and self-tensioning equipment which can offer an easy, quick and flexible solution to securing wheelchairs.

• These systems are the easy and fast securing 4-point systems, reducing vehicle wait times for transportation.

• It has passed the test of ISO 10542-1:2012.

• Wheelchair securement systems should be installed at right place so that other spare parts of vehicle are not within the frontal clear space, except for other spare parts that are effectively padded. Clear space requirements for securement system are based on the potential movements of the occupant during a crash.



Advantages:

• Mechanical automatic tightening belts;

• Standard equipped with lap belt;

• Optional shoulder belt is available;

• Rubbers seal the tracks when not in use;

• Easy operation reduces vehicle waiting times for transportation;

C. PARTS LIST

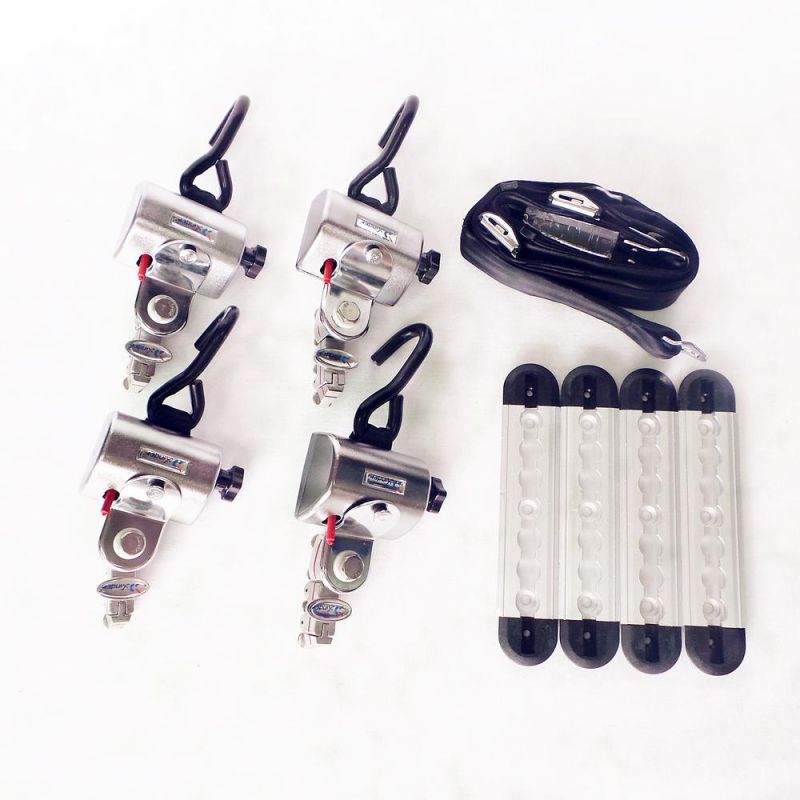

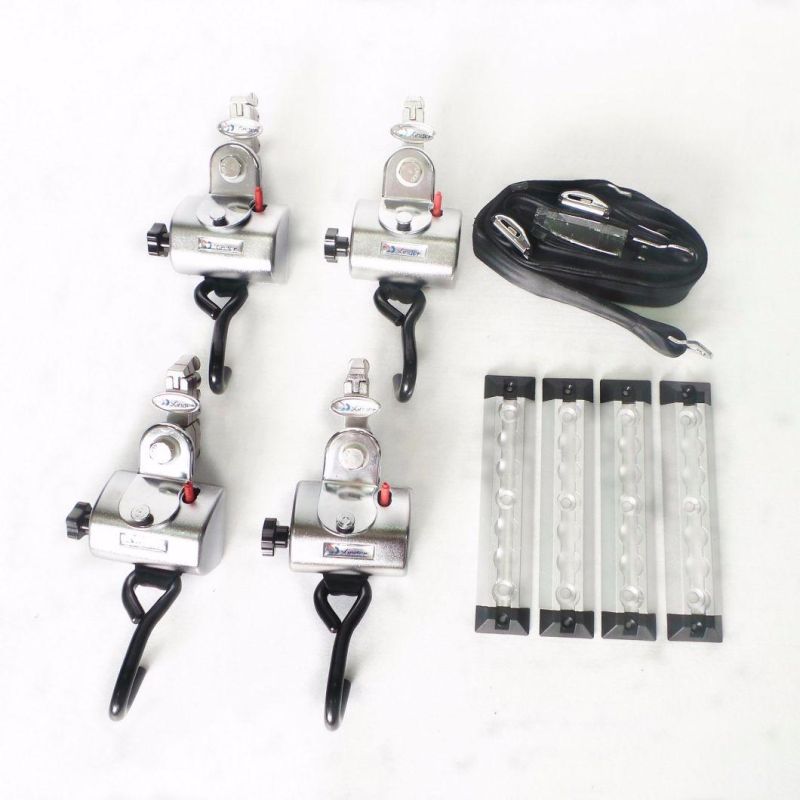

A common wheelchair tie-down system contains:
Ø 4 Wheelchair Restraints (Retractors)
Ø 1 Lap belt
Ø 4 Floor Anchorages (surface track)
Ø 8 end of surface track
Ø 1 Warranty card
Ø 1 Operating manual
Ø Option: Shoulder Belt

Note:
The shoulder belt is the option of wheelchair tie down system, which is not in the parts list. If you need it, you should inform us and pay for it.
