• Model NO.：EWR-L7-S
• Loading Capacity：350kgs
• Rated Voltage of Motor：DC24V
• Time for Retraction or Extend：12~16s
• Max. Driving Current：10A
• Max. Working Height：300-380mm
• Net Width of Door：1010
• Model：Ewr-L7-S
• Safety：Sensitive Platform
• Transport Package：Wooden Case
• Specification：50KG
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8708999990
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. EWR-L7-S Loading Capacity 350kgs Rated Voltage of Motor DC24V Time for Retraction or Extend 12~16s Max. Driving Current 10A Max. Working Height 300-380mm Net Width of Door 1010 Model Ewr-L7-S Safety Sensitive Platform Transport Package Wooden Case Specification 50KG Trademark Xinder Origin Changzhou Jiangsu China HS Code 8708999990 Production Capacity 500 Sets Per Month

Product Description

A. INTRODUCTION

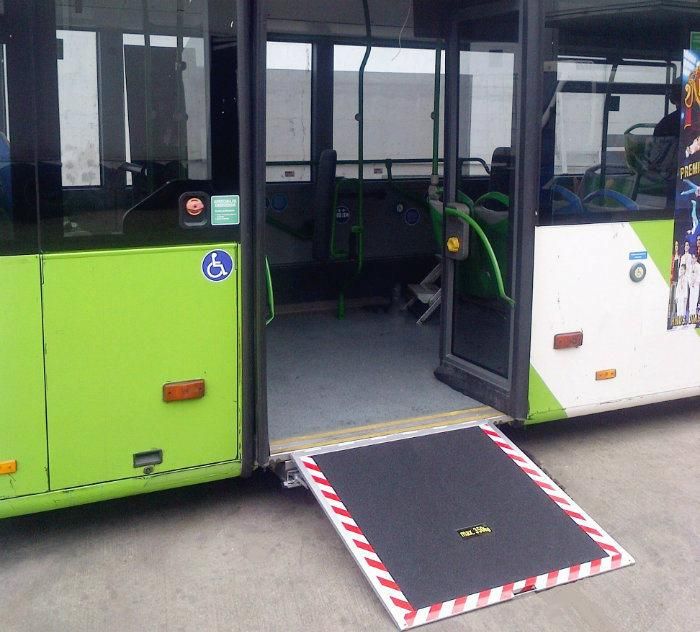

Electric Wheelchair Ramp can be applied on low-floor city bus and installed underside of passenger door step. When vehicle arrives at stop, the driver control the switch, and then platform can be extended and retracted smoothly. When the platform reach working position, the rear-end of ramp will raise automatically to eliminate height of threshold of passenger door so as to ensure rear-end of platform level up to vehicle floor, convenient for wheelchair to access vehicle.
This bus ramp has got two patents.

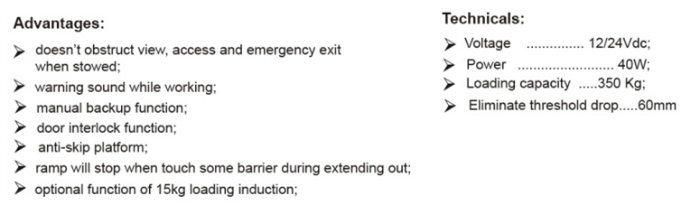

B. Safety Function:

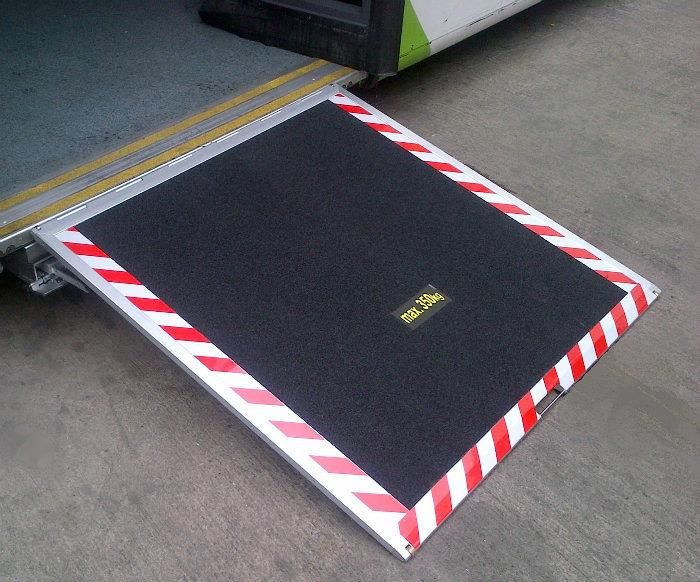

1. Adopt anti-skid aluminum plate on the surface of platform
2. With sound and flashlight alarm during operation of wheelchair ramp
3. With danger alarm on the outer-edge of ramp
4. In the course of the ramp extends, if it touches any barrier, the ramp will retract automatically. For a moment, it will extend again. If this status repeats 3 times, then the ramp retracts to the rest position for safety.
5. The aluminum wheelchair ramps is interlocked with passenger door.



C. Manual Function:
In case that the driving motor doesn't work, the ramp can be retracted manually.

Model	Platform Net Size	Overall Width	Thickness	Overall Length	Loading Capacity	Own Weight
EWR-L7-S	1005*1007	1130 mm	70 mm	1408 mm	350 Kg	50 Kg
