• Model NO.：ES-S-600
• Loading：250kg
• Platform Size：450*300,750*300,600*300,
• LED：Equipted as Standard
• Transport Package：Carton Case
• Specification：450*300 (L*W)
• Trademark：Xinder
• Origin：China
• HS Code：870899999
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. ES-S-600 Loading 250kg Platform Size 450*300/750*300/600*300/ LED Equipted as Standard Transport Package Carton Case Specification 450*300 (L*W) Trademark Xinder Origin China HS Code 870899999 Production Capacity 5000PCS/Year

Product Description

INTRODUCTION

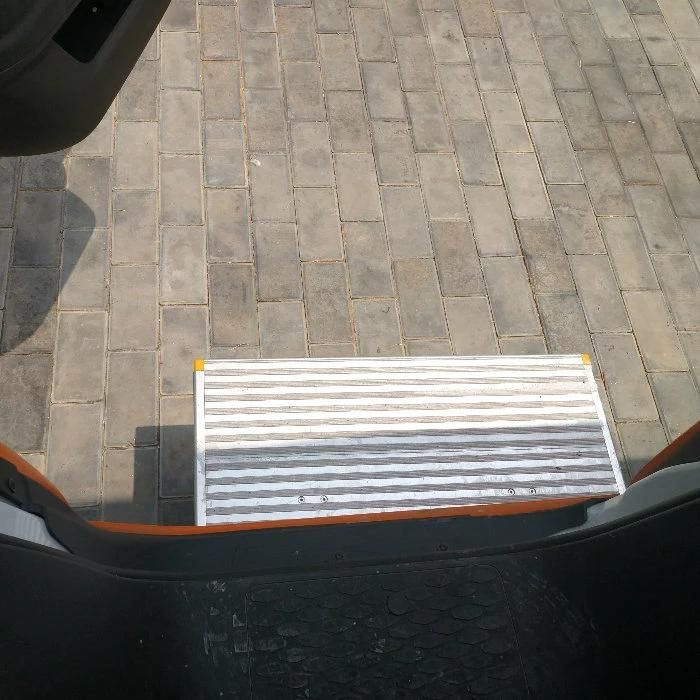

ES series electric step is a kind of equipment which can help passengers get into vehicles, such as cars, public bus, taxi, ambulance and so on. This step, with loading capacity of 250 kg, can work steadily, reliably and safely.
We have different steps with several specifications, which can meet different requirements.
This step has a frame with thickness of only 65mm, and it is also suitable for the low-floor vehicle. The operation can be electric or manual. Electric operation is done by remote control.
ES is a kind of electric steps. It is designed to fit a vast range of accessible vehicles, cars, minibuses, taxis and ambulances.

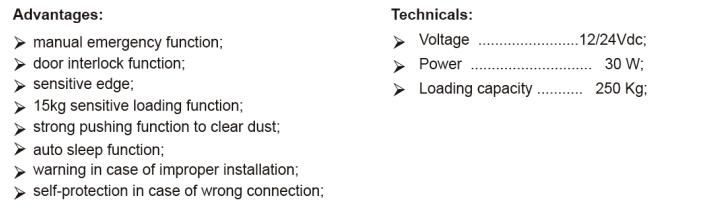

Description:

Small frames, downy line, smooth platform and easy operation
Reduce the floor height to make entrance easy
Operated by the driver or attendant.
Rated voltage is 12V-24V
Waterproof connectors
If door is closed, this step will stow automatically
If there is an obstruction when extending, the step will stow automatically.
Can be operated fully automatically, that is to say, when door is open, this step will extend; When door is closed, this step will retract
There is sound and light for warning during working
There is interlock function, which can interlock with vehicle brake
Can be stowed for emergency
Has been tested 100000 cycles
Test weight is 500kg

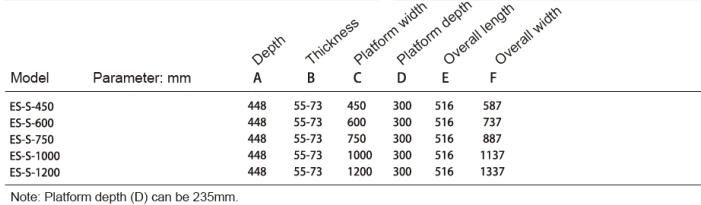

Model	platform size	loading capacity	volt	own weight
ES-S-450	450*300	250kg	12V or 24V	17kg
ES-S-600	600*300	250kg	12V or 24V	20KG
ES-S-750	750*300	250kg	12V or 24V	25KG
ES-S-1000	1000*300	250kg	12V or 24V	32KG
ES-S-1200	1200*300	250kg	12V or 24V	44KG
