• Model NO.：wiper
• Driving Type：Electrical
• Size：14"
• Application：Boat
• Brand：Matchau
• Transport Package：Case
• Specification：aluminium alloy
• Trademark：MATCHAU
• Origin：Jiangsu, China
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. wiper Driving Type Electrical Size 14" Application Boat Brand Matchau Transport Package Case Specification aluminium alloy Trademark MATCHAU Origin Jiangsu, China Production Capacity 10000PCS/Month

Product Description

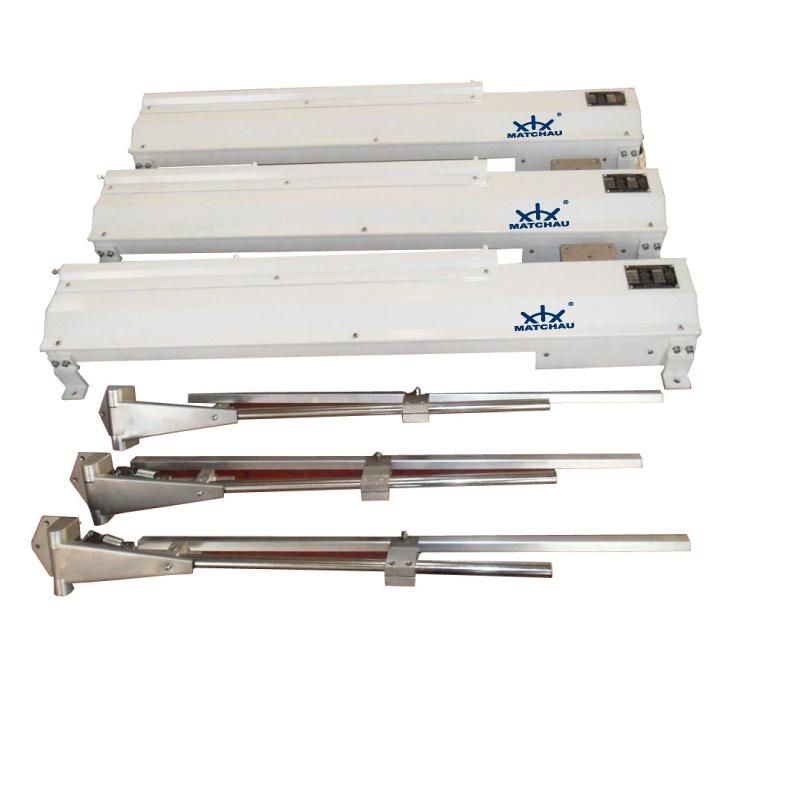

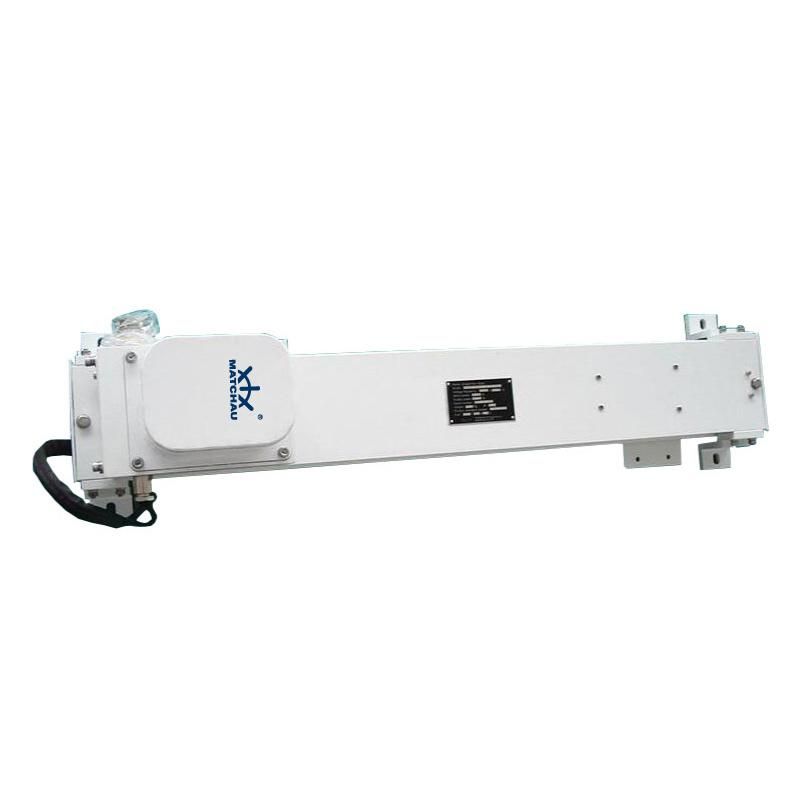

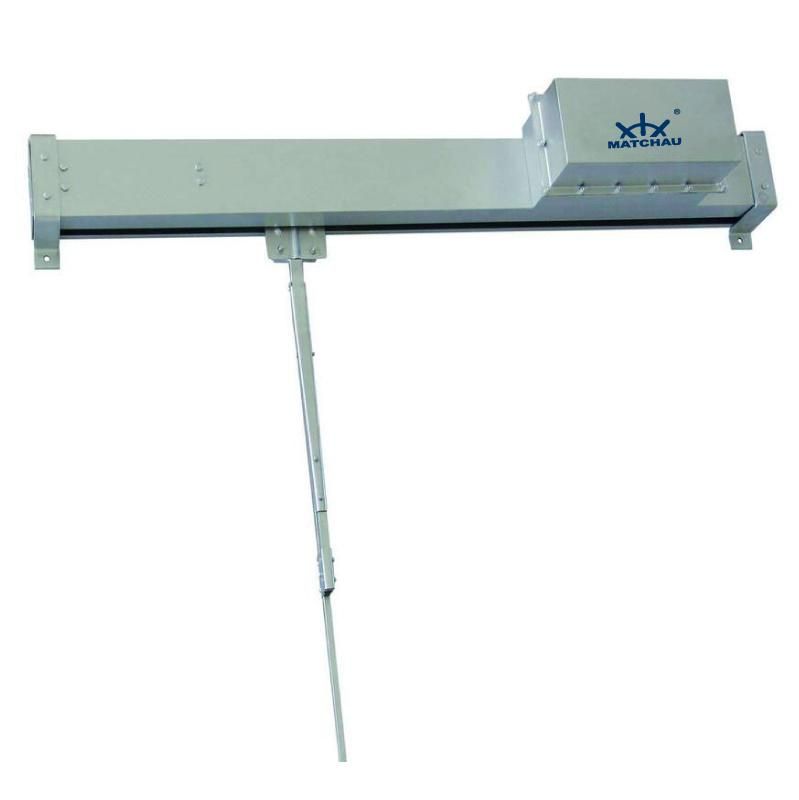

Electric Aluminium Alloy Window Wiper for Boat and Ship

1).Product Description:

The marine translating wiper is a product used for clearing rain and snow on the ship's cab and operation shop porthole. It uses the speed-regulating motor as the main power source and the aluminum alloy shell as the guide rail to transmit the deceleration and transmission mechanism. Power, driving the rubber scraper at the lower end of the stainless steel scraper arm, parallel reciprocating scraping on the porthole glass, so that the porthole can have a clear view when it rains, the waves beat, and the snow falls.

2).The main technical parameters:

1. Supply voltage: AC 220 V, AC 110 V

2. Power frequency: 50/60 HZ

3. Wiping speed: 0.3~1.2 m / s

4. Motor input power: 90 W

5. Heater power: 80 ~ 450 W (adjusted according to the length of the stroke)

6. Degree of protection: body housing - I P 5 6 ; control box - I P 2 3

7. Control box size: length × width × depth (unit: mm)

 (135~398)×(110~128)×200

8. Main functions: stepless speed regulation, intermittent time adjustment, synchronization function (≥2 units), stop reset.

9. Optional components: heating, water spray, double scraping.
