• Model NO.：EWR-L7-S
• Certification：CE
• Own Weight：50kg
• Mounting Thickness：70mm
• Transport Package：Plywood Case

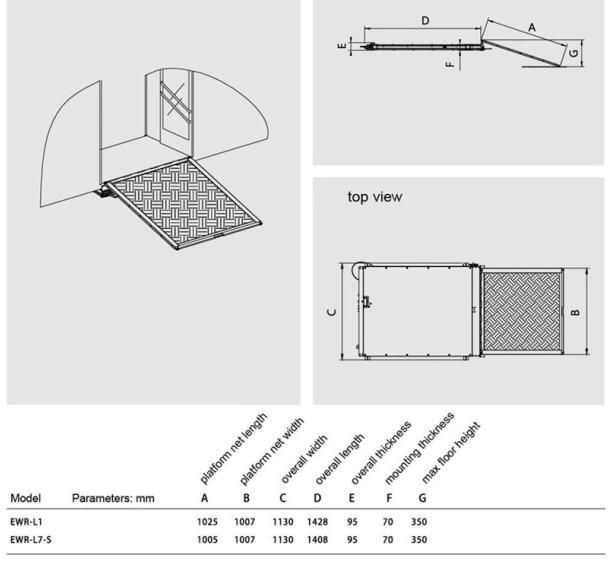

• Specification：1130*1389mm
• Trademark：xinder
• Origin：China
• HS Code：87089999
• Production Capacity：100sets,Month

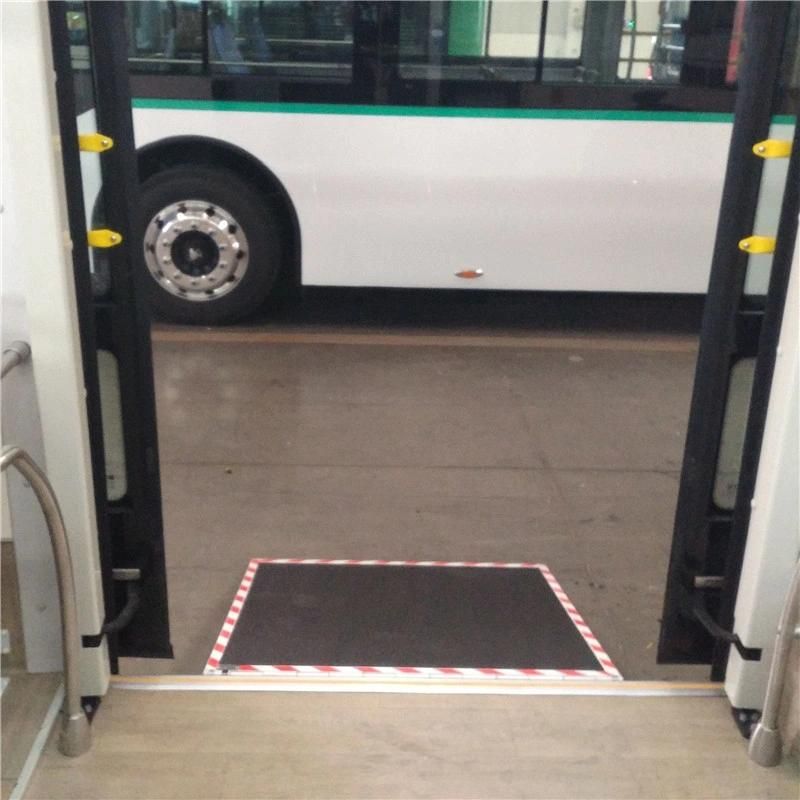

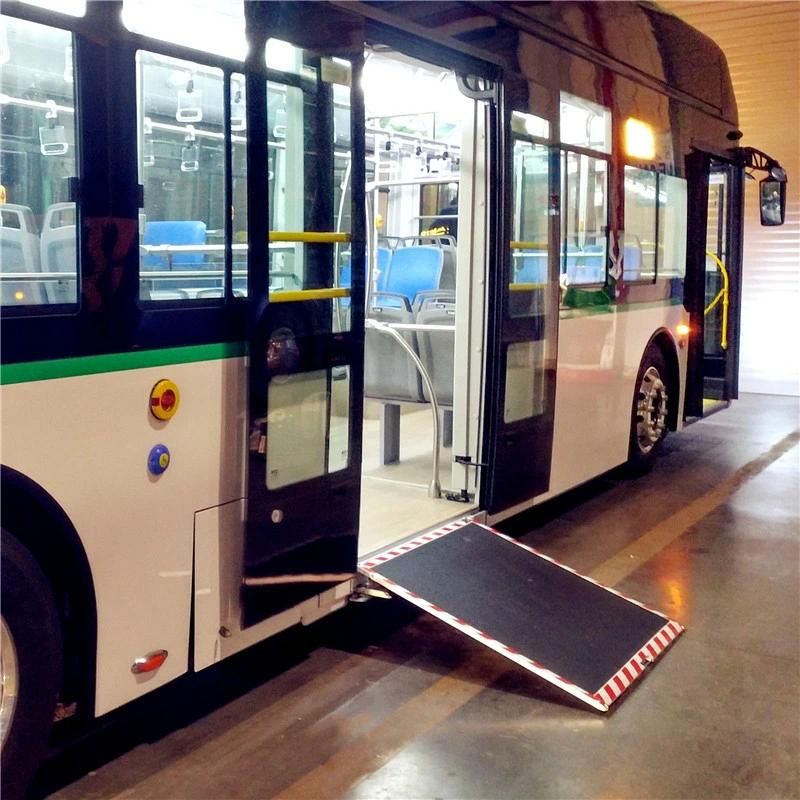

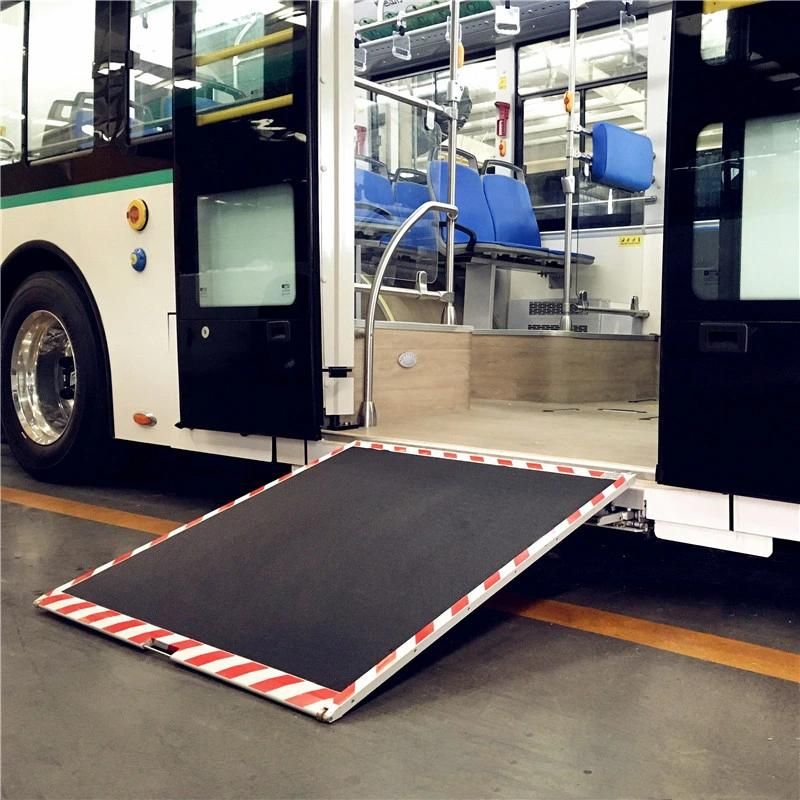

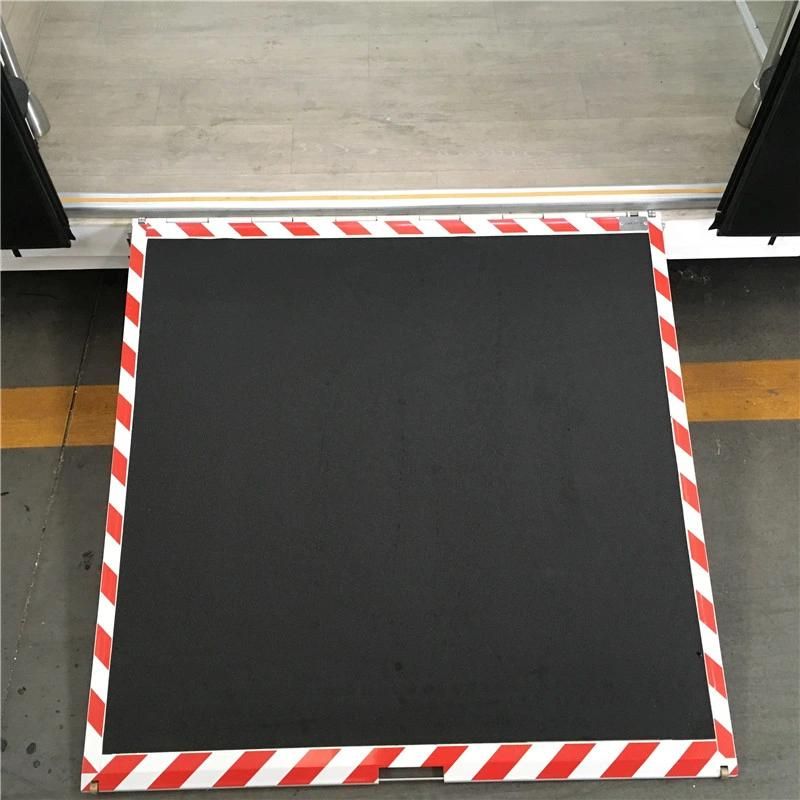

EWR-L electric wheelchair ramp is designed for low floor bus to help a person to enter bus comfortably and easily while seated in a wheelchair.

installed under bus chassis, it doesn't obstruct view, access and emergency exit.

it is conrolled by a switch.

Main material is aluminum, light and with high corrosion resistance.

# doesn't obstruct view, access and emergency exit when stowed.

# warning sound while working

# manual backup function

# door interlock function

# anti-skip platform

# ramp will stop when touch some barrier during extending

# optional function of 15kg loading induction

# voltage: 12/24v

# power: 40W

# loading capacity: 350kg

# eliminate threshold drop: 60mm

Detailed
