• Model NO.：BMWR-201
• Height When Stowed：1050mm
• Type：Car Pedal Pad
• Bumper Position：Rear Bumper
• Transport Package：Wooden Box
• Specification：40KG
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：84289090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. BMWR-201 Height When Stowed 1050mm Type Car Pedal Pad Bumper Position Rear Bumper Transport Package Wooden Box Specification 40KG Trademark xinder Origin Jiangsu. China HS Code 84289090 Production Capacity 1000 Sets/Year

Product Description

Introductions:

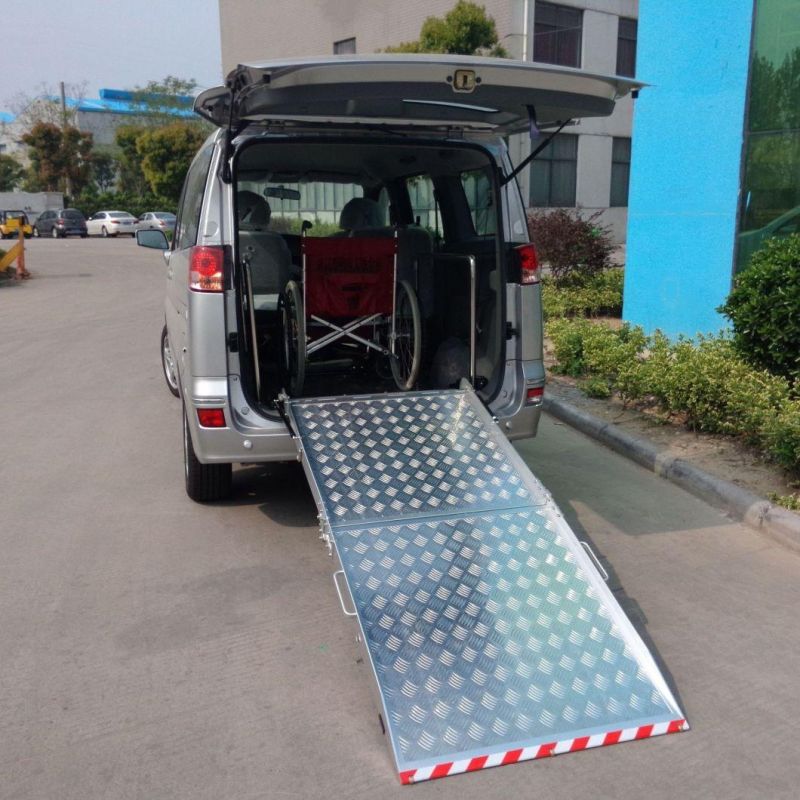

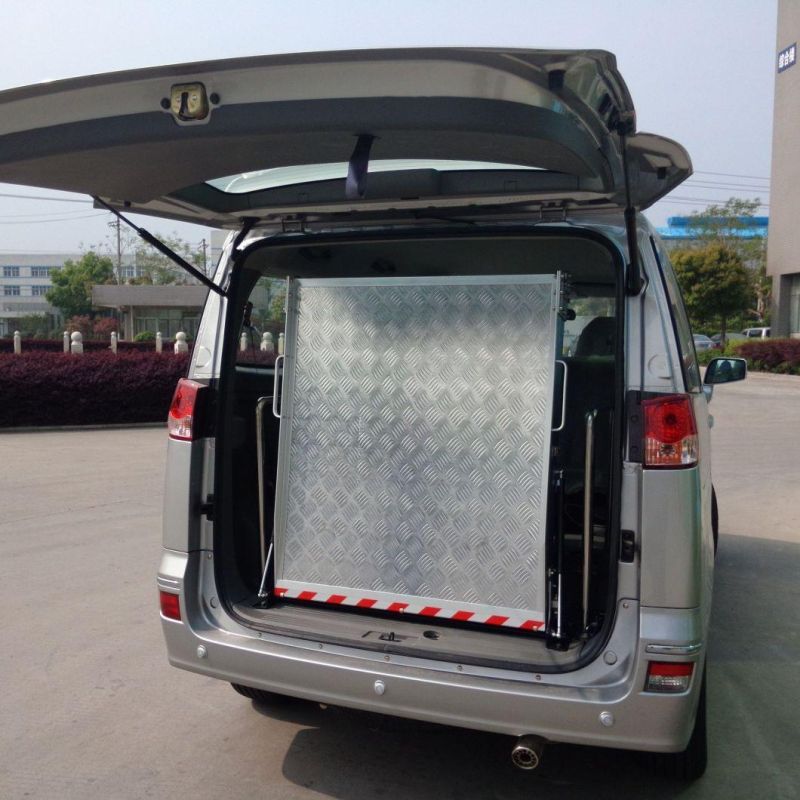

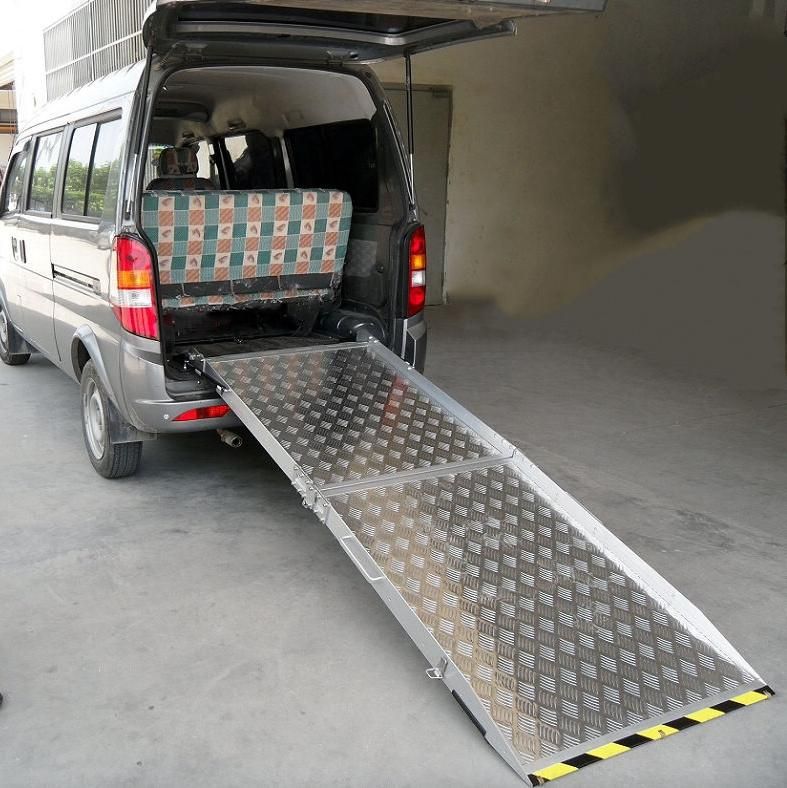

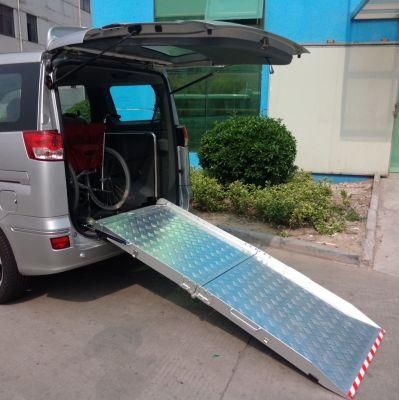

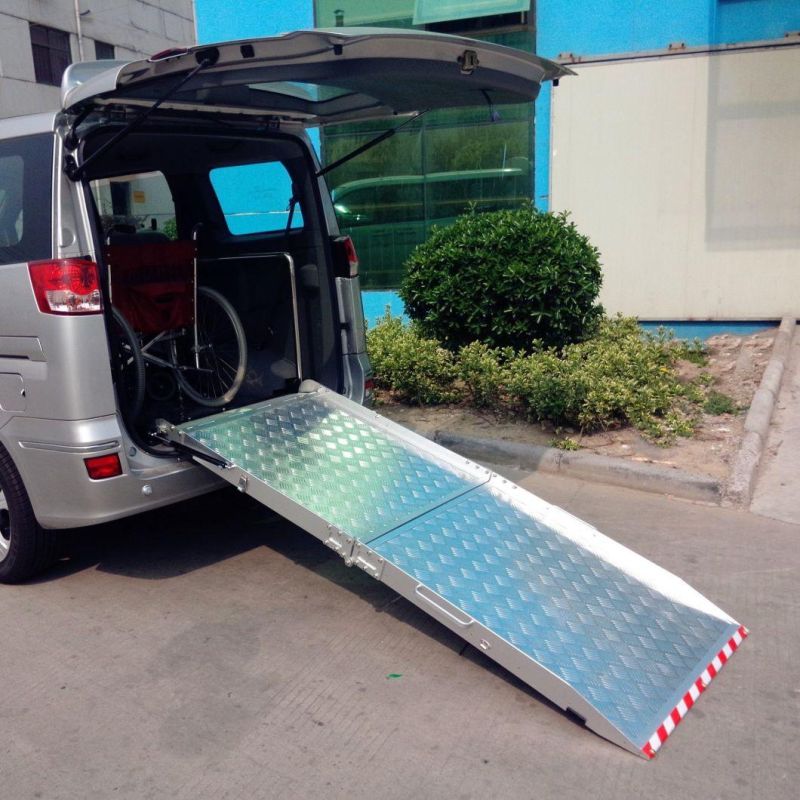

• BMWR-2  wheelchair ramp is a kind of manual ramp, which can be used for rear door of commercial vehicle.

• It can help a person to get on vehicle easily and comfortably while seated in a wheelchair.

• This ramp consists of two honeycombs plates which are hinged joint to fold and unfold.

• Main material is aluminum which is light and with high corrosion resistance.

Advantages:

• easy operation;

• anti-skip platform;

Technical Specifications:

• Loading capacity: 350kg



model	platform	overall width	overall length	overall height	loading rate	own weight
BMWR-201	1910*810mm	880mm	265mm	1050mm	350kg	40 kg
