• Model NO.：WL-D-880
• Space Required：1200*1200mm (Rear Door, L*W)
• Packing Size：1200*600*1400mm
• Box：Wooden Case
• Own Weight：135kg
• Transport Package：Wooden Case
• Specification：CE certificate
• Trademark：XINDER
• Origin：Jiangsu. China
• HS Code：84289090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. WL-D-880 Space Required 1200*1200mm (Rear Door, L*W) Packing Size 1200*600*1400mm Box Wooden Case Own Weight 135kg Transport Package Wooden Case Specification CE certificate Trademark XINDER Origin Jiangsu. China HS Code 84289090 Production Capacity 5000PCS/Year

Product Description

Introductions:

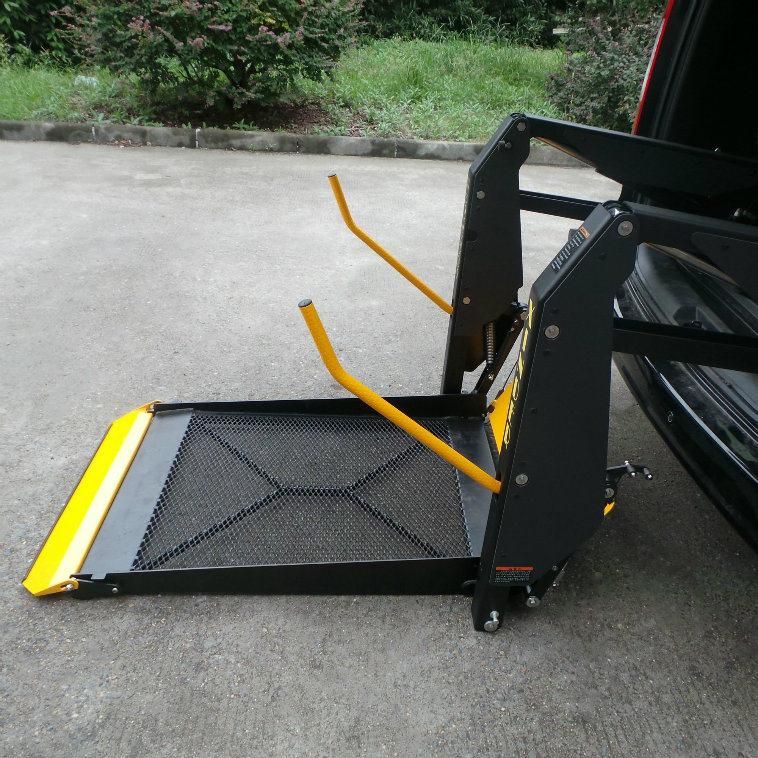

This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

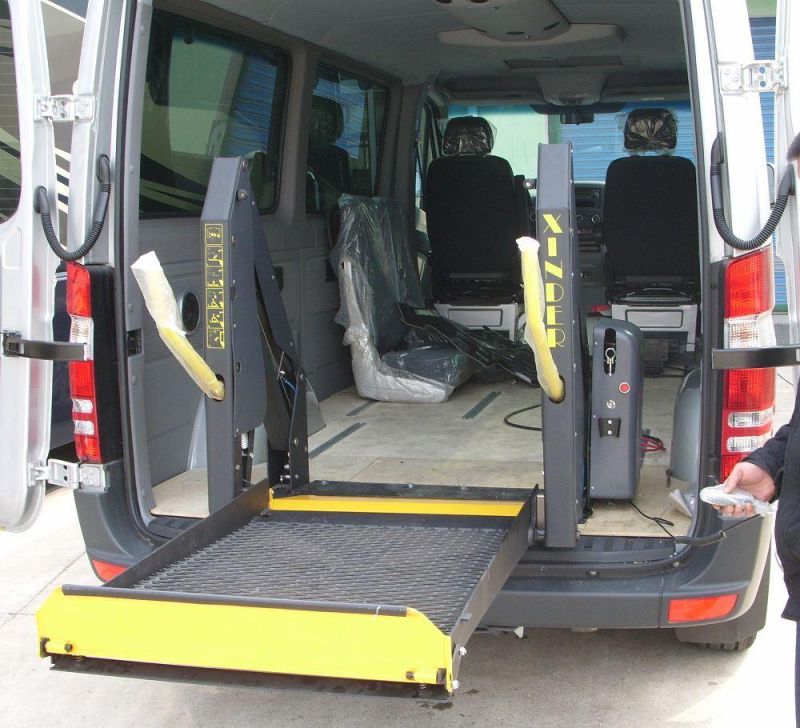

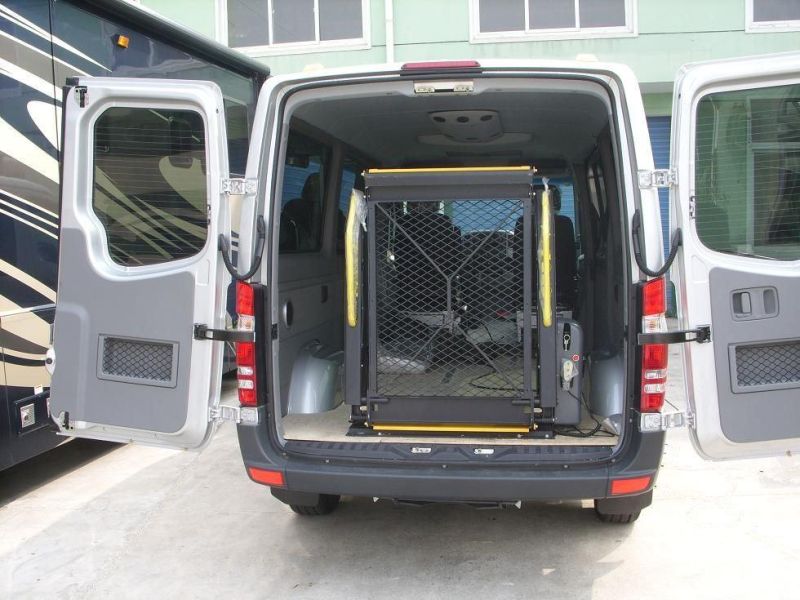

This wheelchair lift can be installed at the rear door or side door.

Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

This lift is operated by a wired remote control or by your mobilephone.

It also can be operated manually for emergency.

It is CE certified.

Loading capacity is 300kg.



Advantages:

• Solid platform provides additional safety;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 300kg;
