• Model NO.：S-LIFT-R-395
• Volt：12V
• Operation：Remote Control
• Lowering Height：395mm
• Turning Direction：Clockwise or Anti-Clockwise
• Transport Package：Carton Case or Wooden
• Specification：84kg
• Trademark：xinder
• Origin：China
• HS Code：870899999
• Production Capacity：500

Basic Info.

Model NO. S-LIFT-R-395 Volt 12V Operation Remote Control Lowering Height 395mm Turning Direction Clockwise or Anti-Clockwise Transport Package Carton Case or Wooden Specification 84kg Trademark xinder Origin China HS Code 870899999 Production Capacity 500

Product Description

Introduction

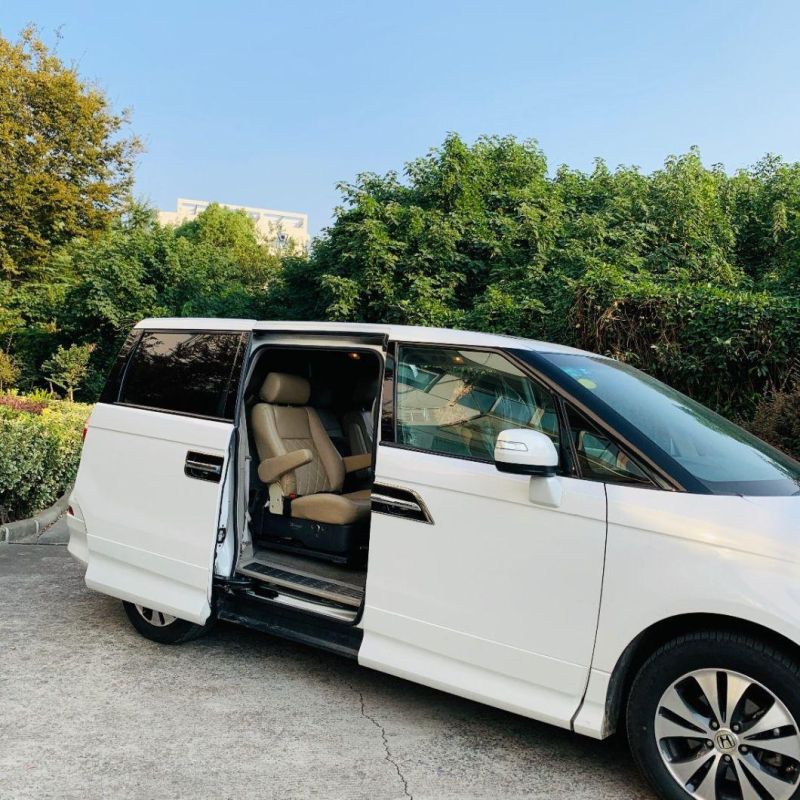

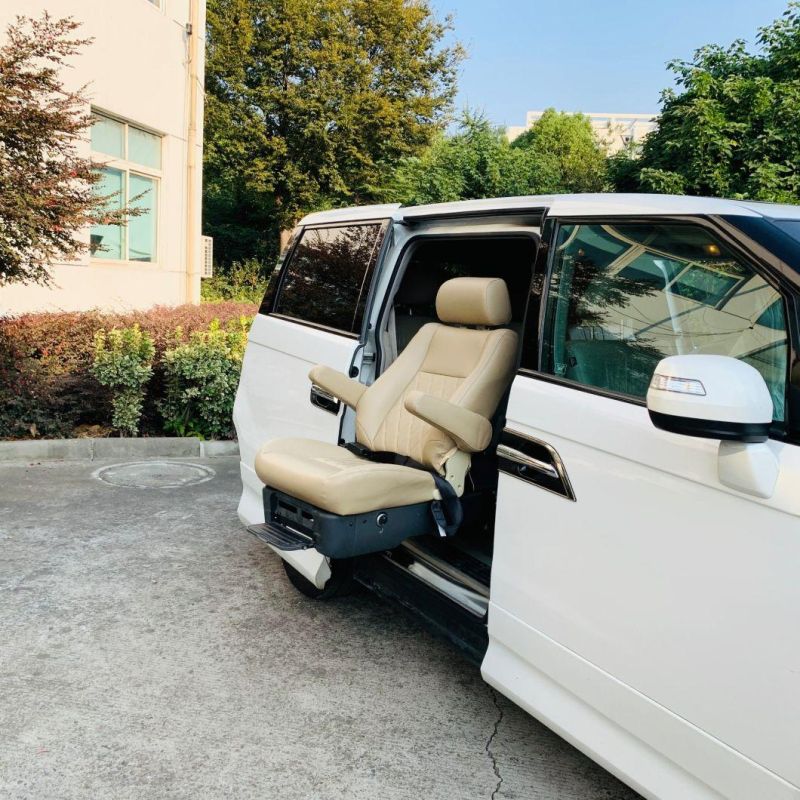

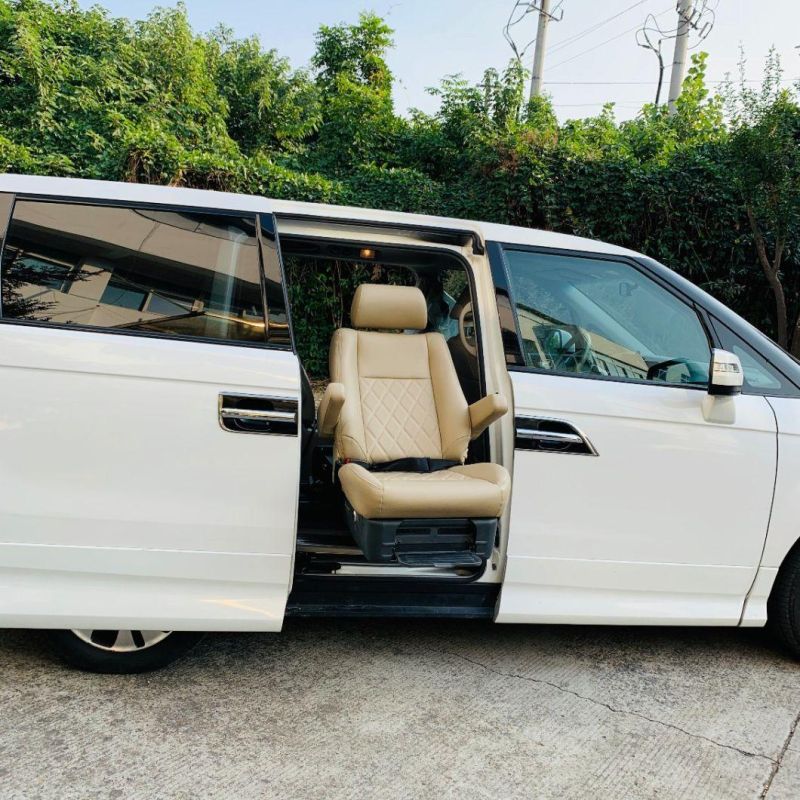

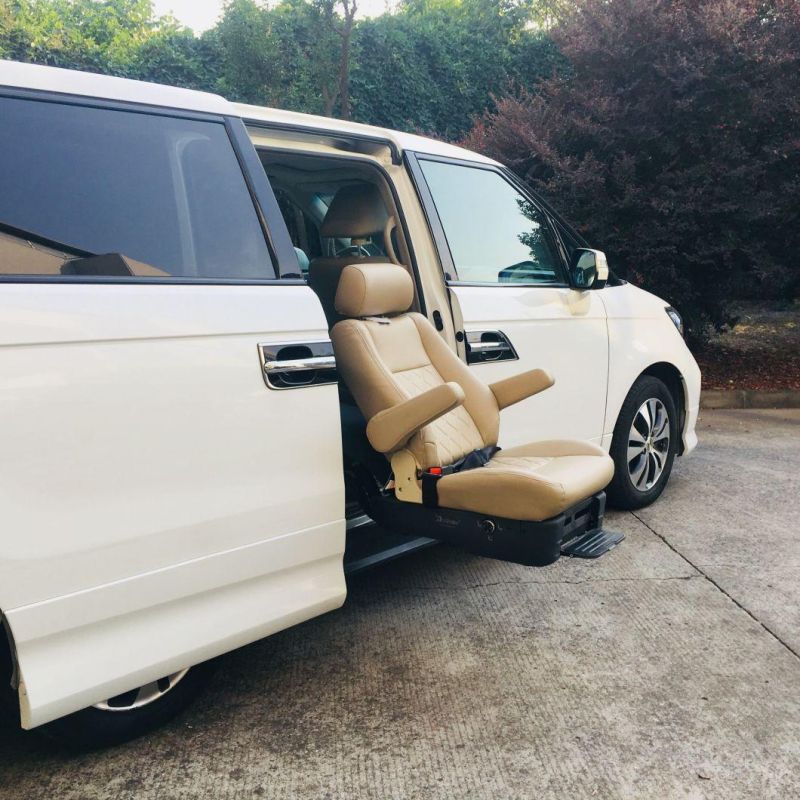

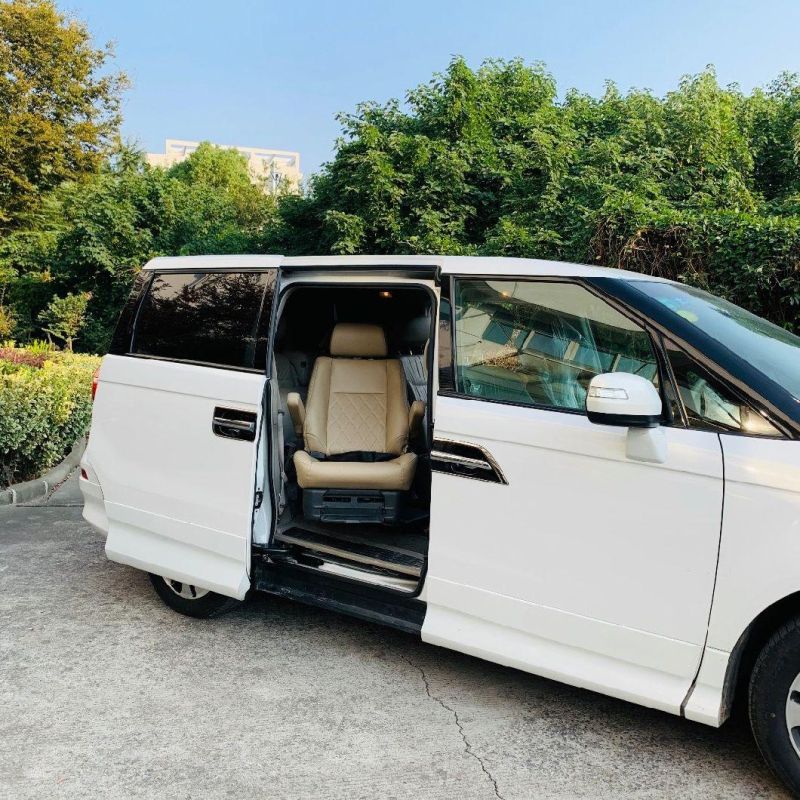

S-LIFT-R Series turning seat is a kind of equipment to make easy entrance of cars, buses, taxi, ambulance and etc. It can work stable, reliable and safe. Loading capacity can be 150KG.
It is operated by remote control. Turning seat can stop at any position you want by press keys on the remote control.

Description
   This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
   Easy operation and reliable function;
   It is operated by driver or user;
   Working voltage can be 12V;
   Water-proof connectors;
   There is warning sound during working;
   Working noise is less than 70dB;
   Every turning seat has SN which is for track and make after-sales easy;
manual function for emergency

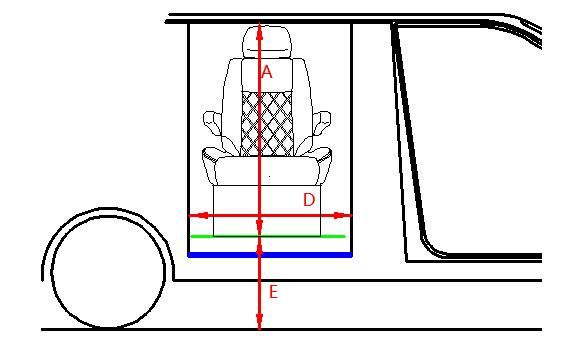

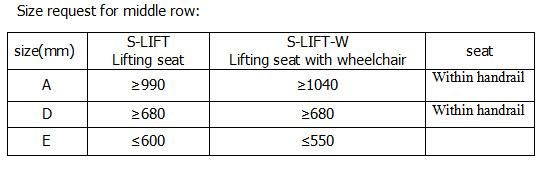

 Installation
1  easy installation
2  At the front seat or middle seat of MPV
3  Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm
4 net door width: 680mm
5 net door height: 1040mm
