• Model NO.：S-LIFT-PRO
• Turning Angle：0-113
• Own Weight：68kg
• Volt：12V
• Operation：Remote Control
• Goss Weight：150kg
• Packing Size：750*750*1100mm
• Packing Condition：Plywood Case
• Shipping Term：by Sea or by Air
• Transport Package：Carton Case or Wooden
• Specification：68kg
• Trademark：xinder
• Origin：China
• HS Code：870899999
• Production Capacity：500

Basic Info.

Model NO. S-LIFT-PRO Turning Angle 0-113 Own Weight 68kg Volt 12V Operation Remote Control Goss Weight 150kg Packing Size 750*750*1100mm Packing Condition Plywood Case Shipping Term by Sea or by Air Transport Package Carton Case or Wooden Specification 68kg Trademark xinder Origin China HS Code 870899999 Production Capacity 500

Product Description

Introduction

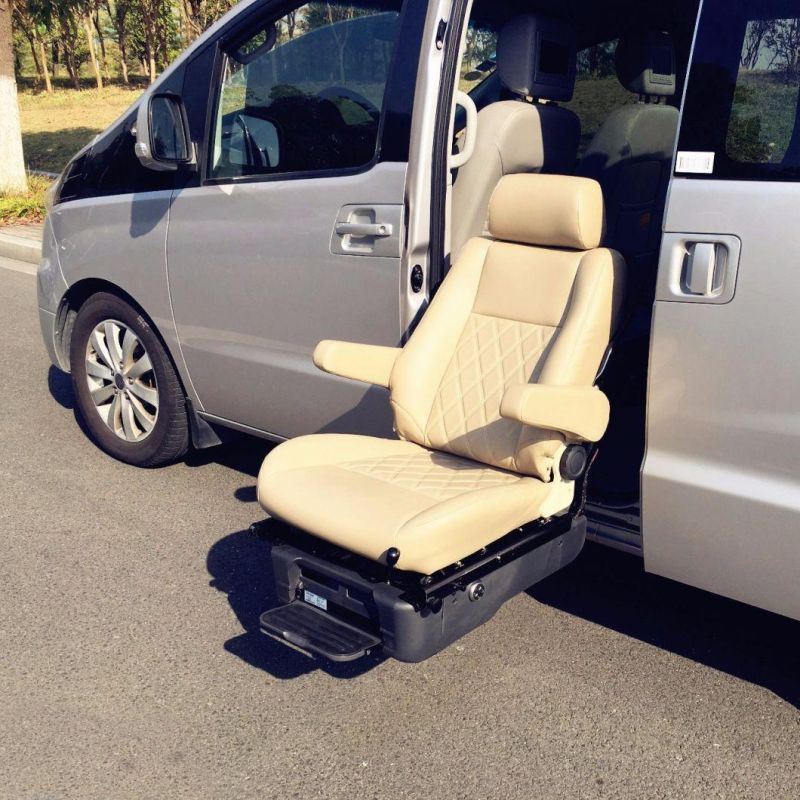

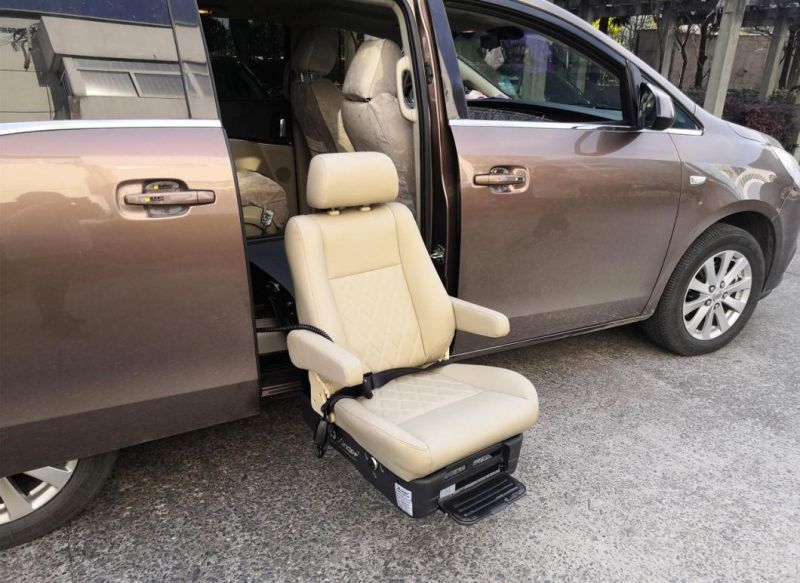

      S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MPV etc.
      It helps the old or the disabled to get seated safely, conveniently and comfortably.
      It can be operated by wired remote control, switches on seat or your mobile phone.
      This seat is programmable by the wired remote-control including programming the movement of lengthwise, rotation and seat backrest angle.
     Turning direction can be clockwise or anti-clockwise.


ADVANTAGES

• manual emergency function;
• door interlock function;
• auto sleep mode with very low quiescent current (<0.3mA);
• can be controlled by wired remote control, switches on seat or your mobile phone;
• pass R17 crash test;
• pass E-MARK EMC test;
• Turning direction: clockwise or anti-clockwise;

Technical parameters

• Voltage: 12V dc;
• Power: 120W;
• Loading Capacity: 150Kg;
• Lowering Height (h): 395mm;
• Rotating Angle: 0-113°;
• Quiescent current: ≤0.3mA
• Max current: 25A;

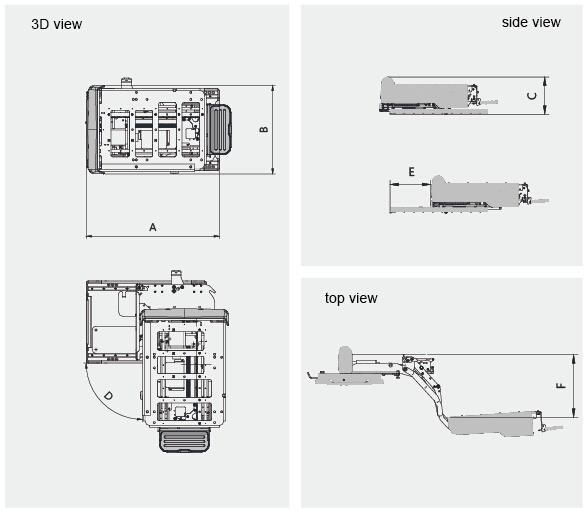

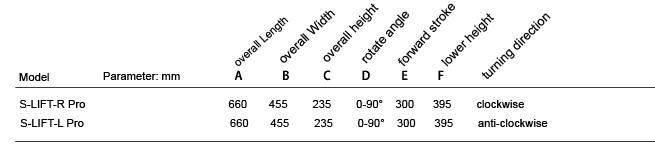

Dimension parameters
