• Model NO.：S-LIFT Pro
• Volt：12V
• Operation：Remote Control, Switched, Cellphone
• Transport Package：Carton Case or Wooden
• Specification：80kg
• Trademark：xinder
• Origin：China
• HS Code：870899999
• Production Capacity：500

Basic Info.

Model NO. S-LIFT Pro Volt 12V Operation Remote Control, Switched, Cellphone Transport Package Carton Case or Wooden Specification 80kg Trademark xinder Origin China HS Code 870899999 Production Capacity 500

Product Description

INTRODUCTION

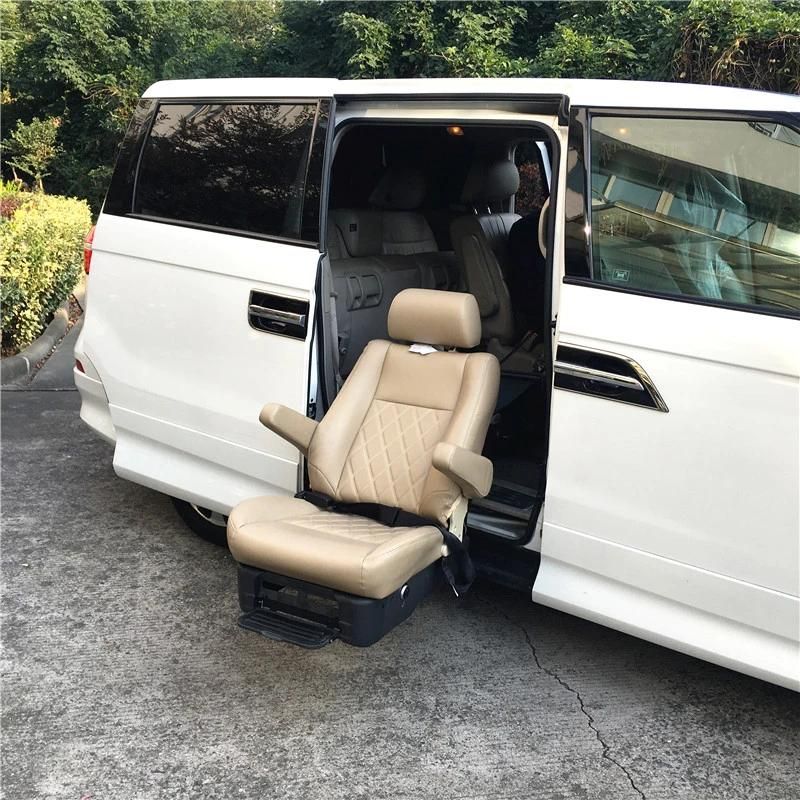

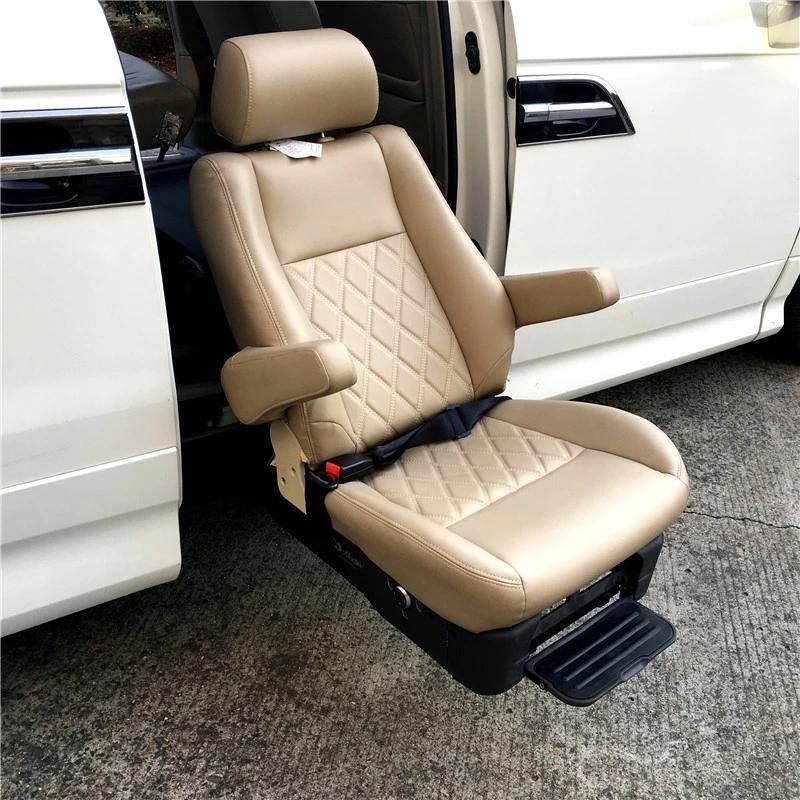

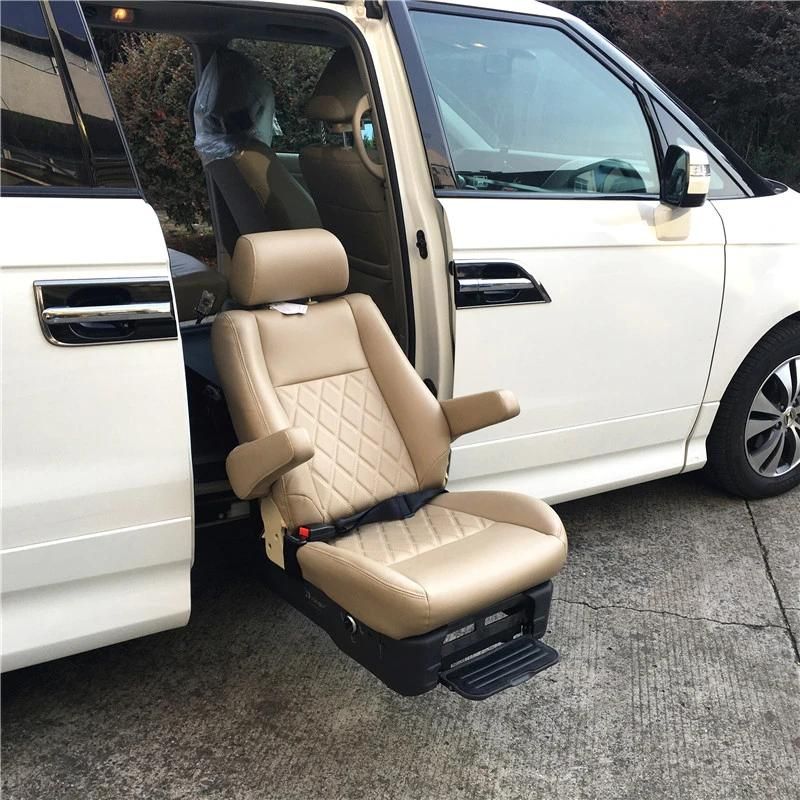

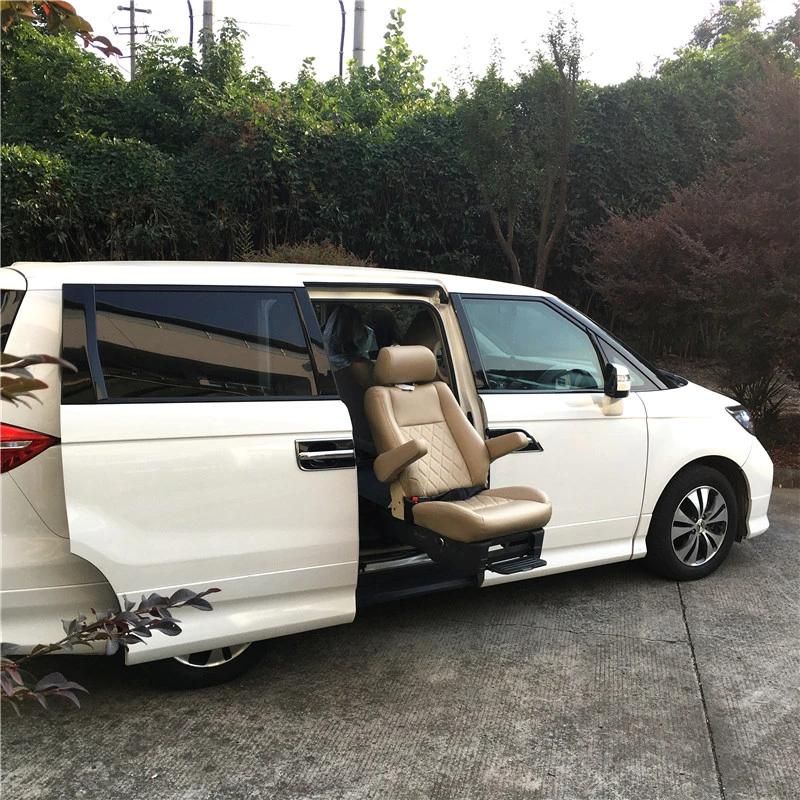

S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MPV etc.
t helps the old or the disabled to get seated safely, conveniently and comfortably.
It is operated by wired remote control, switches on seat or your mobile phone.
This seat is programmable by the wired remote control including programming the movement of lengthwise, rotation and seat backrest angle.
When the power is low, the seat will lock itself and give the warning. If the power is cut off when
the seat is running, after repower the seat can be recovered without fault.
Turning direction can be clockwise or anti-clockwise.

1. Program function: The path can be preprogramed by remote controller including programing the movement of lengthwise, rotation and seat back adjustment.
2.Automatic Filter: When programing, the software can automatically filter the adjustment movement and keep the programed path neat.
3. Position memory function: The seat can memorize customer's favorite position and when the seat swiveled in, it can directly go back to this favorite position.
4. Program copy and backup without computer: The customer can use the remote controller to backup or copy the program to other seats themselves without the help of the computer or service engineer.
 5. Sensor-less: The seat is sensor-less when in normal operation which can eliminate the danger caused by the sensor malfunction.
6. Electrical Manual mode: The customer can bypass the program and operate the motor separately by Electrical Manual mode for emergency.
7. Path recover function: When using Electrical Manual mode and make the seat off its path, after that the seat will try to bring the seat back to its preprogramed path.
8. Stretch out lock: When the rotation angle is less than 45 degree, the seat will automatically forbid the customer to stretch out the seat in the program.
9. Stop with obstacles: The seat will stop automatically when encounter with obstacles.
10. Communication fault detection: The seat can automatically detect the communication fault with the motor encoder or remote controller and give a warning.
11. Door interlock: The seat will check the door status and disable the swivel out function when door is closed.
12. Power Low detection: When the power is low, the seat will lock itself and give the warning. If the power is cut off when the seat is running, after repower the seat can be recovered without fault.
13.LED indication: The remote controller has LEDs to indicate the possible operation.
14.Sleep function: When the door is closed, the seat will enter sleep mode automatically with a low quiescent current.
15. Electrical Protection: For example, Surges, Short circuit protection for motor, wrong connection of the Power line etc.
16. OLED: OLED is used for remote controller to give a better appearance.
17. Mechanical Manual function: When the power is off, the seat can be swiveled in manually for emergency.
18. Control by cellphone: The seat can be connected to cellphone by Bluetooth and controlled by APP.
19. Control by switch: The seat has some switches on the left and right side to control the lengthwise, seat back adjustment and swivel in/out movement.
20. Pass EMC R10
21. Pass impact test

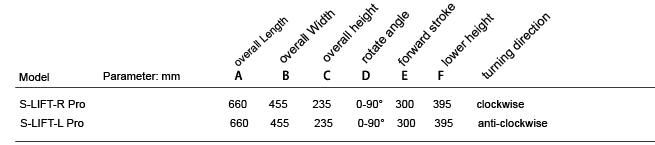

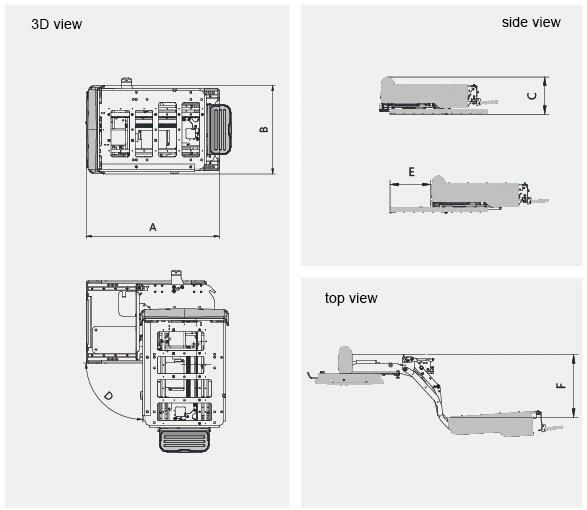

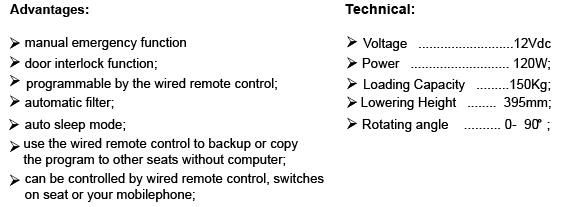

TECHNICALS:
