• Model NO.：S-LIFT-R and S-LIFT-L
• Loading：120kg
• Turning Angle：0-113
• Own Weight：68kg
• Volt：12V
• Operation：Remote Control
• Turning Direction：Clockwise or Anti-Clockwise
• Loading Capacity：150kg
• Seat Color：Chooseful
• Lowering Height：395mm
• Transport Package：Carton Case or Wooden
• Specification：68kg
• Trademark：xinder
• Origin：China
• HS Code：870899999
• Production Capacity：500

Basic Info.

Model NO. S-LIFT-R and S-LIFT-L Loading 120kg Turning Angle 0-113 Own Weight 68kg Volt 12V Operation Remote Control Turning Direction Clockwise or Anti-Clockwise Loading Capacity 150kg Seat Color Chooseful Lowering Height 395mm Transport Package Carton Case or Wooden Specification 68kg Trademark xinder Origin China HS Code 870899999 Production Capacity 500

Product Description

Introduction

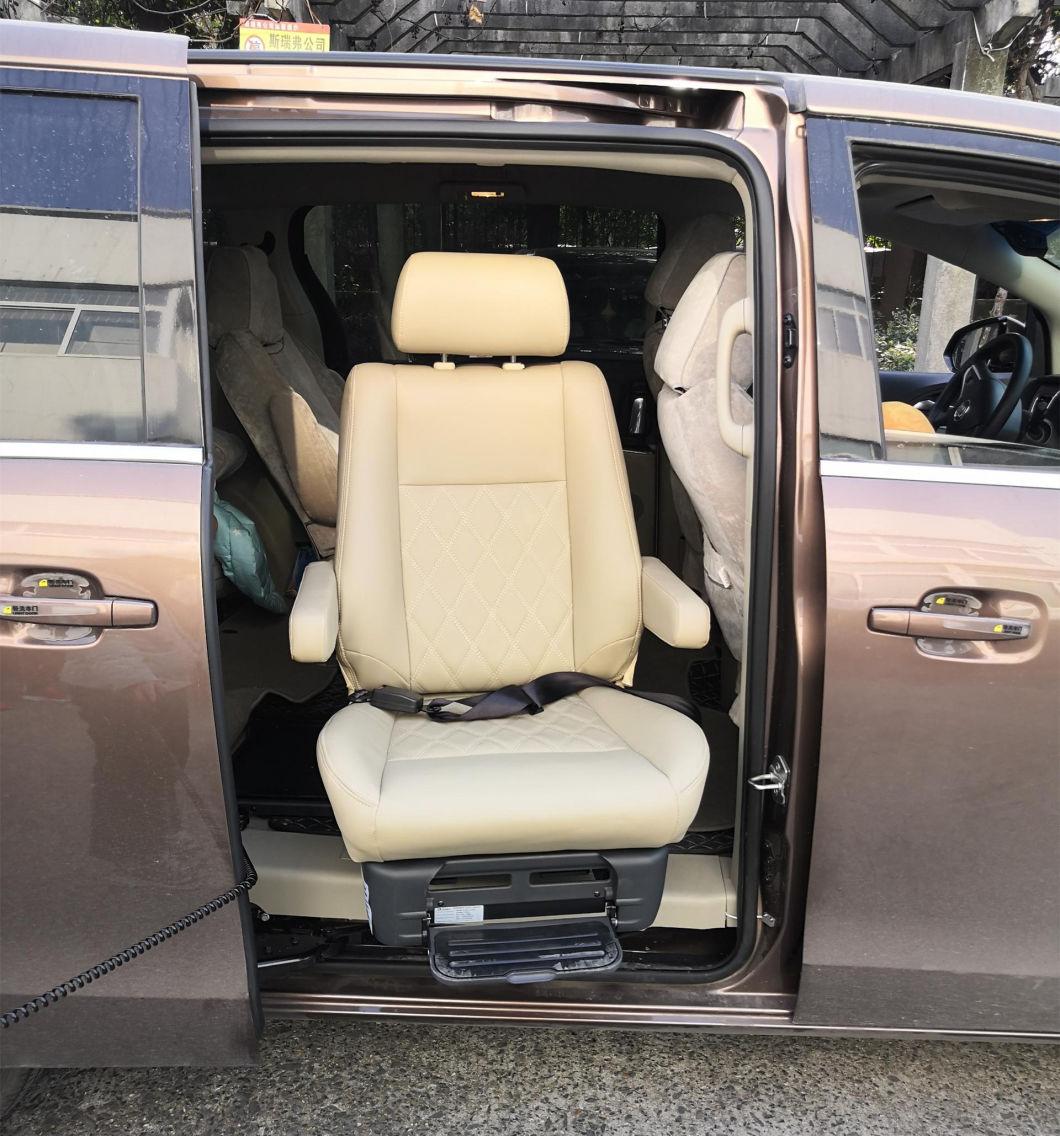

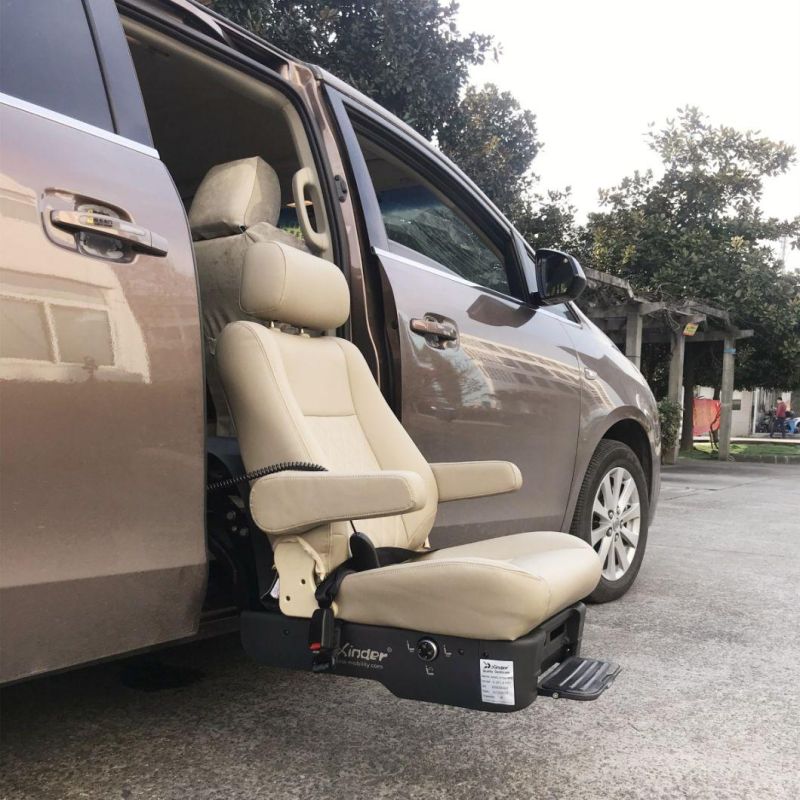

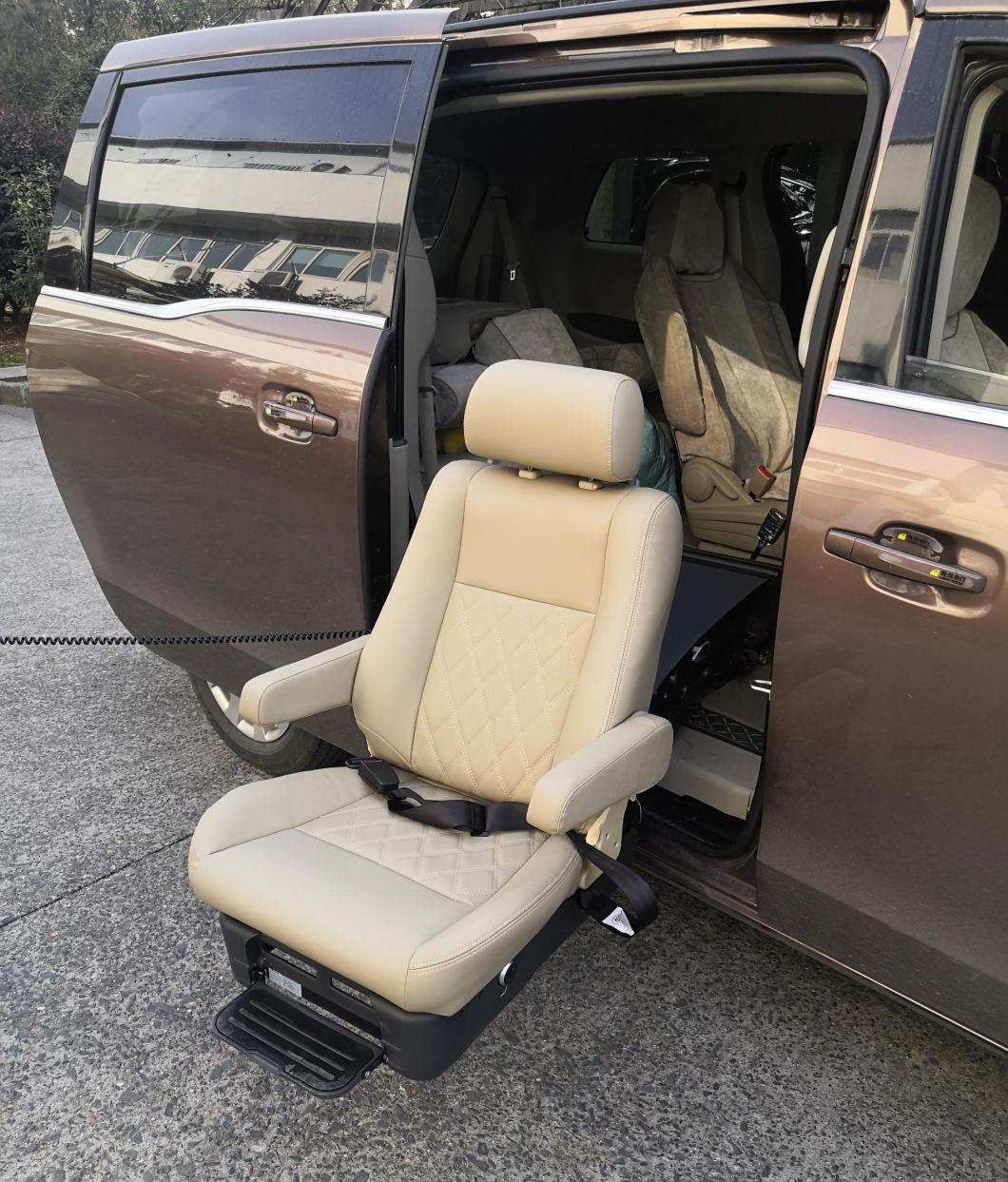

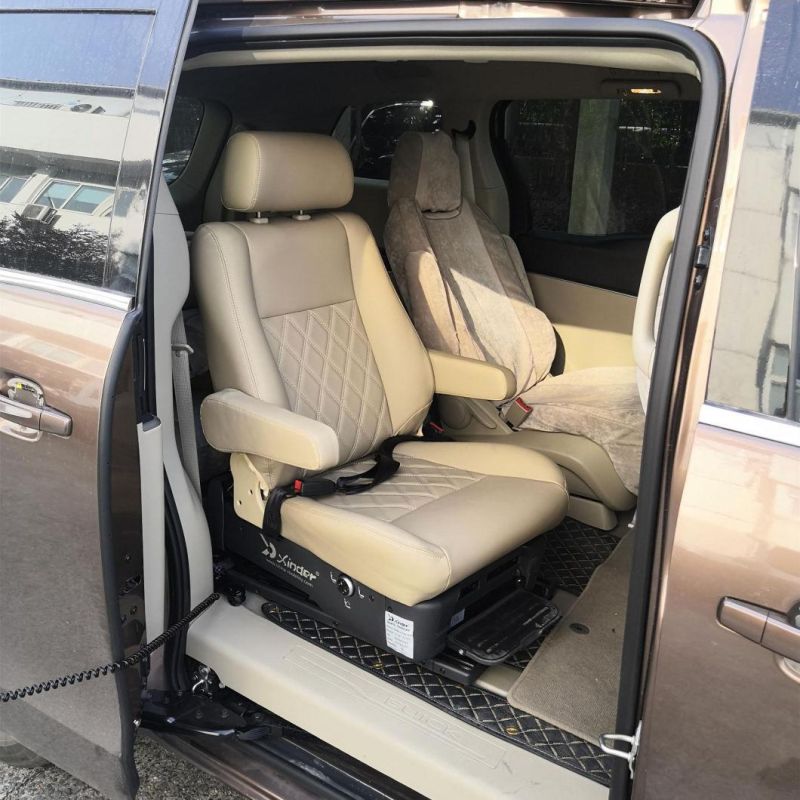

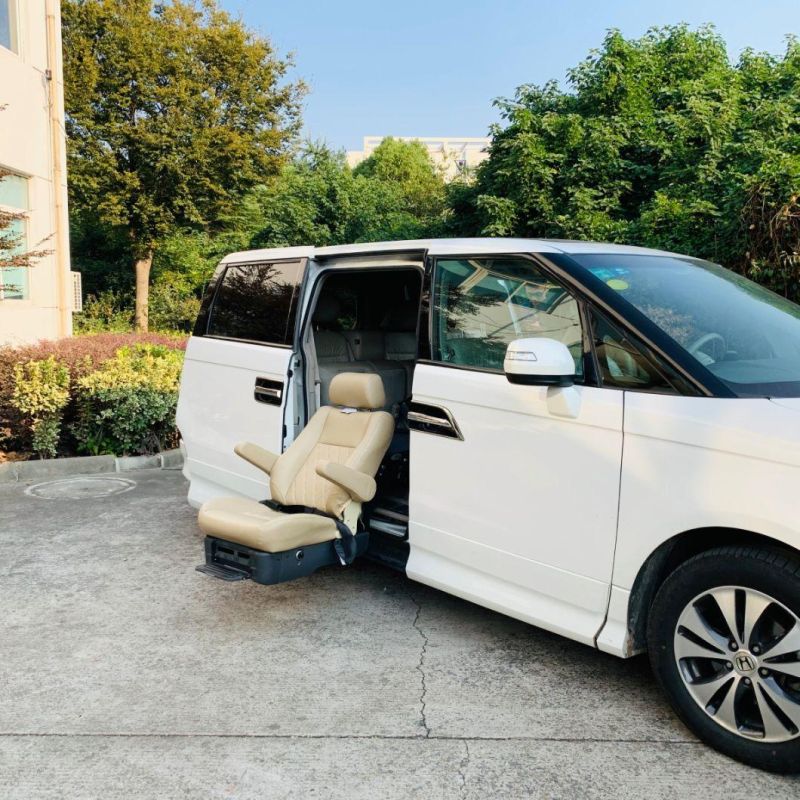

      S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MPV etc.
      It helps the old or the disabled to get seated safely, conveniently and comfortably.
      It can be operated by wired remote control, switches on seat or your mobile phone.
      This seat is programmable by the wired remote-control including programming the movement of lengthwise, rotation and seat backrest angle.
     Turning direction can be clockwise or anti-clockwise.

ADVANTAGES

• manual emergency function;
• door interlock function;
• auto sleep mode with very low quiescent current (<0.3mA);
• can be controlled by wired remote control, switches on seat or your mobile phone;
• pass R17 crash test;
• pass E-MARK EMC test

Technical parameters

• Voltage: 12V dc;
• Power: 120W;
• Loading Capacity: 150Kg;
• Lowering Height (h): 395mm;
• Rotating Angle: 0-113°;
• Quiescent current: ≤0.3mA
• Max current: 25A;

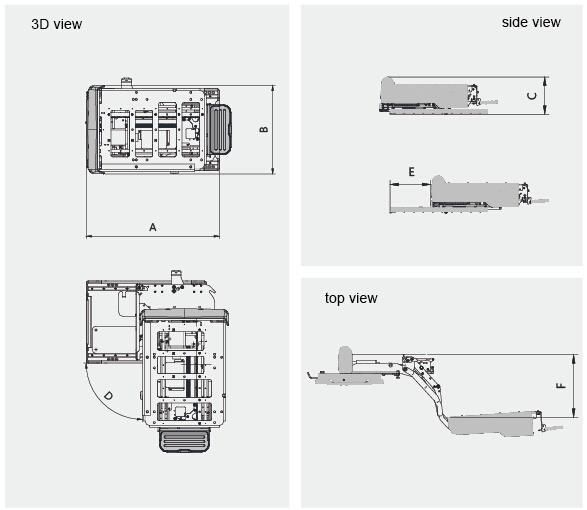

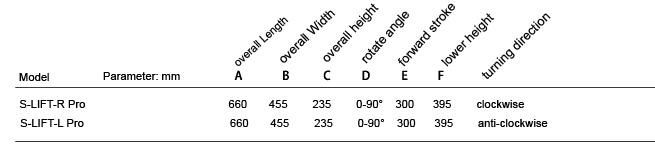

Dimension parameters
