• Model NO.：A600
• Certification：ISO
• Transport Package：Carton
• Specification：2.3mX340kg
• Trademark：no
• Origin：Qingdao
• HS Code：7610900000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. A600 Certification ISO Transport Package Carton Specification 2.3mX340kg Trademark no Origin Qingdao HS Code 7610900000 Production Capacity 50000PCS/Year

Product Description

Quick Facts:

• Length: 600mm to 1800mm
• Internal Width: 680mm
• External Width: 720mm
• Weight Capacity: 272kg over 2 axles
• Material: Aluminium body
• Finish: High-grip traction or non-slip black grip tape surface
• Connection plate: 50mm x 720mm

Manage steps, load into cars, vans and navigate other various rises and falls in daily life with safety and ease using Heeve Aluminium Single-Fold Super-Grip Wheelchair Ramps.

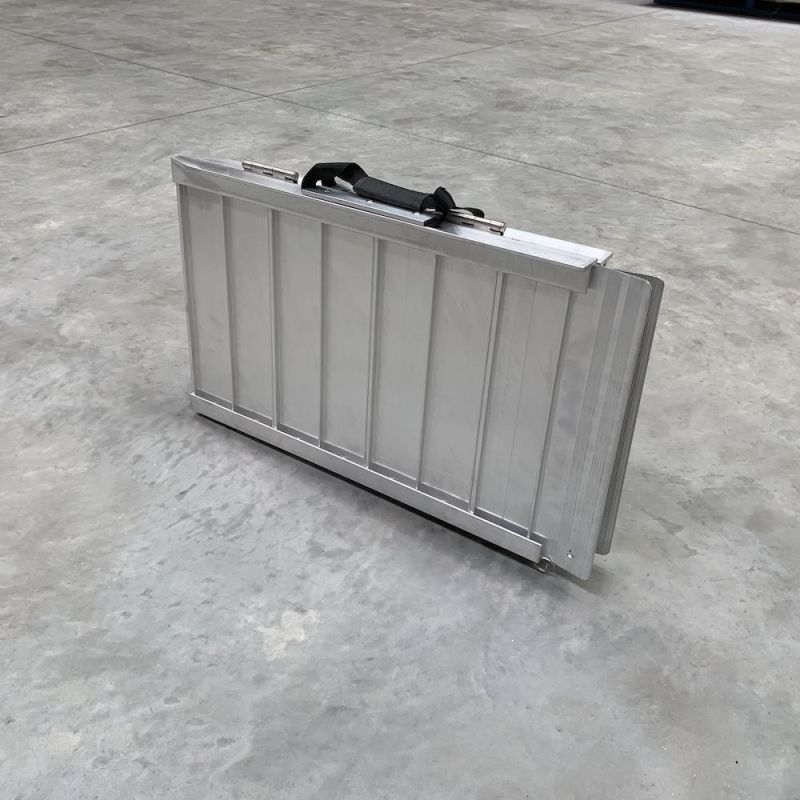

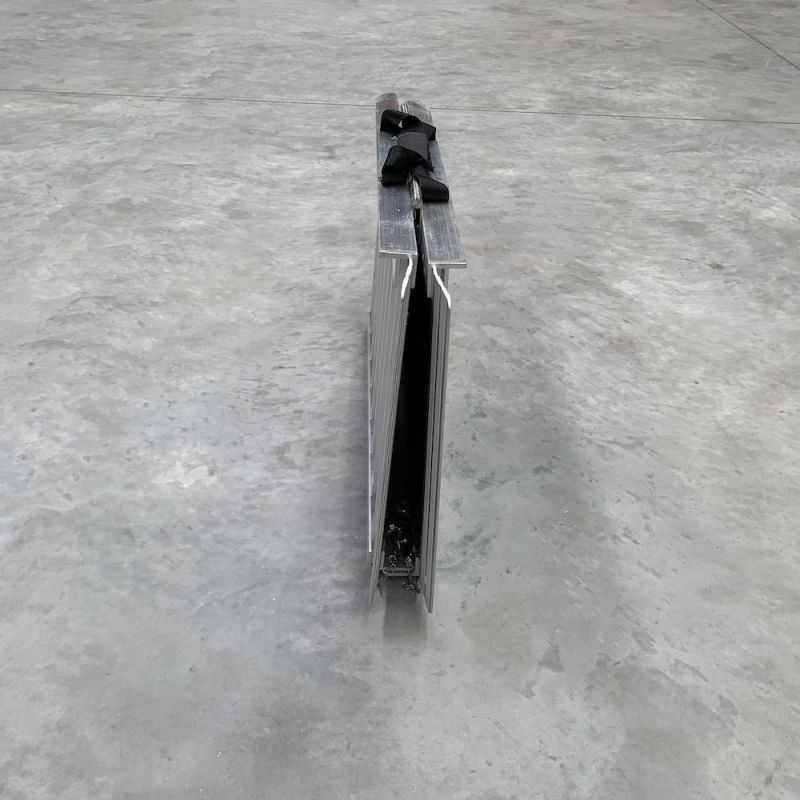

Lightweight and portable the Aluminium Folding Wheel Chair Ramp can carry weights of up to 272kg whilst folding in half like a suitcase for easy storage.

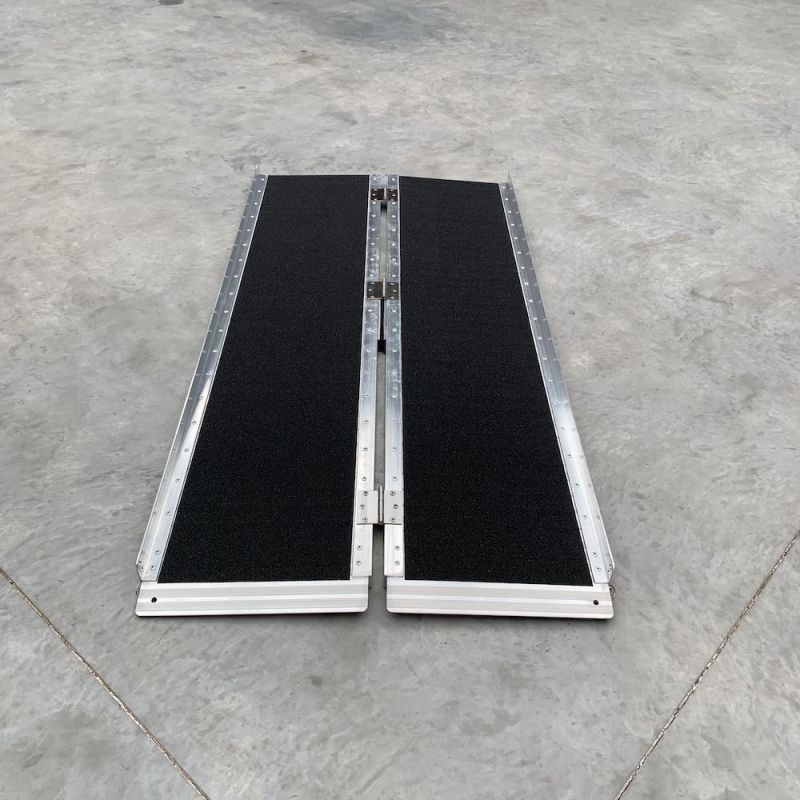

The Super-Grip ramp comes complete with an anti-slip high-traction surface, 50mm side rails to prevent wheelchairs and walkers from veering off the side as well as pre-drilled holes and locking pins to secure the ramp in place when in use you can rest assured knowing that you're safe while using the ramp.

The inside width of the ramp measures 680mm, perfect for most scooters, walkers and wheelchairs alike.

Features and Benefits

• Super-Grip anti-slip coating to prevent slips
• Wide enough for standard wheelchairs
• 272kg weight capacity
• Corrosion free marine grade aluminium material
• Fold-away design for maximum convenience
• Carry handles for easy transport
• 50mm safety rails to prevent roll off
• Locking pins to secure your ramp when in use
• Optional carry bag to protect your ramp (some models)
• Anti-slip rubber on connection plate (except 600mm variant)
• Certified to the highest international CE standards guaranteeing the quality and safety of each ramp (EN ISO 12100:2010)

Specifications

• Material: Aluminium body
• Finish: High-grip traction or non-slip black grip tape surface
• Connection plate: 50mm x 720mm
• Dimensions
  • 600mm ramp: L610mm x W720mm x H75mm
  • 900mm ramp: L920mm x W720mm x H75mm
  • 1200mm ramp: L1220mm x W720mm x H75mm
  • 1500mm ramp: L1525mm x W720mm x H75mm
  • 1800mm ramp: L1830mm x W720mm x H75mm
• Folded Dimensions
  • 600mm ramp: L610mm x W360mm x H75mm
  • 900mm ramp: L920mm x W360mm x H75mm
  • 1200mm ramp: L1220mm x W360mm x H75mm
  • 1500mm ramp: L1525mm x W360mm x H75mm
  • 1800mm ramp: L1830mm x W360mm x H75mm
• Weight
  • 600mm ramp: 5kg
  • 900mm ramp: 7kg
  • 1200mm ramp: 10kg
  • 1500mm ramp: 12kg
  • 1800mm ramp: 15kg
