• Model NO.：S-LIFT-PRO
• Own Weight：68kg
• Volt：12V
• Operation：Remote Control
• Color：Black,Beige
• Transport Package：Wooden or Carton Box
• Specification：68kg
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：870899999
• Production Capacity：10000 Sets,Year

Basic Info.

Model NO. S-LIFT-PRO Own Weight 68kg Volt 12V Operation Remote Control Color Black/Beige Transport Package Wooden or Carton Box Specification 68kg Trademark xinder Origin Jiangsu. China HS Code 870899999 Production Capacity 10000 Sets/Year

Product Description

1. Introduction

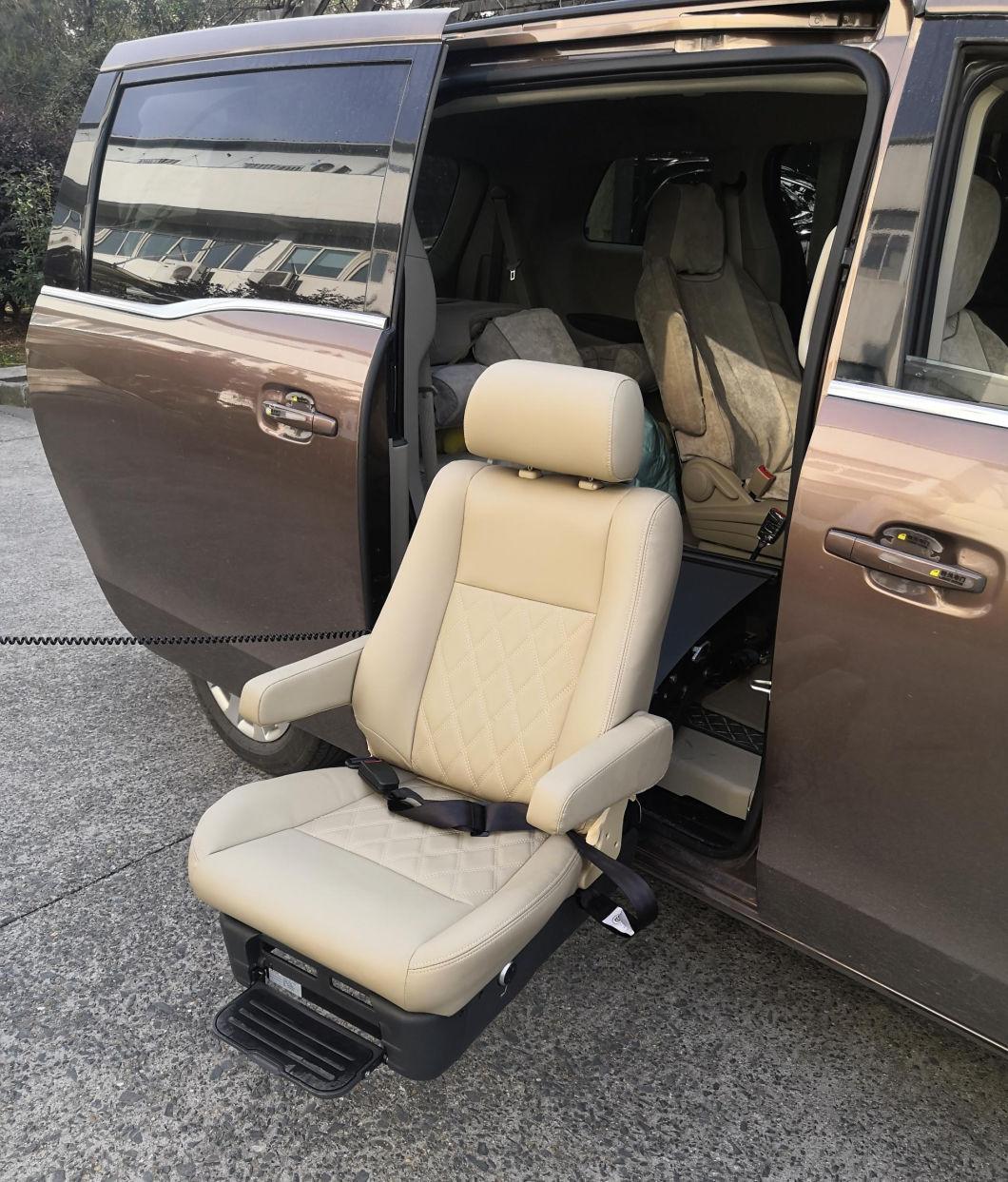

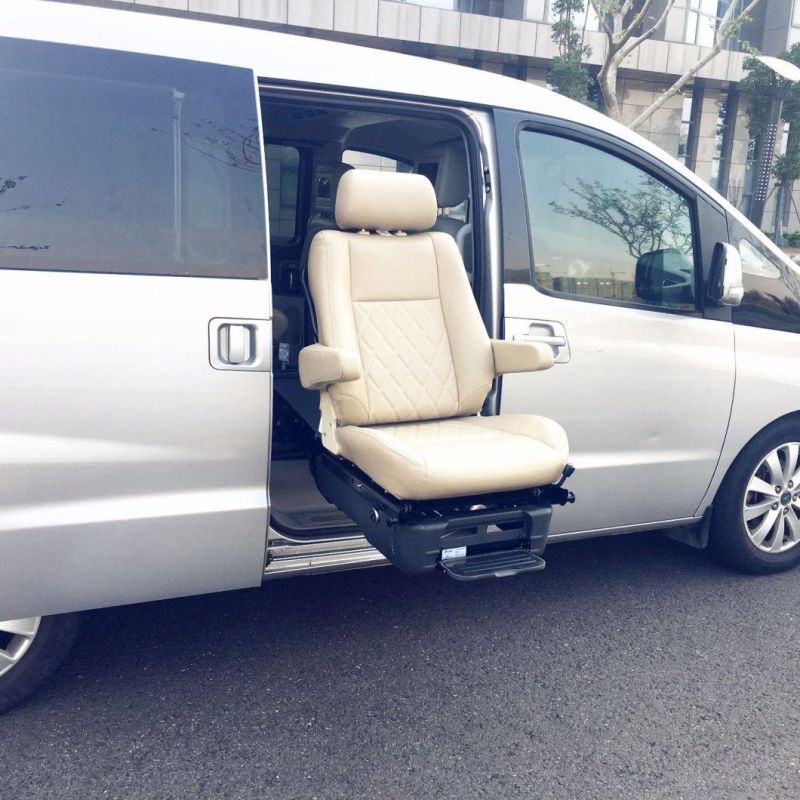

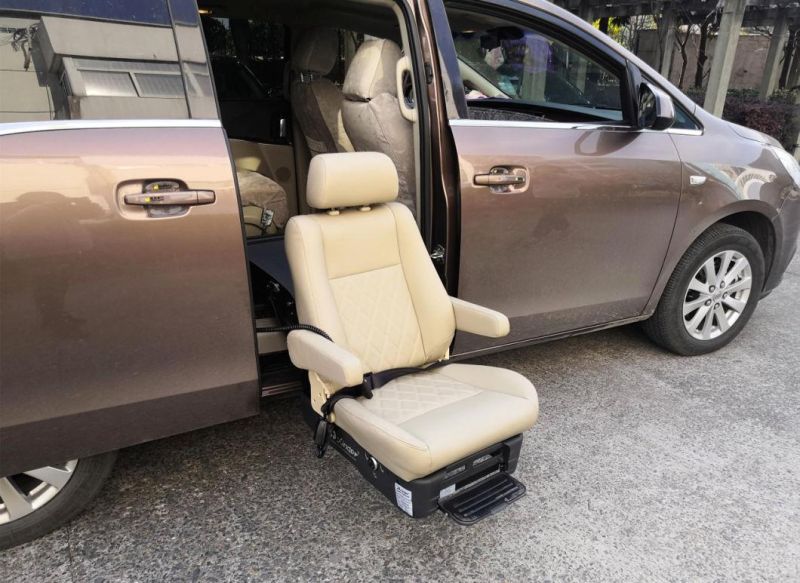

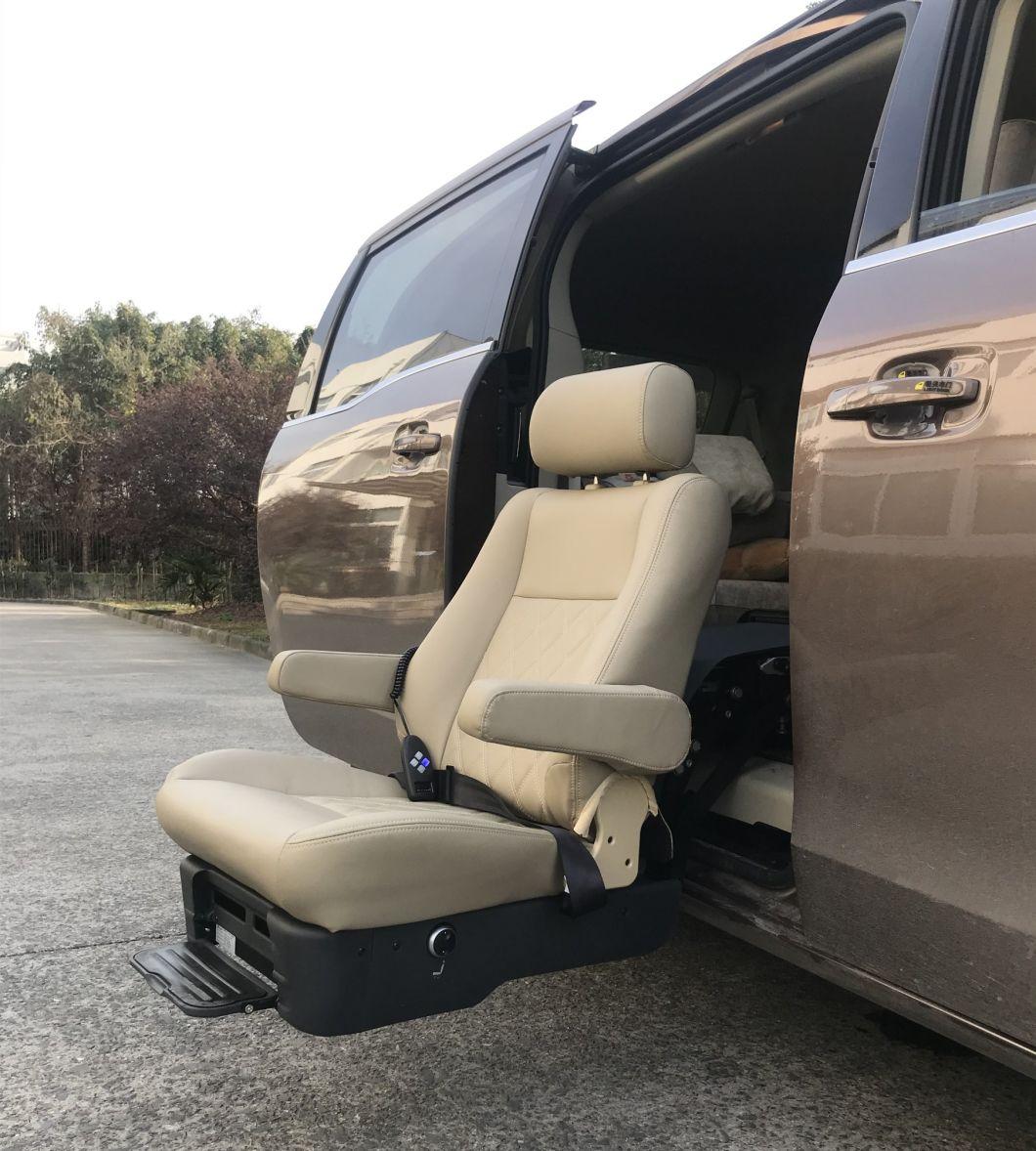

S-LIFT-PRO This lifting seat is installed inside of car, which is especially designed for the disabled and the old. It is installed at the copilot and middle door.
The user can use control switch to make the seat turn out of/into car, and also use this switch to lift and lower down the seat.
The max loading capacity can be 150 kg, which is reliable.

2. Description
This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
Easy operation and reliable function;
It is operated by driver or user;
Working voltage can be 12V or 24V;
Water-proof connectors;
There is warning sound during working;
Working noise is less than 70dB;
Every turning seat has SN which is for track and make after-sales easy;

3. Installation
Wholly assembled and easy installation
At the front seat or middle seat of MPV
Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm

4. Application
Ø  MPV, van, minivan, SUV; Ø  Handicapped car; Ø  Ambulance;

5.operation
This turning seat is operated by remote control.
Press "DOWN": seat will first move forwarder 270mm, turning 90°; second extend out of car, and then lower down.
Press "UP" to stow seat inside of car.
