• Model NO.：WCT
• Working Time：75~85s
• Volt：12V
• Control：Remote Control
• Transport Package：Wooden Case
• Specification：1380*1290*540mm
• Trademark：xinder
• Origin：Changzhou Jiangsu
• HS Code：8728999990
• Production Capacity：100set, Month

Basic Info.

Model NO. WCT Working Time 75~85s Volt 12V Control Remote Control Transport Package Wooden Case Specification 1380*1290*540mm Trademark xinder Origin Changzhou Jiangsu HS Code 8728999990 Production Capacity 100set/ Month

Product Description

1. Brief Introduction

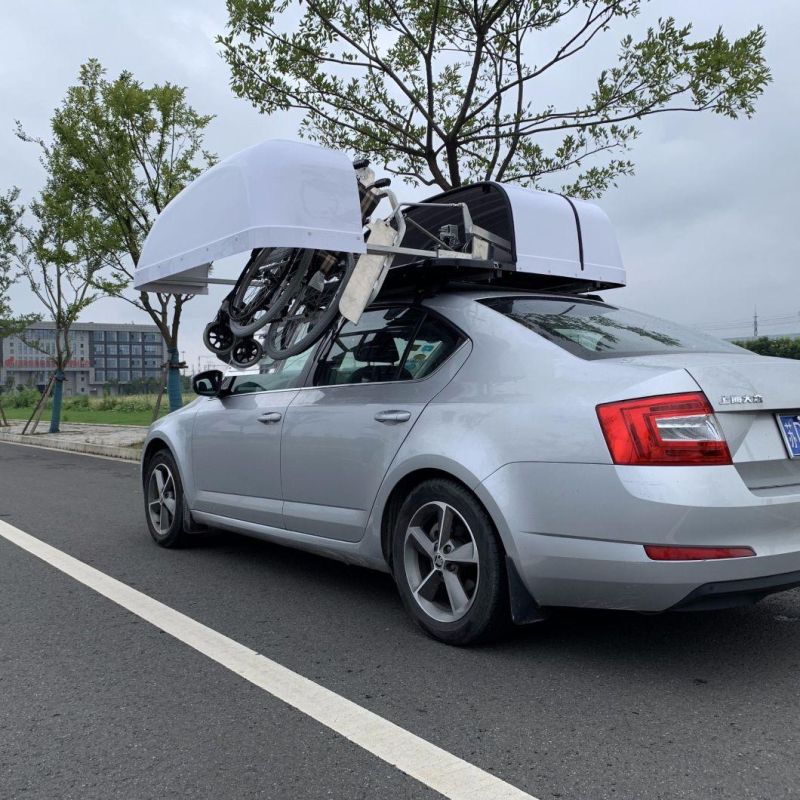

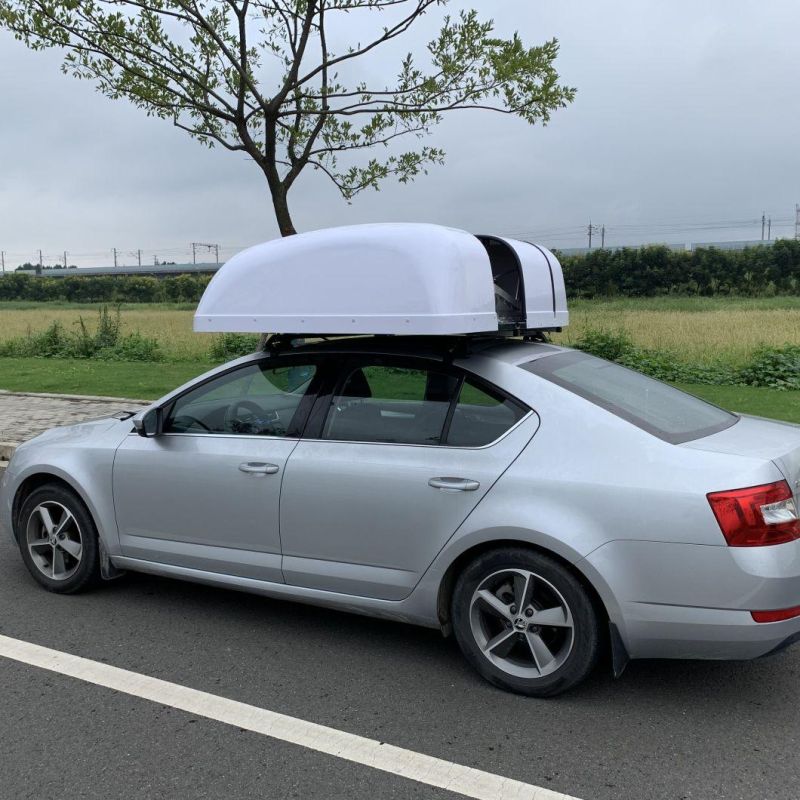

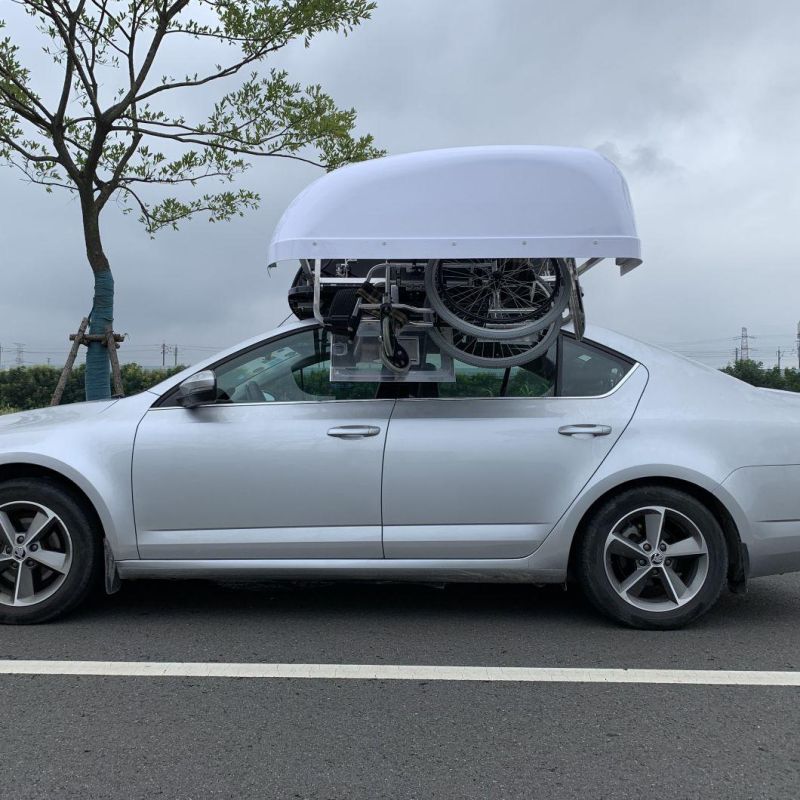

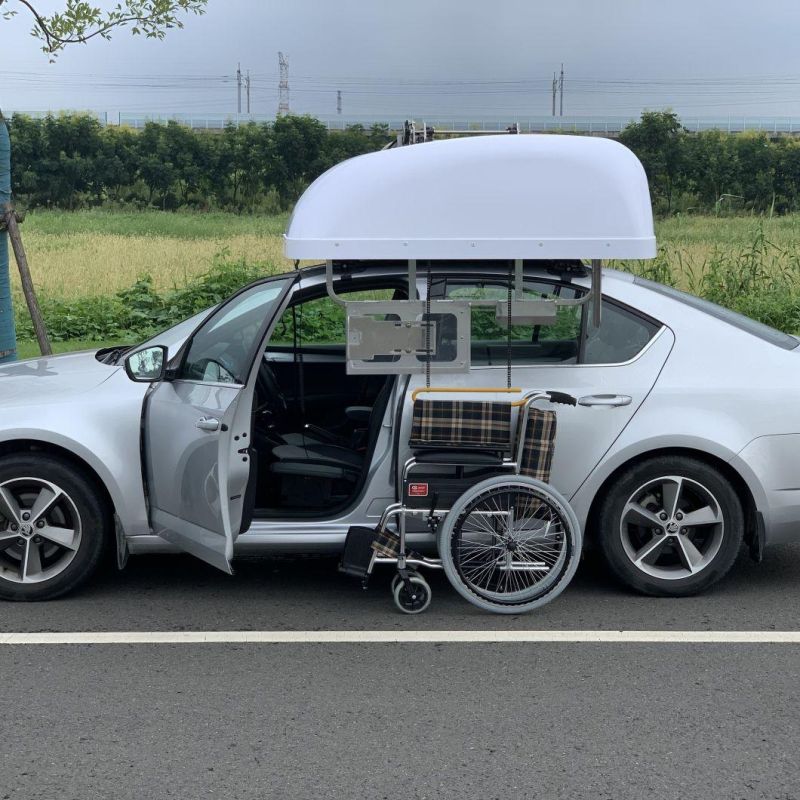

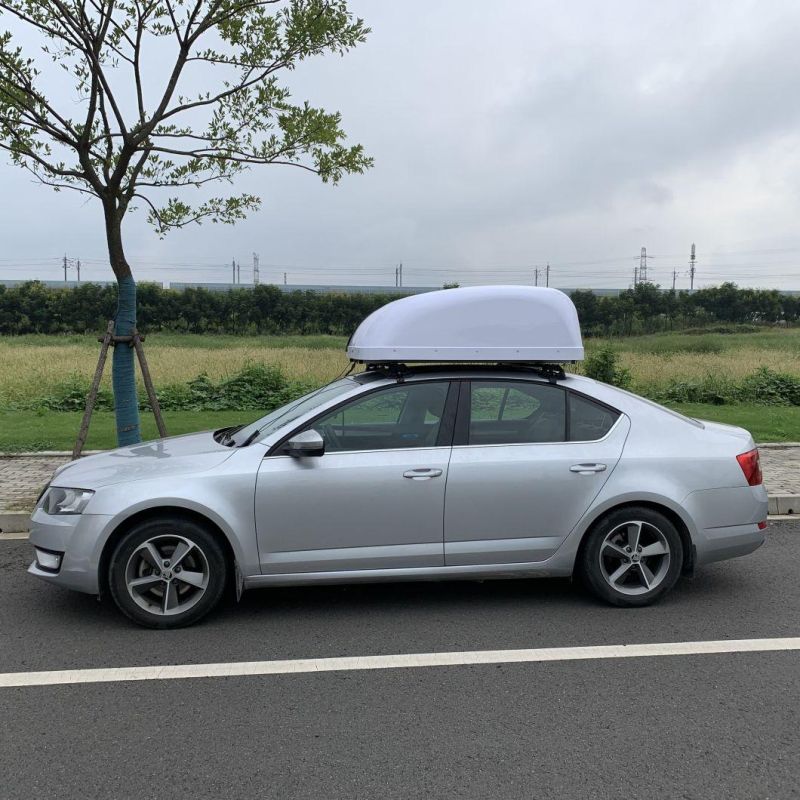

The WCT chair topper is installed on the car or van top to store the foldable wheelchair.
The chair topper may be independently remote controlled by the wheelchair occupier himself/herself, no need of other persons' help.
Here we recommend you to choose our turning seat to help the wheelchair occupier to easily get in or out of the car by himself/herself.
The chair topper is driven by the motor-driven chain. Meanwhile, manual backup control system is supported for any emergency.
All the main specifications, installation guide and maintenance method are included in the manual. It is very important to you to read through the manual carefully and fully master the operation steps.

2.Specifications
Retracted Overall Dimension (L*W*H): 1380*1290*540mm
Cover Shell Extending Length: 930mm
Own Weight: 56Kg
Load Capacity: wheelchair≤20.5Kg
Function: to store the wheelchair in car roof box if wheelchair not used
Purpose: for car, SUV and other vehicles; mainly for the disabled to drive by himself/herself
Working Time: 75~85s to finish the whole process
Materials:
cover shell-----------------glass fiber reinforced plastics
rail---------------------------aluminum alloy 6063-T5
fold and slide parts-------rectangular iron tube and steel plate
Control:remote control
Voltage:12 Vdc
MAX No-load Current: <4A
