Thick 0.76mm Shade Green on Clear PVB Interlayer Film

Qingdao Haocheng Industrial Co., Ltd.
  • After-sales Service：Available
  • Warranty：Longtime
  • Type：Windshield
  • Function：Frost Prevention
  • Glass Composition：Silicon Oxide
  • Certification：ECE, ISO

Base Info

  • Model NO.：CP001
  • Glass：Laminated Glass
  • Mgnt Certification：ISO14001
  • Main Market：South America
  • Thickness：0.76mm
  • Color：Green,Blue,Grey on Clear,Green
  • Raw Materials：Fresh PVB Resin
  • Width of Shade：Max 230mm
  • Width：600-1600mm
  • Transport Package：Playwood Box or Fiber Can
  • Specification：ISO 9001
  • Trademark：Saflayer
  • Origin：China
  • HS Code：39209100
  • Production Capacity：60rolls,Day

Description

Thickness0.76mmAppearanceSurfaceSmooth surface without Nick,Crease,Bond; The color band should be evenly distributed and the width of transitional region is equalizedBand ColorClear, Blue,Green ,Gray & othersCrystallite and watermarksVisible defects (impurities, bubbles, oil, drop etc.)Roughness Rz15 -70Moisture content (%)0.35 - 0.55Heat shrinkage rate
( 60ºC/15min) (%)Pummel value7 MaxLight transmittance (%)85 MinHaze (%)0.2 - 0.4UV Screening, up to 380nm (%)99Tensile strengthTensile elongation (% )200 MinYellowness index (%)10 Max*Intensive defects area: Within the 300mm diameter circle, the defect numbers is over 10 and its interval less than 5 mm. Company ProfileThick 0.76mm Shade Green on Clear PVB Interlayer Film

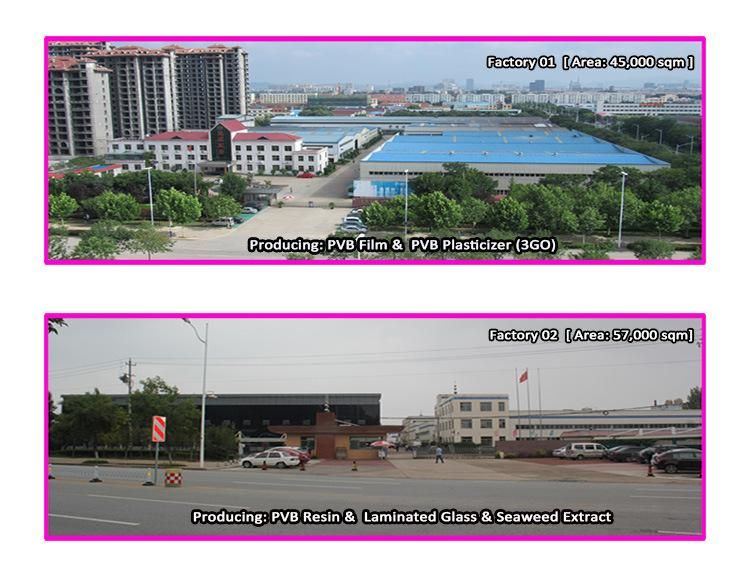

Qingdao Haocheng Industrial Co., ltd. is a professional manufacturer and engaged in the research & production, sale and service of  PVB resin, PVB film interlayer, PVB plasticizer (3GO) and Float laminated glass sheets. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Going with company development, we are looking for new team of partner with strong integrity to join us to enjoy our business together.

 Product PackageThick 0.76mm Shade Green on Clear PVB Interlayer Film

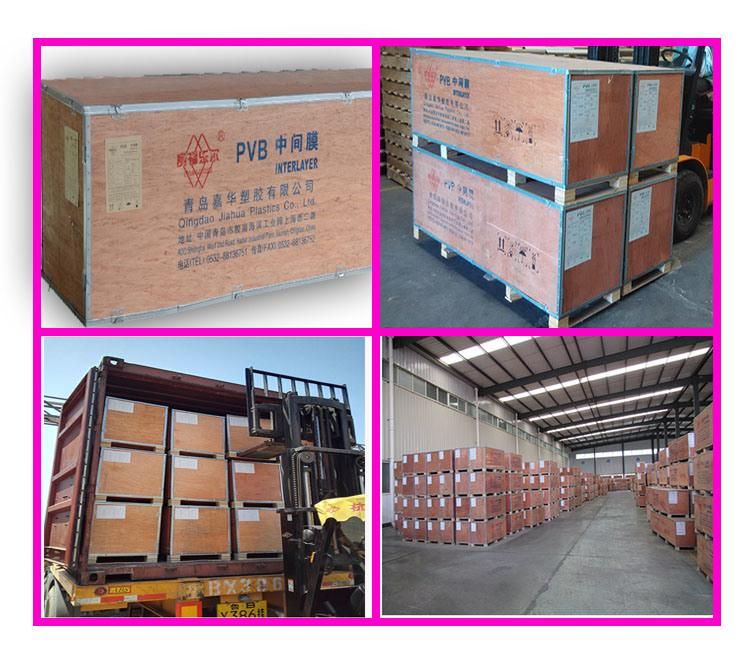

Packing: The pvb film is rolled by insulated with PE film and then wrapping film, cased into an aluminum foil bag by vacuum sealed, and then packing into plywood box or fiber can. (remark: The width is less than 1250mm, which can be packing into fiber can)

Transportation: There should no direct sunlight, drench, and violent shaking during the transportation.

Storage: Be stocked in cleanhere should be quality certificate, packing list in the package. The marks of moisture proof, shock proof and sunlight proof should be labeled.

Automobile grade
Thickness length clear width shade width
0.76mm 200m 600-1600mm 0-230mm
1.52mm 100m 600-1600mm 0-230mm
