• Model NO.：X-803-1
• Volt：12V ,24V
• Model：X-803-1
• Packing Size：1set,CTN(Carton:320*270*150mm)
• Own Weight：5kgs,Set
• Drive Mode：Electric
• Transport Package：Carton(320*270*150mm)
• Specification：ISO 10542-2
• Trademark：Xinder
• Origin：Changzhou Jiangsu Province, China
• HS Code：8708999990
• Production Capacity：1000 Sets Per Month
• Package size per unit product：32.00cm * 27.00cm * 15.00cm
• Gross weight per unit product：5.000kg

Basic Info.

Model NO. X-803-1 Volt 12V /24V Model X-803-1 Packing Size 1set/CTN(Carton:320*270*150mm) Own Weight 5kgs/Set Drive Mode Electric Transport Package Carton(320*270*150mm) Specification ISO 10542-2 Trademark Xinder Origin Changzhou Jiangsu Province, China HS Code 8708999990 Production Capacity 1000 Sets Per Month

Packaging & Delivery

Package size per unit product 32.00cm * 27.00cm * 15.00cm Gross weight per unit product 5.000kg

Product Description

 Product Introduction

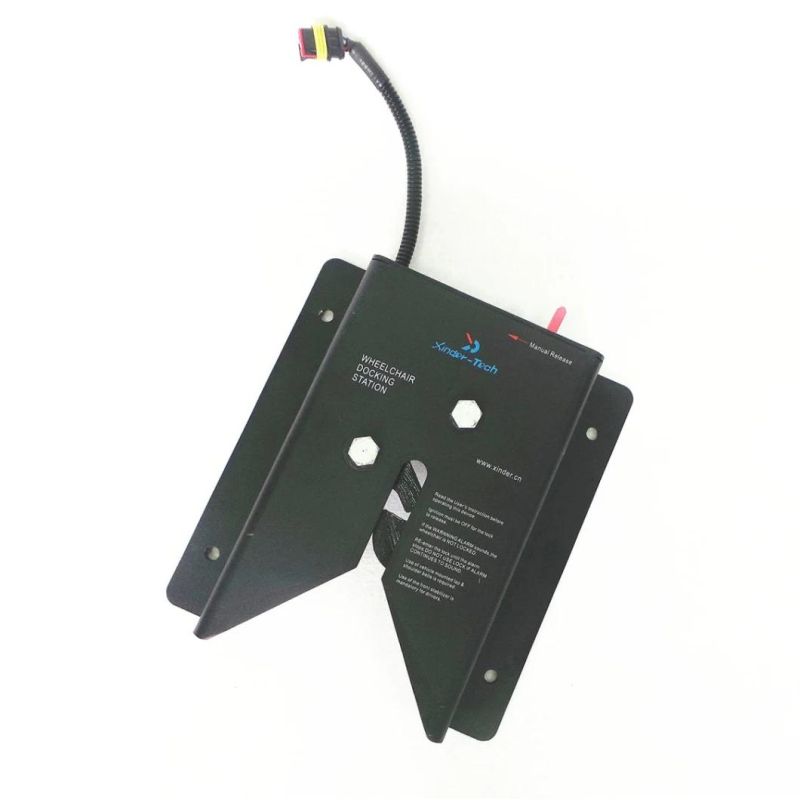

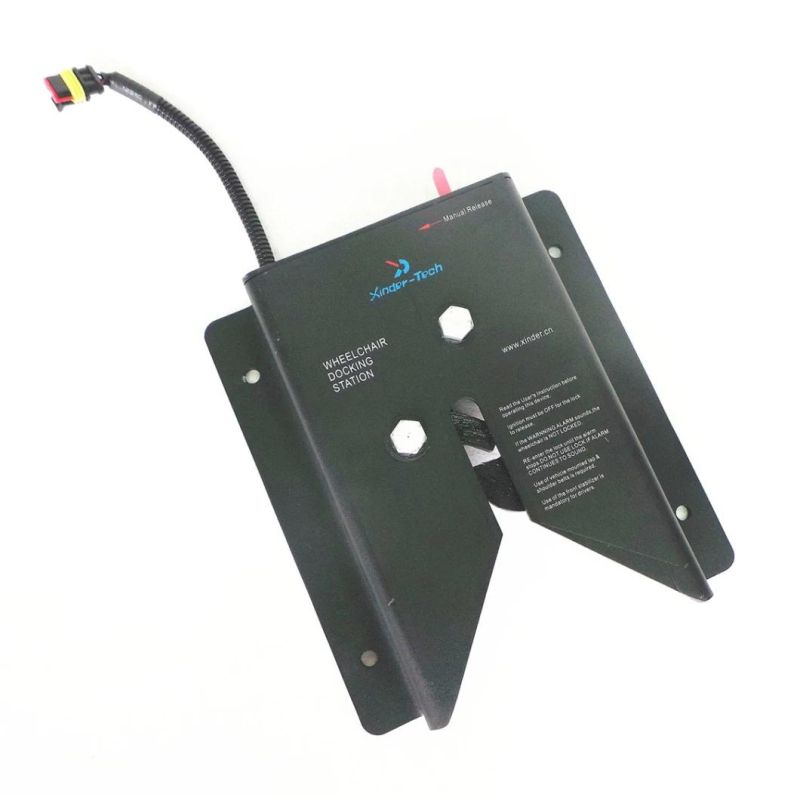

Wheelchair docking system can ensure the safety of wheelchair by a simple way during vehicle running with easy operation. When the wheelchair drives into docking system and the lock pin on wheelchair will insert into lock fixed on floor, it will be locked automatically. If you want to leave docking system, you just need to push release switch to release lock. The advantage of wheelchair docking system is that it needn't safety belt and constrain wheelchair by retractor or safety belt.

CHARACTERISTICS
Ø  Safety, the lock can be only released when ignition is OFF. In case wheelchair passenger be injured when driver push release switch wrongly during running.
Ø  If the wheelchair is not locked, the warning alarm sounds. Only when wheelchair is locked, the warning alarm stops.

PRINCIPLE
This wheelchair docking system has an external switch, mainly relies on electromagnets to achieve work.
When push on the wheelchair, S2 switch off, electromagnet pull-in, Buzzer long call, docking close, S2 reset,S1 close, buzzer close; when release the wheelchair, press the external switch,S1,S2 switch off, electromagnet pull-in, Buzzer long call, docking release, lock release, release the wheelchair, S2 reset.
