• Model NO.：X-801-2
• Own Weight：7kgs,Set
• Optional Accessory：Shoulder Belt
• Transport Package：Carton(320*270*150mm)
• Specification：ISO 10542-2
• Trademark：Xinder
• Origin：Changzhou Jiangsu Province, China
• HS Code：8708999990
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. X-801-2 Own Weight 7kgs/Set Optional Accessory Shoulder Belt Transport Package Carton(320*270*150mm) Specification ISO 10542-2 Trademark Xinder Origin Changzhou Jiangsu Province, China HS Code 8708999990 Production Capacity 1000 Sets Per Month

Product Description

A. Introduction

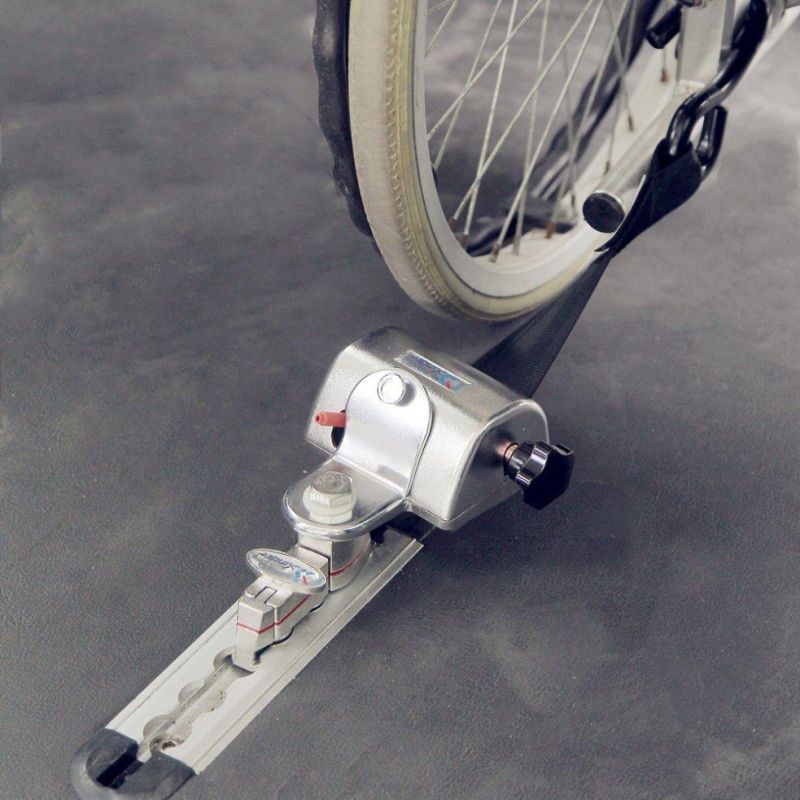

This wheelchair tie-down system is self-adjusting and self-tensioning, offering a quick and flexible solution to securing wheelchairs.

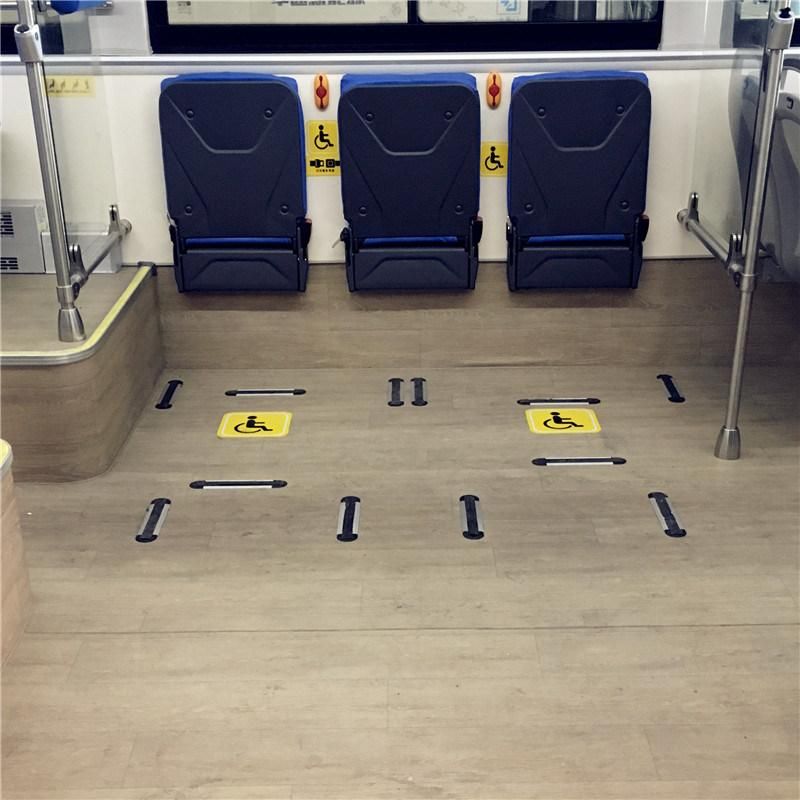

The wheelchair tie-down system is particularly adequate as it is compact and can either be used with floor pockets, bolted to the carriage floor or mounted under a flip seat. Retractable and static lap/ shoulder belts are also provided for passenger comfort and safety. These products have already been exported to many countries, such as Australia, Austria, Spain, Italy, Philippine, Malaysia, New Zealand, Israel and so on.
Wheelchair tie-down system is engineered as a complete securement system. Every component is designed, engineered and tested to work together to provide safe transportation.
Each wheelchair tie-down system is serialized and includes a warranty card to be filled-in with all customer information and returned to XINDER-TECH.
XINDER considers safety as its single most important priority and ensures that all products are thoroughly tested to the industry's highest standards. This wheelchair tie down system has passed the test of ISO 10542-2, report NO is 3129630.50QS.

B. Advantages
Ø There is self-adjusting and self-tensioning equipment which can offer an easy, quick and flexible solution to securing wheelchairs.
Ø Retractable and static lap/ shoulder belts are also provided for passenger comfort and safety.
Ø This tie down system is well designed even a small part, and it's a complete security system.
Ø This wheelchair tie down system has passed the test of ISO 10542-2.

C. PARTS LIST

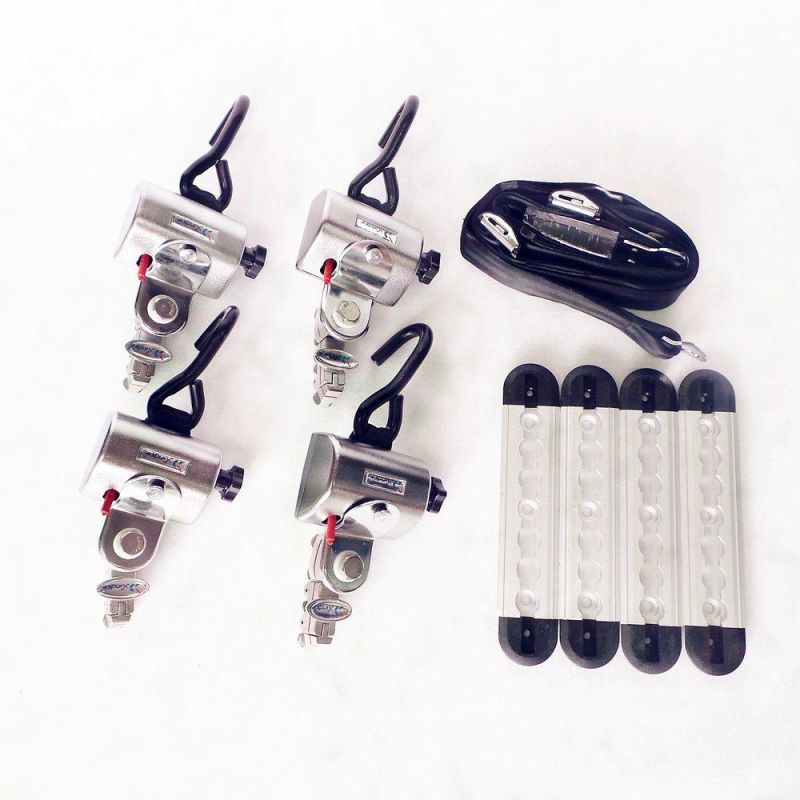

A common wheelchair tie-down system contains:

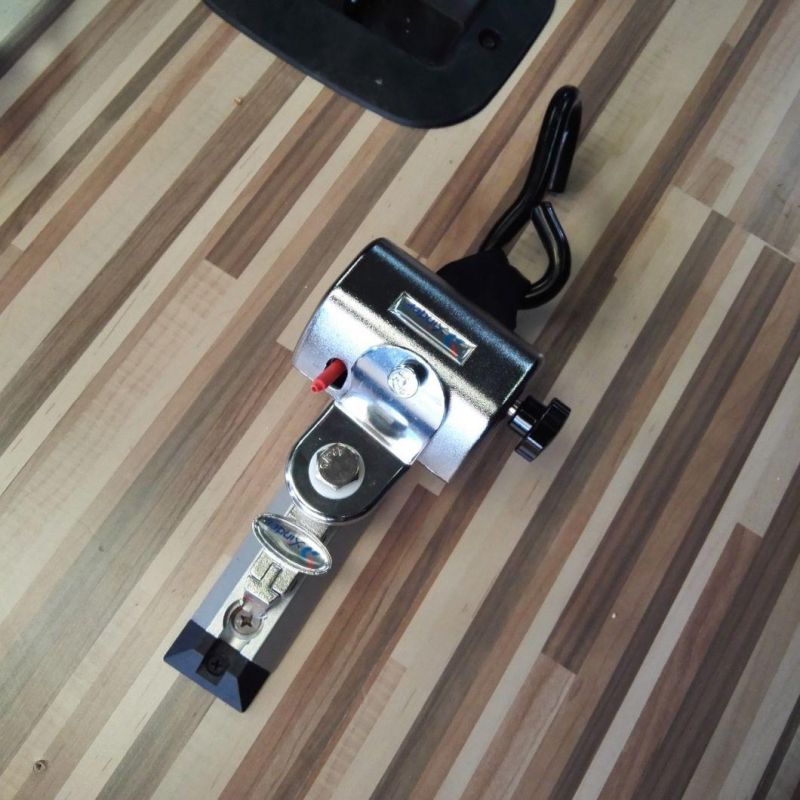

Ø 4 Wheelchair Restraints (Retractors)
Ø 1 Lap belt
Ø 4 Floor Anchorages (surface track)
Ø 8 end of surface track
Ø 1 Warranty card
Ø 1 Operating manual
Ø Option: Shoulder Belt

Note:
The shoulder belt is the option of wheelchair tie down system, which is not in the parts list. If you need it, you should inform us and pay for it.
