• Model NO.：ES-S
• Capacity：250kg
• Own Weight：20kg
• Volt：12V or 24V
• Operation：Electric Control
• Transport Package：Carton or Wooden Case
• Specification：600*300
• Trademark：xinder
• Origin：Changzhou Jiansu
• HS Code：8708999990
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. ES-S Capacity 250kg Own Weight 20kg Volt 12V or 24V Operation Electric Control Transport Package Carton or Wooden Case Specification 600*300 Trademark xinder Origin Changzhou Jiansu HS Code 8708999990 Production Capacity 1000 Sets/Month

Product Description

Introductions:

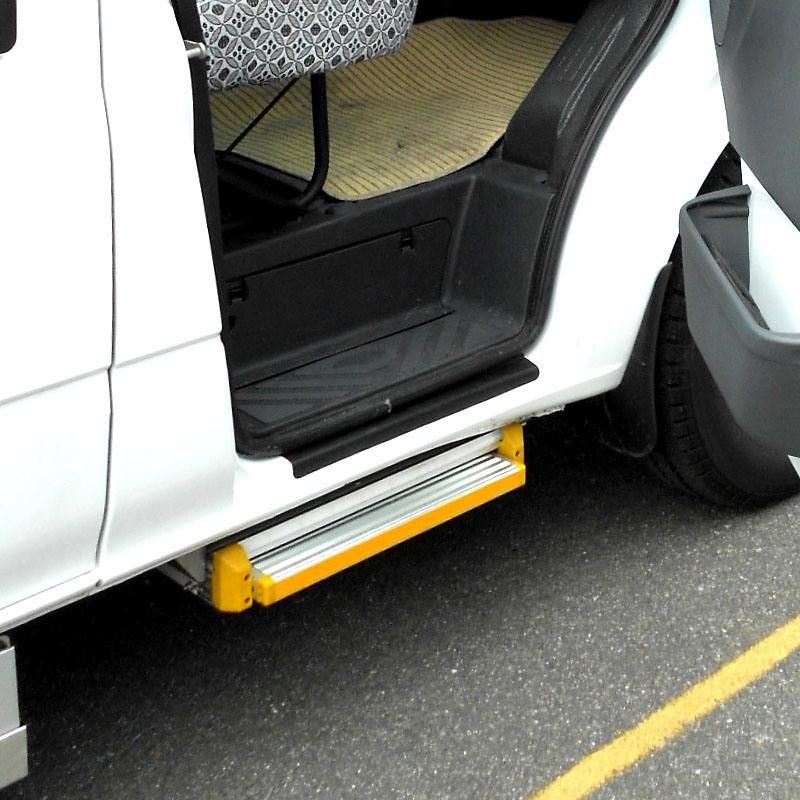

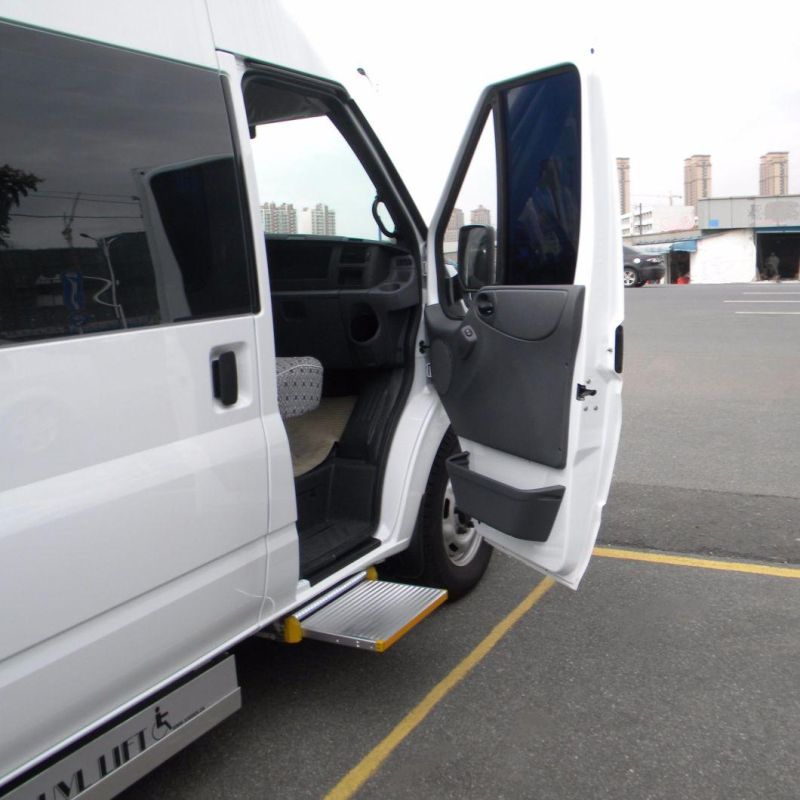

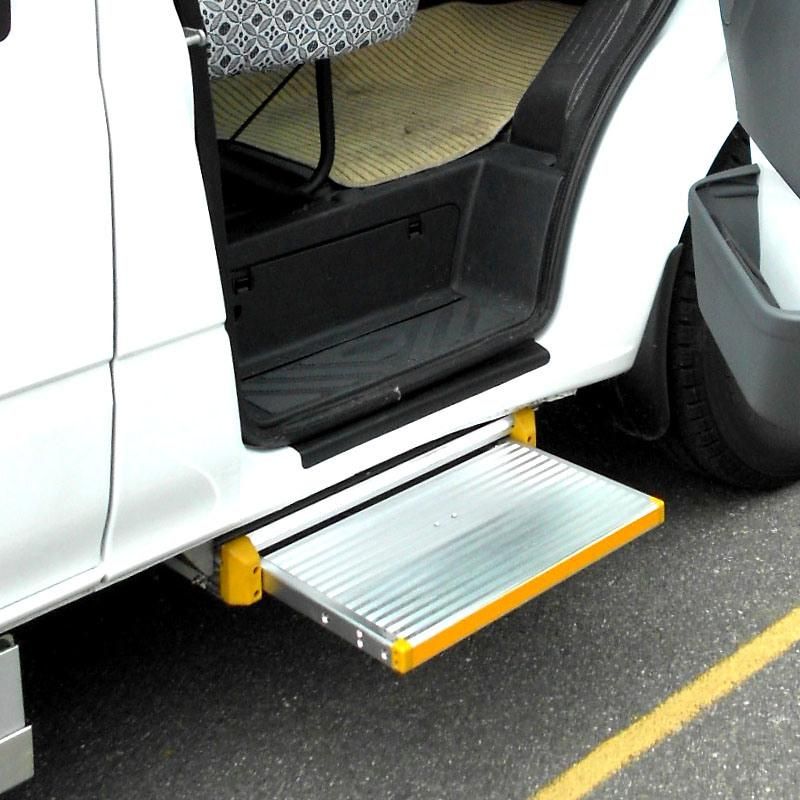

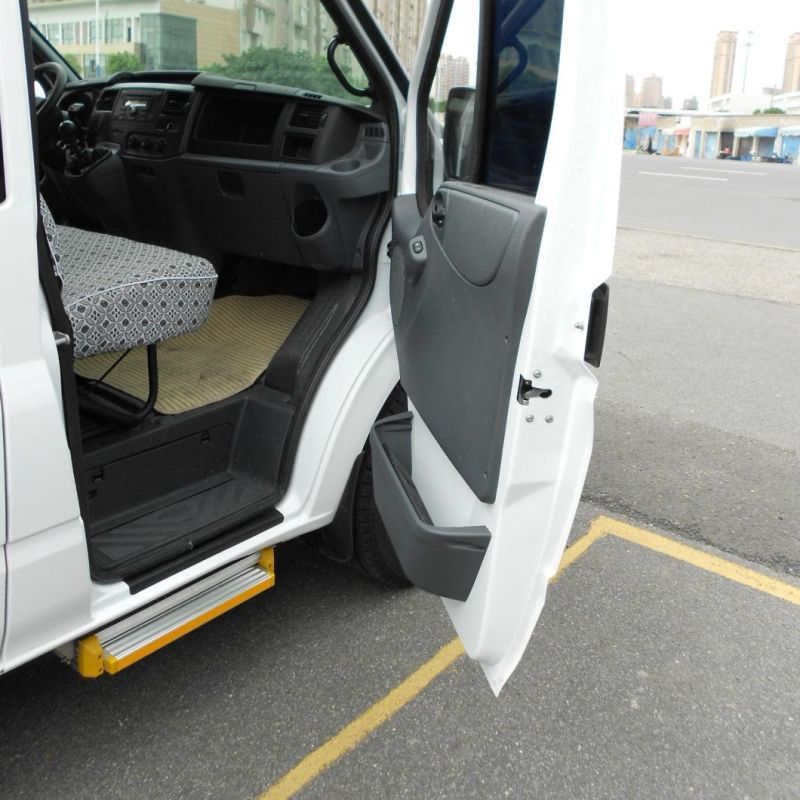

• ES-S series electric sliding step is a kind of cassette steps which can help passengers to get on vehicles easily.

• It is designed to fit on the range of vans, minibuses, taxi, motor homes, ambulances and so on.

• It is electrically operated slide in and slide out cassette step providing safe access to vehicle.

• It's driven by motor, voltage can be 12Vdc or 24Vdc.

• It is available with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.

• The main material is aluminum which is light and has good corrosion resistance.

• It can be operated by a switch or gang controlled by door.

• This step can work steadily, reliably and safely.

• We have different steps with several specifications, which can meet different requirements.



Advantages:

• Manual emergency function;

• door interlock function;

• sensitive edge;

• 15kg sensitive loading function;

• strong pushing function to clear dust;

• auto sleep mode;

• warning in case of improper installation;

• self-protection in case of wrong connection;

• LED and LED cover are equipped as standard

• Test weight is 500kg



Technical Specifications:

• Voltage: 12Vdc or 24Vdc;

• Power: 30W;

• Loading capacity: 250Kg;



Model	Overall dimension when fully extend (A*B)	Platform net size (C*D)	Loading capacity	Test weight	Working woltage	Own weight
ES-S-450	525*717.5 mm	450*302 mm	250 kg	500 kg	12-24 V	19 kg
ES-S-600	675*717.5 mm	600*302 mm	250 kg	500 kg	12-24 V	20 kg
ES-S-750	825*717.5 mm	750*302 mm	250 kg	500 kg	12-24 V	21 kg
ES-S-1000	1075*717.5 mm	1000*302 mm	250 kg	500 kg	12-24 V	22 kg
ES-S-1200	1275*717.5 mm	1200*302 mm	250 kg	500 kg	12-24 V	23 kg
