• Model NO.：S-LIFT-PRO
• Loading：150kg
• Turning Angle：0-113
• Own Weight：80kg
• Volt：12V
• Operation：Remote Control
• Lowering Height：395mm
• Turning Direction：Clockwise or Anti-Clockwise
• Test：R10, EMC, Impact Test
• Transport Package：Carton Case or Wooden
• Specification：80kg
• Trademark：xinder
• Origin：China
• HS Code：870899999
• Production Capacity：500

Basic Info.

Model NO. S-LIFT-PRO Loading 150kg Turning Angle 0-113 Own Weight 80kg Volt 12V Operation Remote Control Lowering Height 395mm Turning Direction Clockwise or Anti-Clockwise Test R10, EMC, Impact Test Transport Package Carton Case or Wooden Specification 80kg Trademark xinder Origin China HS Code 870899999 Production Capacity 500

Product Description

Introduction

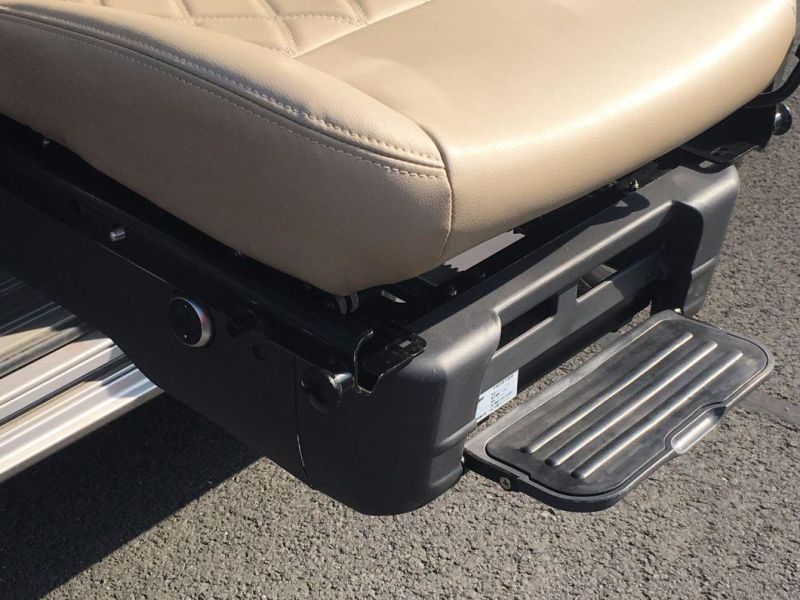

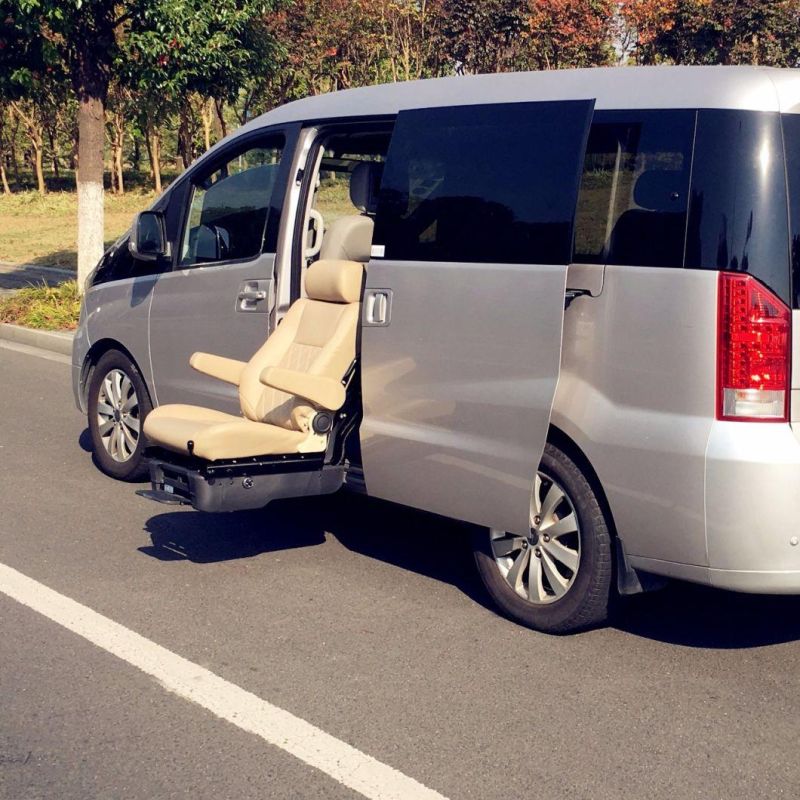

      S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MPV etc.
      It helps the old or the disabled to get seated safely, conveniently and comfortably.
      It can be operated by wired remote control, switches on seat or your mobile phone.
      This seat is programmable by the wired remote-control including programming the movement of lengthwise, rotation and seat backrest angle.
     Turning direction can be clockwise or anti-clockwise.


ADVANTAGES

• manual emergency function;
• door interlock function;
• auto sleep mode with very low quiescent current (<0.3mA);
• can be controlled by wired remote control, switches on seat or your mobile phone;
• pass R17 crash test;
• pass E-MARK EMC test

Technical parameters

• Voltage: 12V dc;
• Power: 120W;
• Loading Capacity: 150Kg;
• Lowering Height (h): 395mm;
• Rotating Angle: 0-113°;
• Quiescent current: ≤0.3mA
• Max current: 25A;

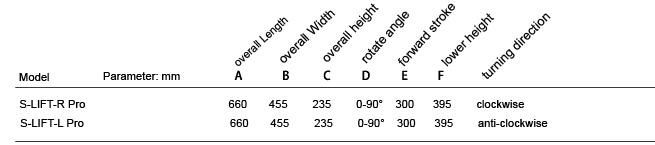

Dimension parameters
